Product Code:ZG01PACK
Yamaha ZG01PACK Game Streaming Audio Mixer Pack
- An all-in-one package that includes the ZG01 game streaming audio mixer and YH-G01 headset for an immersive gaming experience. ZG01: A game streaming audio mixer that provides a highly immersive gaming experience. YH-G01: A studio-quality sound headset.
- Brand:
*only3 item(s) remaining
-
AED 2,352.00
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
Make It Your World
FEATURES
|
|
|
|
|
| Share your surround sound experience with your audience | Simple, intuitive control for gaming and game streaming | Powerful DSP effects to enhance your gaming experience | "ZG Controller" dedicated software | ZG sound processing for ultimate immersion |
| ZG01 | ||
|---|---|---|
| Input Channels | Microphone | 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| HDMI | 1 - Switchable input HDMI 1 or HDMI 2 by button; Audio input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function | |
| USB | 2 - Virtual devices (Voice, Streaming) | |
| Output Channels | PHONES | 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones) |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 1 - Stereo mini (Speaker out) | |
| HDMI | 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal *1: Pass-through | |
| USB | 2 - Virtual devices (Voice, Speaker) | |
| Functions | MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3) | |
| On-board processors | DSP | ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller |
| USB | USB Audio | Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 1.5 A | |
| Power requirements | 5 V DC, 1.5 A | |
| Power consumption | Max. 7.5 W | |
| Dimensions | W | 195 mm (7.7") |
| H | 47.5 mm (1.9") | |
| D | 110 mm (4.3") | |
| Net weight | 0.8 kg (1.8 lbs) | |
| Included Accessories | USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide | |
| Others | Operating Temperature: 0 to + 40 ℃ | |

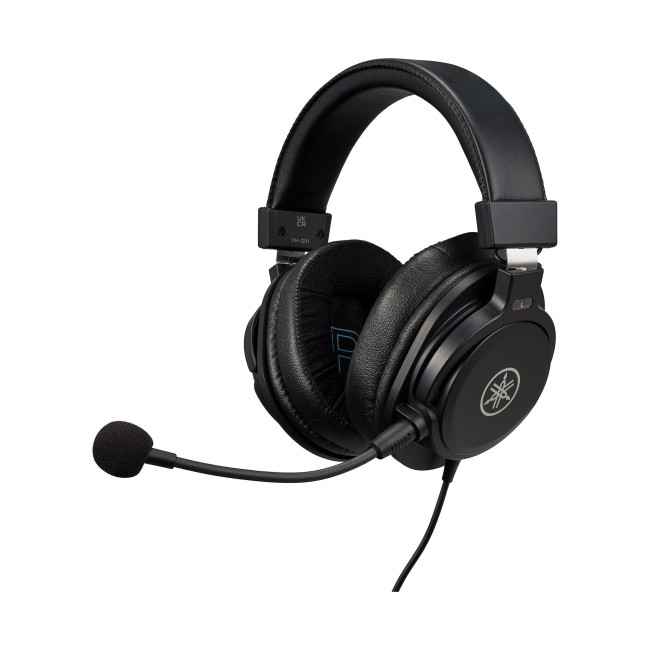

| YH-G01 | ||
|---|---|---|
| Frequency Response | 20 Hz - 20 kHz | |
| Impedance | 35 Ω | |
| Sensitivity (SPL) | 94.4 dB/mW | |
| Microphone | Electret condenser microphone | |
| Connector | 3.5 mm (1/8"), 4-pole stereo mini (TRRS) | |
| Cable | 2 m | |
| Weight | Approx. 240 g (0.5 lbs) (without cable&plug) | |
| Included Accessories | Microphone x 1, Headset audio splitter cable x 1, Owner’s manual | |
