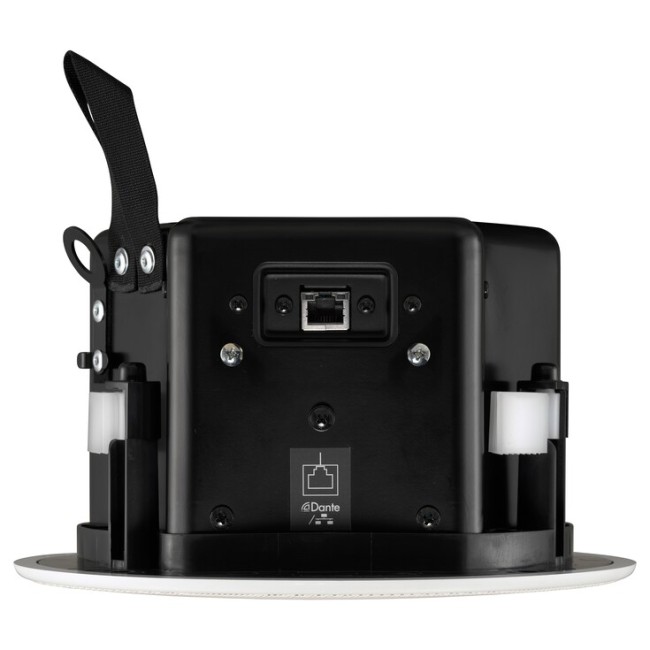

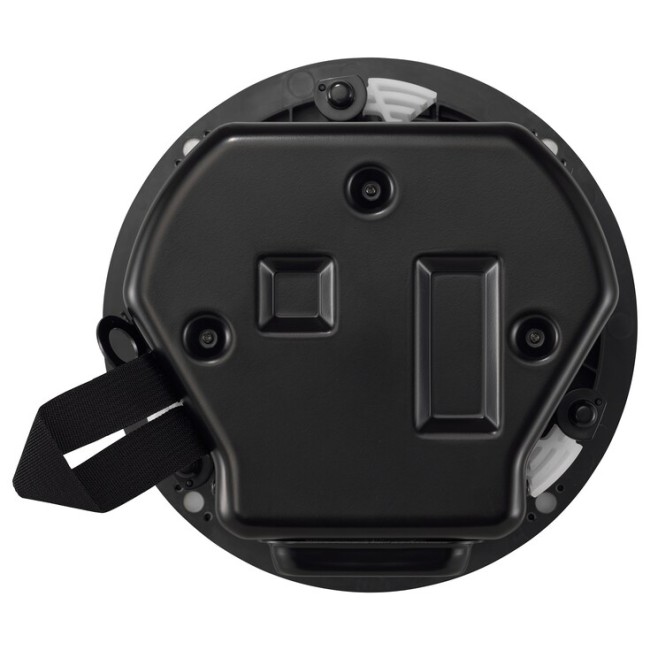

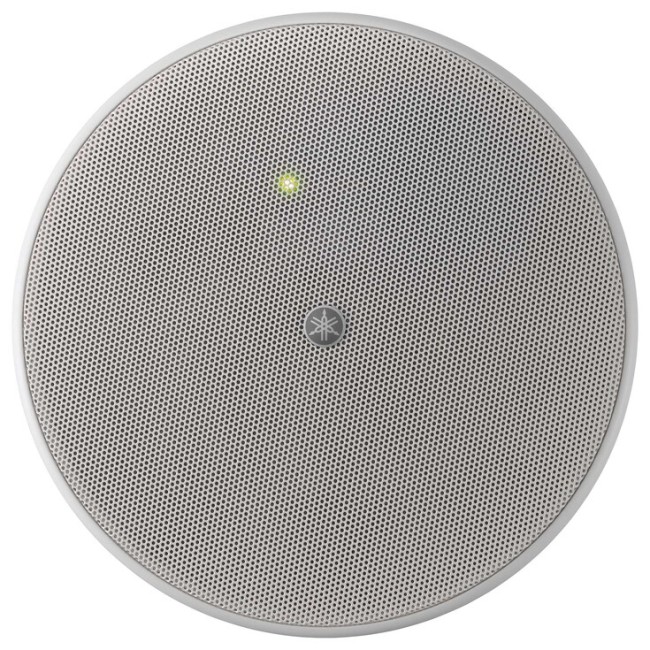

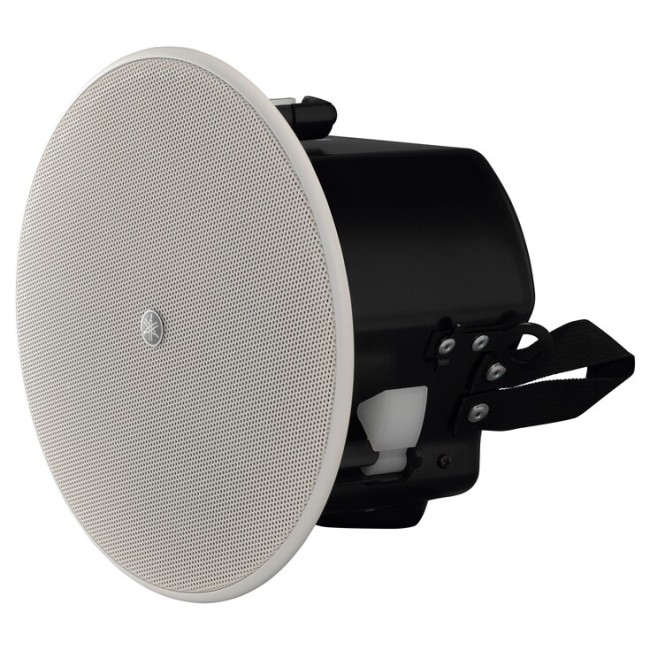

Yamaha VXC2P Dante/PoE Powered Ceiling Speaker
- Dante PoE powered ceiling speaker as a part of ADECIA Solution.
- Brand:
- Product Code:VXC2P
Dante PoE powered ceiling speaker as a part of ADECIA Solution
Simple installation and seamless connectivity with any Dante output device
Creates enhanced flexibility for the ADECIA Solution - Optimised performance when used in conference rooms
A single PoE+ network cable connection avoids complex wiring and enables audio control via Dante
Full-range, bass-reflex, powered speaker
160° horizontal directivity angle for a large coverage area
1.9kg Φ225×D133mm (U.S.A., Canada and Mexico models) , 1.8kg Φ225×D133mm (Othe countries models)
| General specifications | Speaker type | Full-range bass-reflex powered speaker | |
|---|---|---|---|
| Frequency range (-10dB) | 80Hz-20kHz | ||
| Nominal coverage | 160°conical | ||
| Component configuration | 6.4 cm (2.5-inch) full-range driver | ||
| Maximum output level | 97 dB SPL | ||
| Power rating | Dynamic | 15W (PoE+(IEEE802.3at)), 6W (PoE(IEEE802.3af)) | |
| Continuous | 15W (PoE+(IEEE802.3at)), 6W (PoE(IEEE802.3af)) | ||
| Dimensions (Φ x D) | ∅225 × D133 mm (including grille) | ||
| Weight | U.S.A., Canada and Mexico models: 1.9 kg (including grille), Other countries models: 1.8 kg (including grille) | ||
| In Operation | Temperature | 0 °C - 40 °C | |
| Humidity | 30% - 90% (non-condensing) | ||
| Storage | Temperature | −20 °C - 60 °C | |
| Humidity | 20% - 90% (non-condensing) | ||
| Finish | White | ||
| I/O connectors | RJ-45 (PoE/Dante) x1 | ||

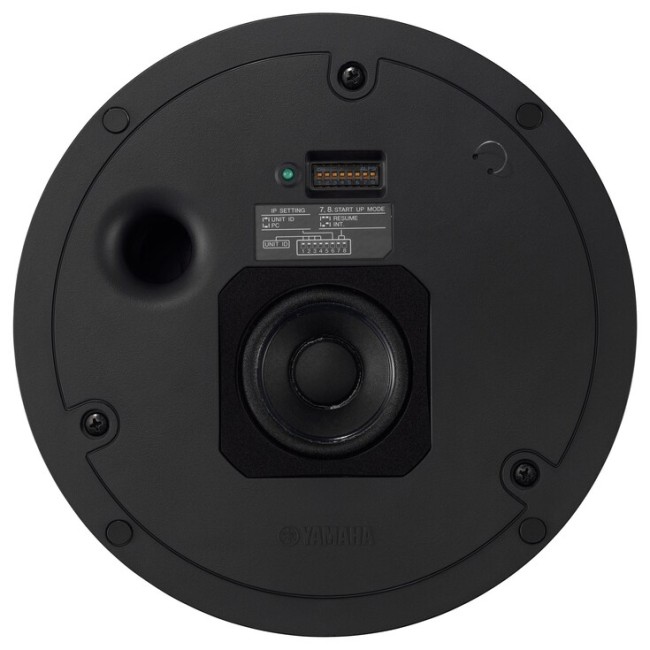

| Controls | 8-switch DIP switch × 1 | ||
| Indicators | Power (front), SYNC (RJ-45), LINK/ACT (RJ-45) | ||
| Protection circuit | Speaker processing | Overheating protection, overpower output protection, overvoltage input protection | |
| Amplifier protection | Overheating protection, short circuit protection, DC detection protection, overvoltage protection, undervoltage protection | ||
| Power supply protection | Overcurrent protection, overheating protection | ||
| Cooling | Natural air cooling | ||
| Power requirements | PoE+ (IEEE 802.3at), PoE (IEEE 802.3af) | ||
| Power consumption | Idle : 4.0W, 1/8 : 6.2 W (PoE+ (IEEE 802.3at)), 4.9 W (PoE (IEEE 802.3af)) | ||
| Maximum power consumption | 25.5 W (PoE+ (IEEE 802.3 at)), 12.95 W (PoE (IEEE 802.3 af)) | ||
| Magnetic shielding | Non-magnetic shielding type | ||
| Dust and water resistant | Non-compliant | ||
| Certificate | VCCI, UL2043 (with Terminal cover) *U.S.A., Canada and Mexico models only | ||
| Signal Processing | EQ/Enhancer, Volume, PEQ, Ducker (noise gate), Mixer, Delay, Speaker EQ (6 band) | ||
| Options | Reinforcing bracket kit AB-C2 | ||
| Accessories | Grille, cutout template, safety wire, Owner’s Manual, Safety Guide, Installation/Dimensional diagrams | ||
