6.5" cone woofer with a 1" balanced dome tweeter
|Frequency range (-10dB)||80Hz - 20kHz||100Hz - 20kHz|
|Components||LF||6,5"(160mm) cone driver||4"(100mm) cone driver|
|HF||1"(25mm) balanced dome tweeter||1"(25mm) balanced dome tweeter|
|Transformer taps||100V||25W, 12.5W, 6.3W||15W, 7.5W, 3.8W|
|70V||25W, 12.5W, 6.3W, 3.1W||15W, 7.5W, 3.8W, 1.9W|
|SPL||Sensitivity (1W; 1m on axis)||90dB SPL||88dB SPL|
|Peak (Calculated)||110dB SPL (100W)||106dB SPL (60W)|
|I/O connectors||2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm)||2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm)|
|Cabinet material||HIPS, 94-HB||HIPS, 94-HB|
|Finish||VS6: Black, VS6W: White||VS4: Black, VS4W: White|
|Flying and mounting hardware||U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)||U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes)|
|Waterproof||IEC60529 IPX3 splash proof rating||IEC60529 IPX3 splash proof rating|
|Dimensions||W||190 mm (7 1/2")||152 mm (6")|
|H||308 mm (12 1/8")||243 mm (9 9/16")|
|D||219 mm (8 5/8")||172 mm (6 3/4")|
|Net weight||2.8kg (6.2lbs)||1.9kg (4.2lbs)|
|Accessories||U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS||U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS|
|Others||Packaged in pair||-|

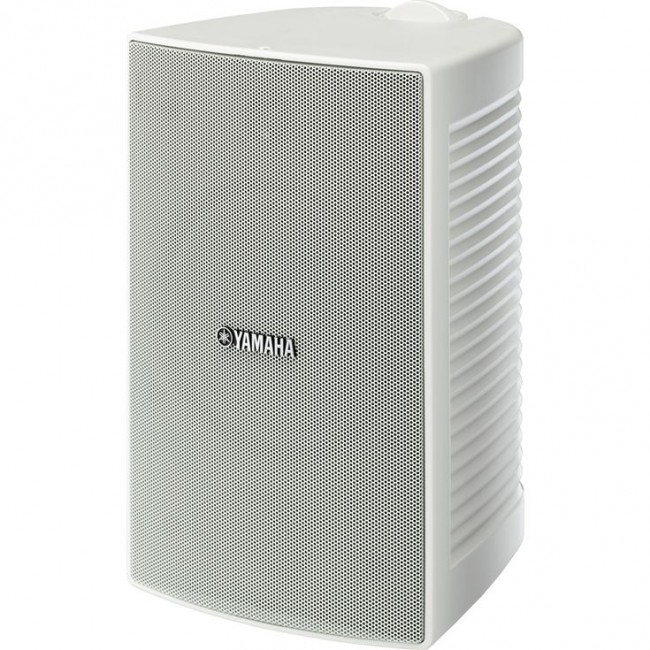

The VS Series' smart and compact construction makes them well suited to locations where interior design is a consideration. Black and white models are available to choose from to match your applications. The speakers also feature waterproof enclosures and transducers which meet IPX3 rating requirements, allowing them to be used outdoors under cover.
Tap selector switch is located on the rear panel to select the power tap of 70V/100V line distributed system or 8Ω sound system. The setting can be easily adjusted by rotating the tap selector with a screwdriver. The terminals and tap selector can be protected using the supplied cover.
The speakers are supplied with dedicated, color-matched brackets for fast and easy installation. The brackets can be set either horizontally or vertically, depending on where you want to mount the speakers.
