Product Code:VC6B

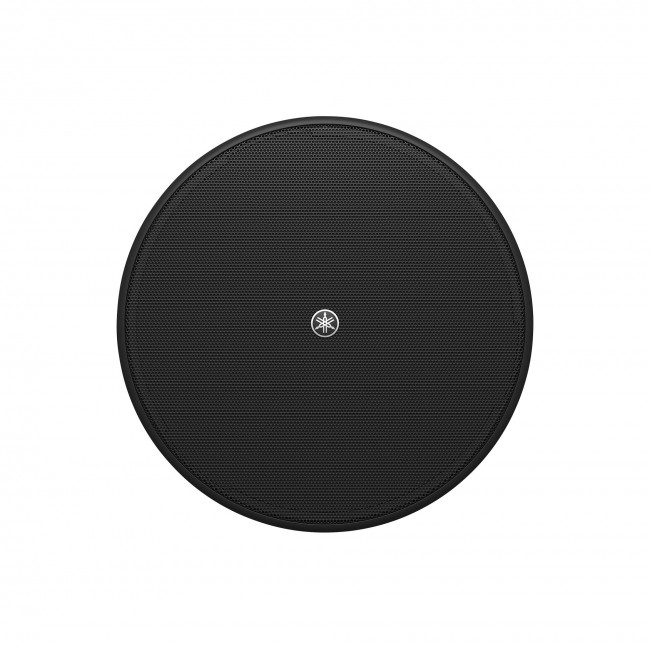

Yamaha VC6B Ceiling Speaker - Black

  • 2-way system with 6.5-inch woofer and 0.8-inch tweeter
  • Brand:
*Out of Stock
  • AED 651.00

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

2-way system with 6.5-inch woofer and 0.8-inch tweeter

  • Engineered for optimum BGM and voice reproduction
  • Low-profile design allows installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
  • Built-in carrying band increases safety during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 3.0 kg (6.6 lbs), Ø286 x D92 mm (Ø11-2/8” x D3-5/8”)
  • Single unit package
VC6B / VC6W
Speaker type 2way Coaxial type, Acoustic Suspension
Frequency range (-10dB) 104 Hz – 20 kHz (Half-space: 2π)
Nominal coverage 120° conical (Half-space: 2π)
Components LF 6.5” Cone
HF 0.8" Soft dome
Power rating NOISE 25 W
PGM 50 W
PEAK 100 W
Nominal impedance 16 Ω
Transformer taps 100V 12 W, 6 W, 3 W
70V 12 W, 6 W, 3 W, 1.5 W
SPL Sensitivity (1W; 1m on axis) 89 dB SPL (Half-space:2π)
Peak (Calculated) 109 dB SPL (Calculated, 1 m)
I/O connectors Euroblock (4 pin) ×1 (input: +/ - , loop - thru: +/ - ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq)
Protection circuit Load protection Full-range power limiting to protect network and transducers
Finish VC6B: Black (approx. Munsell N3), VC6W: White (approx. Munsell N9.3)
Dimensions Diameter 286 mm (11 - 2/8")
D 106 mm (4 - 1/8")
Net weight 3.3 kg (7.3 lbs)
Cutout size Ø247 mm (Ø9 - 3/4")
Required ceiling board thickness 2 mm – 37 mm
Accessories C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner's Manual
Packaging Single package
Certificate UL1480, NFPA70, CE, EAC, RoHS
Options -
