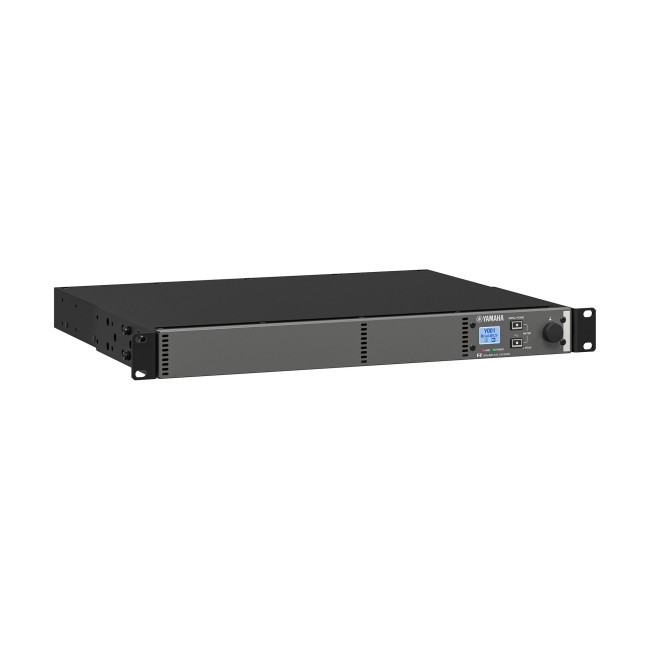

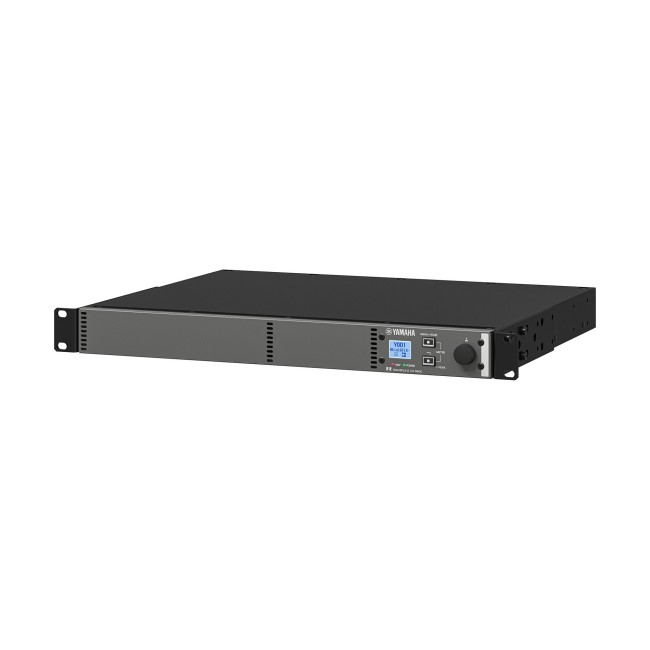

Yamaha RUio16FLX-D 16-channel Dante I/O Rack

The Dante-compatible RUio16FLX-D provides 16 channels of either analog input, analog output, or AES/EBU output so you can easily configure systems for use with Yamaha digital mixers and processors. Source channels can be selected in groups of two, and flexible support is provided for I/O expansion.

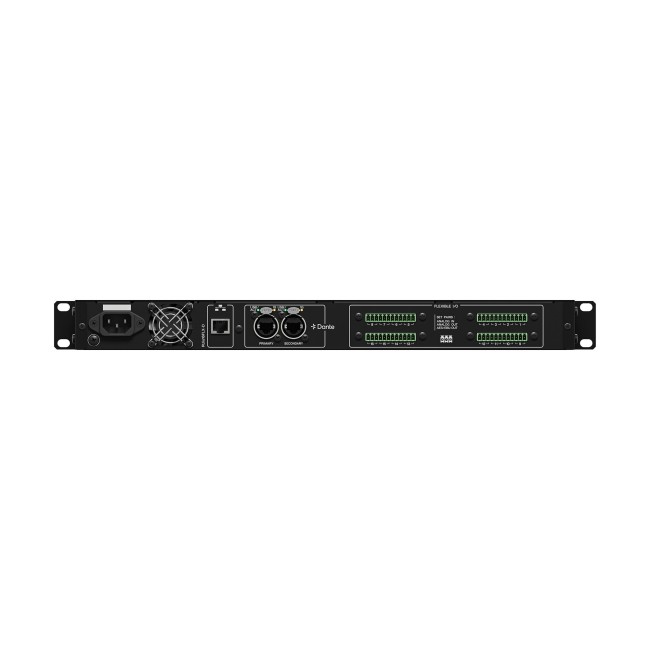

• I/O: 16 channels of flexible I/O with Euroblock connectors (analog input, analog output, or AES/EBU output)
• Dante: 16 receive channels, 16 transmit channels
• Local display and control of gain and phantom power settings
• Power consumption: 45 W
• Dimensions (W x H x D): 480 × 44 × 369 mm (18.9” x 1.7” x 14.5”)
• Net weight: 4.0 kg (8.8 lb)

FEATURES

Flexibility to handle any change

When working with the RUio16FLX-D, you can freely select and combine 16 I/O channels from analog in, analog out, and AES/EBU out. Sources can be selected in two-channel groups, so each unit can handle three sources simultaneously. Despite fitting into a 1U chassis, this compact I/O box is the perfect fit for a great many applications, particularly when additional input or output channels may be needed in the future.

Port Config for easy setting

Using the Port Config menu from the built-in display on the RUio16FLX-D, you can easily change the unit’s I/O setup.

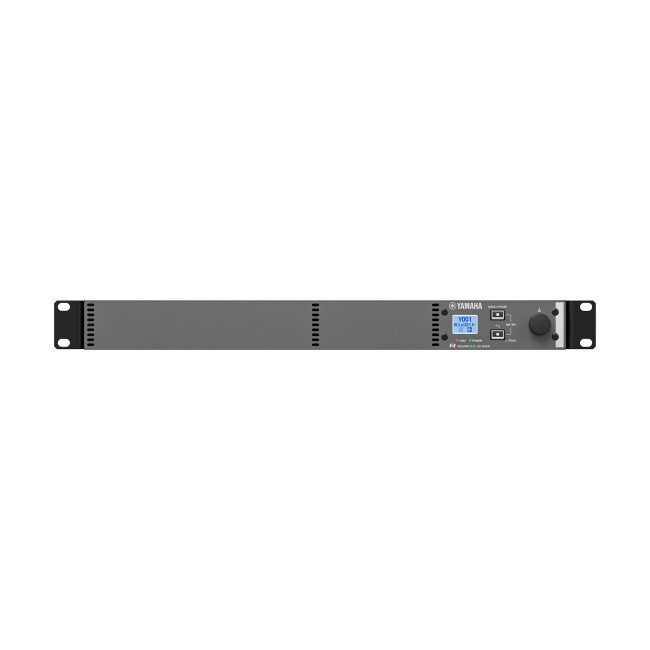

Check and set parameters right away with the onboard display

Use the built-in mini-LCD screen to conveniently check and set Dante and input/output parameters directly—no need to connect to a mixing console or PC. And in the event of an error, the unit's keys and LEDs light up so you can take action with a minimum of delay.

Dante-enabled for flexible system design

Audinate’s Dante network protocol offers unrivalled flexibility in system setup and configuration, and gives you the freedom to assemble almost any combination of devices to suit your needs and physically locate them wherever you find most convenient. As if that weren’t enough, Dante also features built-in redundancy to keep your system operating even if a problem were to occur.

Effortless control from Yamaha consoles and processors

With your RUio16FLX-D connected via Dante to Yamaha digital mixing consoles and other audio processors, managing patching and I/O parameters is simple. When connected to a mixing console, the stagebox can be mounted as a Dante device, allowing you to remotely control HA gain and other parameters. Meanwhile, when connected to a processor, parameters can be controlled using our ProVisionaire Design application.

Use anywhere with R-Remote

Also compatible with the R Remote control app for Yamaha I/O products, the RUio16FLX-D can be used as a lightweight, compact Dante interface with R Remote controlling HA gain and other parameters, for recording and other applications where a mixing desk is not needed.

Special port for dedicated control within huge setups

The RUio16FLX-D lets you set a dedicated network address for reliable control even when part of a large system. In other words, you can set up a dependable control system without affecting the Dante network.

A solid foundation for inspirational live sound

More than just compact and portable, the RUio16FLX-D also inherits Yamaha's time-honored tradition of staying true to the real sound, just like the RPio622/222 and Rio3224-D3/1608-D3 before it. This stagebox has been designed and built to capture the stage sound in all its glory and deliver to the mixing console pure.
