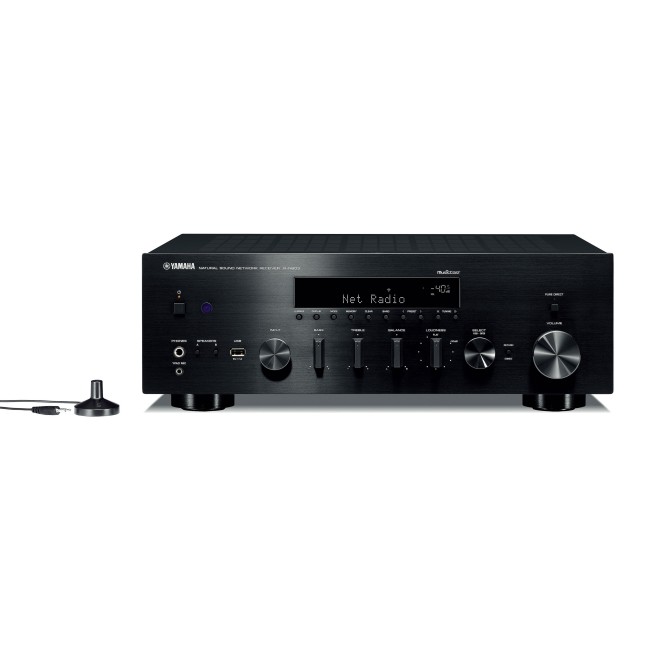

The elegant design of the R-N803 is equally matched with powerful brainy internals – a full suite of modern technological and connectivity features make the receiver even more captivating and result in a receiver worthy to take home to your Wi-Fi® and Hi-Fi.
- Beautiful and elegant front aluminum face with two channels of 145 W high-power output (0.019% THD)
- Phono input terminals for turntables and optical/coaxial audio inputs for TV
- Wireless Direct, Bluetooth®, AirPlay®, and Wi-Fi to access to your music library, Pandora®, Spotify, SiriusXM Internet Radio, TIDAL and Deezer
- YPAO™ – Yamaha’s acoustic optimizer with Precision EQ, Volume, and Reflected Sound Control
- Pure Direct and ToP-ART design to faithfully preserve the integrity of your music
- DSD 5.6 MHz, FLAC / WAV / AIFF 192 kHz / 24-bit, Apple® Lossless 96 kHz / 24-bit playback
- Add audio in up to 9 additional rooms with MusicCast
- Amazon Alexa and Google Assistant voice control compatibility
| R-N803 | ||
|---|---|---|
| Network section | DLNA | Version 1.5 |
| File Format | MP3, WMA, MPEG4 AAC, WAV, FLAC, AIFF, ALAC, DSD | |
| AirPlay | Yes | |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W | |
| Maximum Power(8 ohms, 1 kHz, 10% THD) | 145 W + 145 W | |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 140 / 170 / 220 / 290 W | |
| Frequency Response | 0 ± 0.5 dB / 0 ± 1.0 dB | |
| Signal-to-Noise Ratio (CD) | 100 dB (Pure Direct on, 200 mV) | |
| Audio In / Out | 10 / 2 | |
| Digital Input | Yes (Optical / Coaxial) | |
| USB Input | Yes | |
| Subwoofer Out | Yes | |
| Control (Trigger) Out | Yes | |
| FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) | 3 µV (20.8 dBf) | |
| FM Signal-to-Noise Ratio (Mono/Stereo) | 69 dB / 67 dB | |
| Pure Direct | Yes | |
| ToP-ART | Yes | |
| Standby Power Consumption | 0.1 W (Network standby on / Wi-Fi connection; 1.8 W) | |
| Dimensions (W x H x D) | 435 x 151 x 392 mm (with antenna up: 435 x 215 x 392 mm); 17-1/8” x 6” x 15-7/16” (with antenna up: 17-1/8” x 8-1/2” x 15-7/16”) | |
| Weight | 11 kg; 24.3 lbs. | |
| Network section | Wi-Fi | Yes (with Wireless Direct) |
| Bluetooth | Yes (SBC / AAC) | |
| Minimum RMS Output Power | 100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.019% THD) | |
| Phono Input | Yes | |
| Ethernet | Yes | |
| Headphone Out | Yes | |
