Product Code:RMTTWHITE

Yamaha RM-TT Tabletop Array Microphone - White

  • Tabletop array microphone that provides a comfortable sound environment without any settings
  • Brand:
*only1 item(s) remaining
  • AED 2,966.25

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

Tabletop array microphone that provides a comfortable sound environment without any settings

  • Supports network audio standard "Dante"
  • Automatic speaker tracking allows for flexible room layout and participant positioning
  • 6 types of directivity can be selected according to the meeting format and the number of participants via Web UI
  • Achieves comfortable sound quality by making full use of adaptive echo canceller, auto gain control, noise reduction, and reverberation suppression
  • When using auto voice tracking, the RM-CR automatically selects the microphone that is the nearest to speaker to pick up sound
  • Dante audio / control reception and PoE power are connected through a single network cable
  • With optional parts, microphones can be fixed on tables
RM-TT
Dimensions W140 mm × D140 mm × H41.5 mm
Weight 310 g
Power Requirements PoE (IEEE 802.3af), DC 48 V
Power consumption (max) 4.5 W
In Operation Temperature 0~40 ℃
Humidity 30 %~90 % (No condensation)
Storage Temperature -20~60 ℃
Humidity 20 %~90 % (No condensation)
Indicator Mute Indicator (Mute/Unmute), Status Indicator (Ring), Network Port Indicator
Maximum Device Number with RM-CR 8 (Connection with other than RM-CR is not limited to this device)
Accessories Installation Manual, Table-top mounting adapter, 3 x Screw for mounting, 3 x spacer
Ether1 Dante Audio/Dante Control, Remote Control, WebUI, PoE
Cable Requirements Cat 5e or higher (STP)
Audio I/O Dante 1in x 2out, In1=AEC reference signal/Out1=output of beam mix, Out2= output of beam mix (simple processed)
Sampling Rate 48 kHz
Bit Depth 24 bit
Latency 57 [ms] (including signal processing)
Frequency Response 160 Hz – 16 kHz (-10 dB)
Maximum Input Level of SPL (0dBFS) 106.8 dB SPL
Self Noise 6.3 dBA SPL
SN Ratio (Ref. 94 dB SPL at 1 kHz) 87.7 dBA
Sensitivity -12.8 dBFS/Pa
Dynamic Range 100.5 dBA
Signal Processing Auto voice tracking, AEC, NR, Dereverberation, Auto Mixer, AGC, User PEQ, Output Gain, Selectable polar pattern: Cardioid, Hyper Cardioid, Super Cardioid Omni, Bi-Directional, Toroid

Auto Voice Tracking (automatic speaker tracking function) that constantly scan, detect, and track simultaneous speakers without missing a word

Auto Voice Tracking is enabled by mounting 4 microphone elements on each microphone to automatically track the speaker and detect the voice only participant speaking.

Auto Voice Tracking + 6 types of microphone directivity can be used depending on the situation.

The ease of microphone install and advanced pickup allows flexibility for social distancing and layout changes thoughout the space. Six microphone direction options can customize the solution to your use case and participant count: omnidirectional, toroidal, cardioid, super-cardioid, hyper-cardioid, bidirectional.

Omnidirectional

Toroidal

Cardioid

Super-Cardioid

Hyper-Cardioid

Bidirectional

When using Auto Voice Tracking, RM-CR automatically selects the closest microphone to the speaker to pick up sound among multiple RM-TTs

Each RM-TT microphone pod is equipped with Auto Voice Tracking (automatic speaker tracking function) in each microphone, allowing for flexible room layout and participant positioning. When the speaker is among multiple RM-TTs, RM-CR automatically selects the closest microphone to the speaker to pick up sound, enabling a highly clear voice to the far end.

When using Auto Voice Tracking, RM-CR automatically selects the closest microphone to the speaker to pick up sound among multiple RM-TTs When using Auto Voice Tracking, RM-CR automatically selects the closest microphone to the speaker to pick up sound among multiple RM-TTs When using Auto Voice Tracking, RM-CR automatically selects the closest microphone to the speaker to pick up sound among multiple RM-TTs

Achieves comfortable sound quality by making full use of Auto Voice Tracking, Adaptive Echo Canceller, Auto Gain Control, Noise Reduction, and Reverberation Suppression

The microphone itself is equipped with Yamaha's unique audio signal processing such as Auto Voice Tracking, Adaptive Echo Canceller, Auto Gain Control, Noise Reduction, and Reverberation Suppression to deliver high-quality sound.

Standard support for Dante network audio, enabling Dante audio/control signals and PoE power supply with a single network cable

Compatible with the Dante audio network standard, enabling audio/control signals to be transmitted via a single network cable. Since the power supply is PoE-driven, not only the Dante audio signal and control signal but also the power supply can be supplied from the network switch via the same cable.

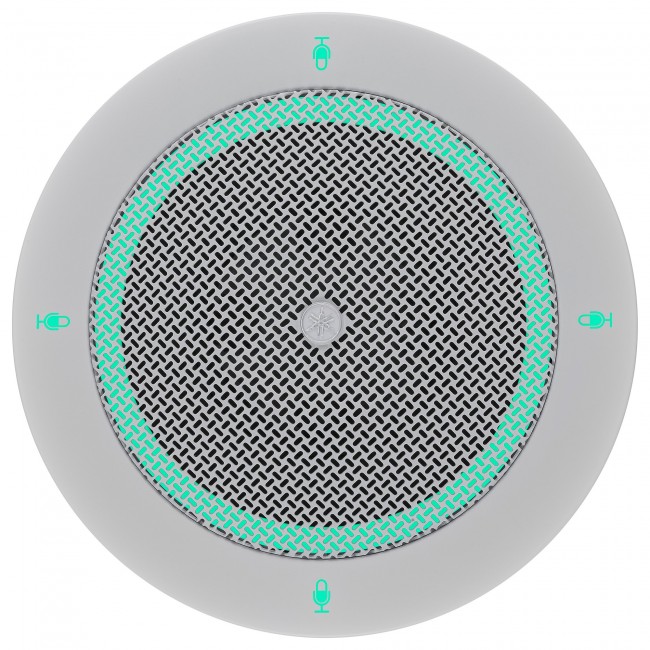

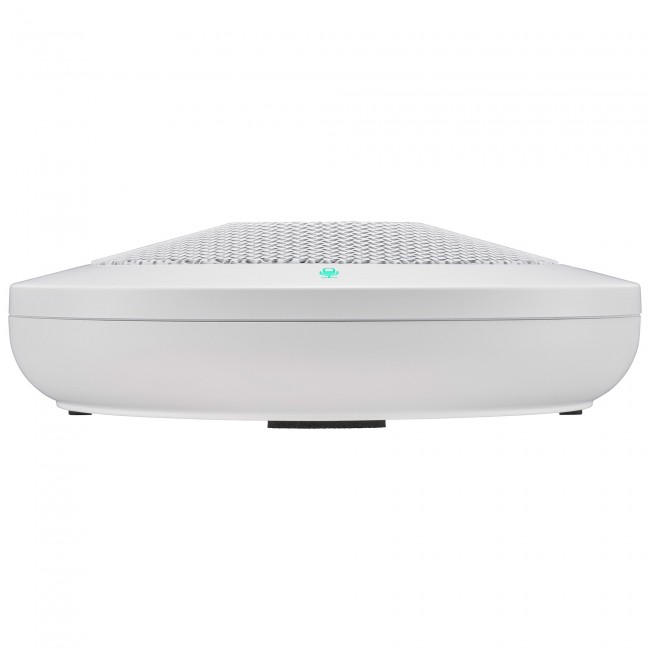

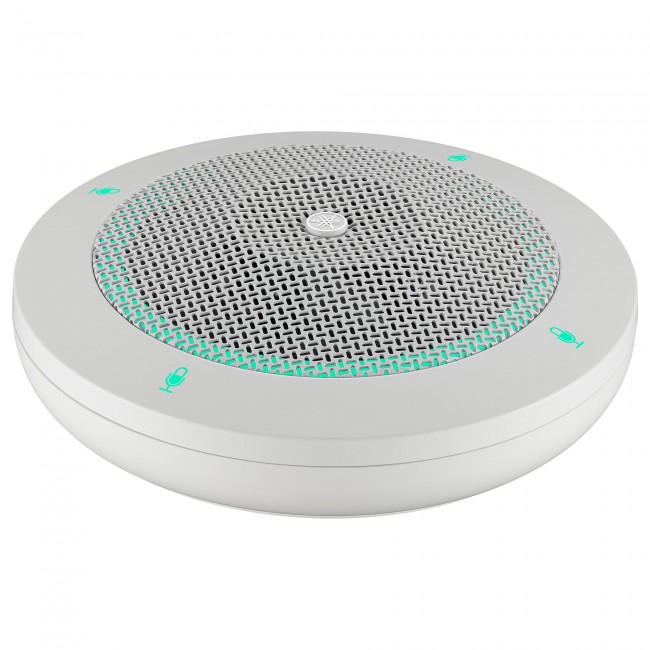

External View
