Product Code:PSRE483
Next Level Artistic Expression

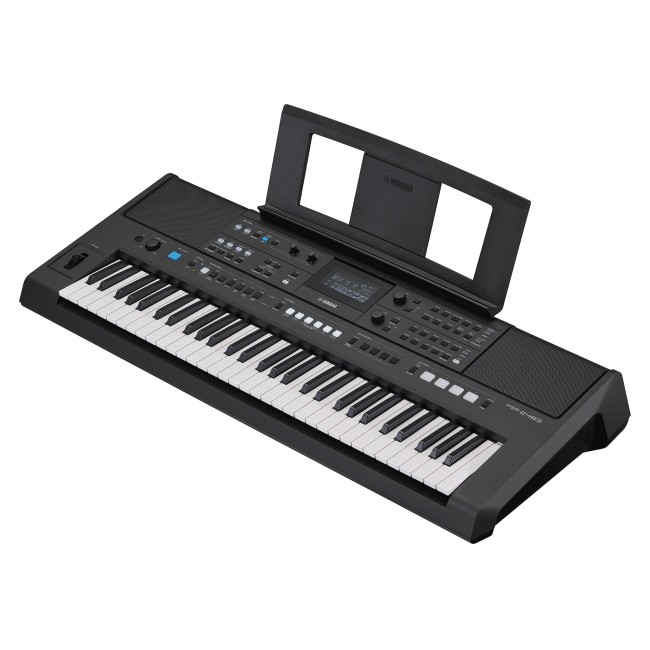

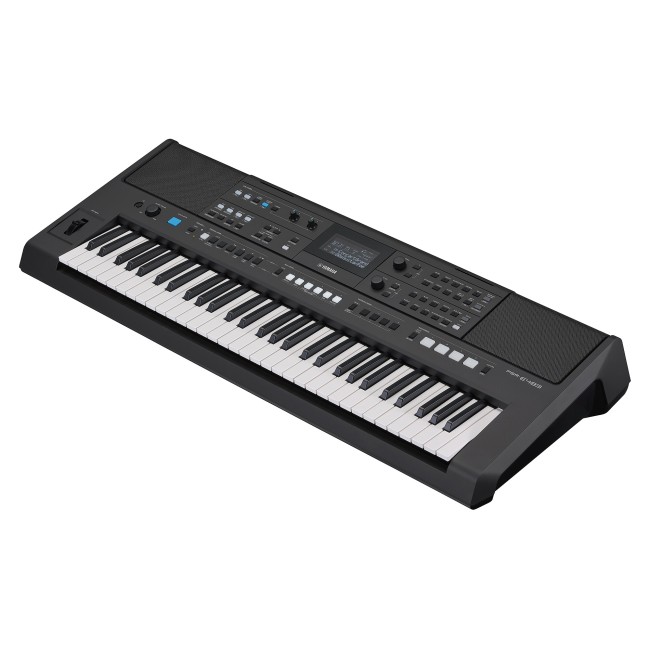

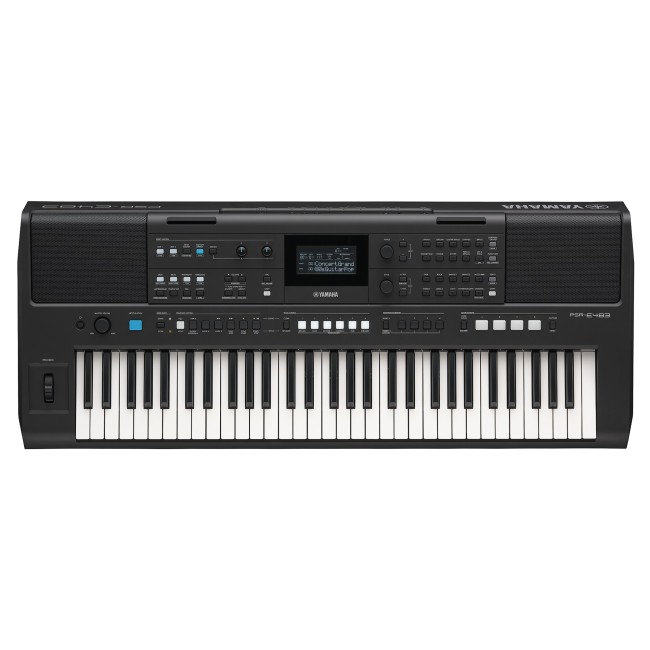

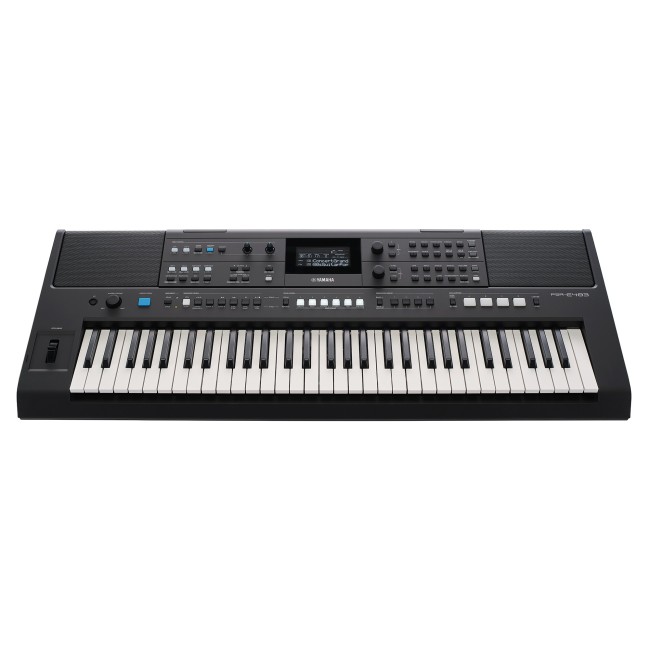

Designed for at-home players and live performers, the Yamaha PSR-E483 is a portable 61-key keyboard designed to help bring your creativity to life. Packed with 860 expressive Voices, 345 preset Styles, as well as advanced controls like Live Control Knobs and Pitch Bend, the PSR-E483 is ready to inspire you.
FEATURES
WIDE COVERAGE SOUNDS
Play Any Song, Any Genre, Any Time.
With a massive range of Voices and Style presets, play any song or genre – even requests from the audience – with the touch of button. Featuring 860 different Voices, including electric piano, organ, vibraphone and strings, and 345 preset Styles, unleash your creativity onstage or at home. Plus, the PSR-E483 supports music across the globe with a variety of Voices for local music.
VOICES
The PSR-E483 expands on previous generations with an increased internal storage capacity that allows Yamaha to provide more, higher-resolution instrument Voices. Enjoy 860 realistic, expressive instrument sounds from here and around the world with pro-level sound quality.
STYLES
Choose from 345 automatic accompaniment Styles including rock, dance, and jazz as well a wide range of musical genres from around the world. Experience the thrill of playing in your very own band as the Styles respond to your left hand with just the right rhythms, bass, and chords.
WORLD CONTENT
Piano. Organ. Igbo Drum. All included. The PSR-E483 is designed to support music across the globe. From Afrobeats featuring Igbo instruments, to reed instruments and percussion for that distinctly South American sound, to traditional organ Voices for worship, the PSR-E483 is designed for your local sound.
SUPER ARTICULATION LITE
SUPER ARTICULATION LITE Voice faithfully recreates the sounds of non-keyboard instrument, like the scratch of the strings of a guitar or the performer’s breath when playing a wind instrument.
DSP EFFECTS
Take your music to the next level with the powerful DSP effects engine, featuring 41 DSP1 and 12 DSP2 effects. These effects transform instrument Voices by enhancing tone, adding texture, and delivering expressive, realistic sound, as well as provide layering and accompaniment parts for more sonic flexibility. With a single press of the DSP button, toggle effects on or off instantly, perfect for dynamic performance control.
MIDI SONG TO STYLE APP
Transform MIDI Files into Your Personalized Style.
Automatically generate style data from your existing MIDI song library. Easily change standard MIDI files into dynamic, full-fledged Styles, complete with intros, endings, and transitions.
QUICK SAMPLING
Get the Music Started Quickly.
Explore your creativity with the Quick Sampling function, delivering the ability to record a short musical phrase and assign it to the Quick Sampling button. With the tap of the SYNC button Quick Sampling playback will wait until the next bar of the Style to begin, ensuring your sample starts at the exact right time.
LOOPER FUNCTION
Unleash Your Creativity.
Free up your hands during performances, practicing complex pieces, or building song sections by recording and looping chord progressions, drums patterns and musical phrases.
AUTO CHORD PLAY
Your Home, Your Stage - Play Without Limits.
Expand your performance range with the convenient Auto Chord Play function with customizable chord progressions, which automatically plays back the predetermined chord progression while you’re playing a Style, freeing you up to solo or experiment – without worrying about playing the changes.
CONNECTIVITY & OUTPUT
A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.
・ USB TO DEVICE: Store/Load various data to/from USB devices.
・ USB TO HOST (USB-C): Send/Receive audio and MIDI data to/from computers and smart devices.
・ Individual L/R output: Connect to PA systems and studio equipment.
・ Foot Switch: Use a sustain pedal to control sounds.
| Size / Weight | |
|---|---|
| Dimensions |
Width: 992 mm (39-1/16”) Height: 136 mm (5-3/8”) Depth: 404 mm (15-7/8”) |
| Weight | 7.0 kg (15 lb, 7 oz) (not including batteries) |
| Packing Box | |
| Dimensions |
Width: 1068 mm (42-1/16") Height: 216 mm (8-1/2") Depth: 500 mm (19-11/16") |
| Control Interface | |
| Keyboard |
Number of Keys: 61 Type: Organ-Style Touch Response: Yes (Soft, Medium, Hard, Off) |
| Display | |
| Type | LCD |
| Backlight | Yes |
| Language | English |
| Panel | |
| Language | English |
| Other Controllers | |
| Controllers |
Pitch Bend: Yes Modulation: No Art. Switches: Yes Control Knobs: 2 |
| Voices | |
| Tone Generation | AWM Stereo Sampling |
| Polyphony | 64 |
| Preset Voices | 860 (322 Voices + 40 Drum/SFX Kits + 40 Arpeggio Voices + 458 XGlite Voices) |
| Featured Voices | 15 S.Art Lite Voices |
| Compatibility | GM, XGlite |
| Accompaniment Styles | |
| Preset Styles | 345 |
| Fingering | Multi Finger, Smart Chord |
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF |
| One Touch Setting | Yes |
| Auto Chord Play | 100 Chord Progressions + 10 USER Chord Progressions |
| Expansion Style | 10 |
| Style File Format | SFF |
| Effects | |
| DSP | DSP1: 41 types + DSP2: 12 types |
| Motion Effect | 57 types |
| Reverb | 15 types |
| Chorus | 7 types |
| Master EQ | 5 types |
| Functions | |
| Performance |
Dual/Layers: Yes Split: Yes Melody Suppressor: Yes |
| Harmony / Echo | 26 types |
| Arpeggio | 164 types |
| Songs & Recording | |
| Preset Songs | 2 |
| Recording |
Number of Songs: 10 Tracks: 6 (5 Melody + 1 Style) Data Capacity: Approx. 19,000 notes |
| Playback Format | SMF (Formats 0 & 1) |
| Recording Format | Original File Format (SMF 0 conversion function) |
| USB Audio Recorder | |
| Recording Time | 80 minutes (approx. 0.9 GB) per Song |
| Audio Format | WAV (44.1 kHz, 16-bit, stereo) |
| Quick Sampling | |
| Sampling |
Sampling Type: Oneshot, Loop Samples: 4 Sampling Time: Approx. 9.6 sec Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files Sampling Format: 16-bit, stereo Sampling Rate: 44.1 kHz |
| Overall Controls | |
| Controls |
Metronome: Yes Tempo Range: 11 – 280 Transpose: -12 – 0 – +12 Tuning: 427.0 – 440.0 – 453.0 Hz Octave Button: Yes Scale Type: 5 |
| Storage & Connectivity | |
| Storage |
Internal Memory: Approx. 1.72 MB External Drives: USB flash drive |
| Connectivity |
DC IN: 12 V AUX IN: Stereo mini jack × 1 Headphones: Standard stereo phone jack × 1 Foot Switch: Yes USB TO DEVICE: USB Type-A USB TO HOST: USB Type-C™ LINE OUT: L/L+R, R Microphone: Standard stereo phone jack × 1 |
| Sound System | |
| Amplifiers | 6 W × 2 |
| Speakers | 12 cm × 2 |
| Power Supply | |
| Power |
Adaptor: PA-150 or equivalent (DC 12V, 1.5A) Batteries: Six “AA” size alkaline, manganese or Ni-MH rechargeable Power Consumption: 13W |
| Auto Power Off | Yes (Disabled / 5 / 10 / 15 / 30 / 60 / 120 minutes) |
| Accessories | |
| Included | Owner’s Manual, Music Rest, AC adaptor (PA-150 or equivalent) |
