A Revolution In Portable Music

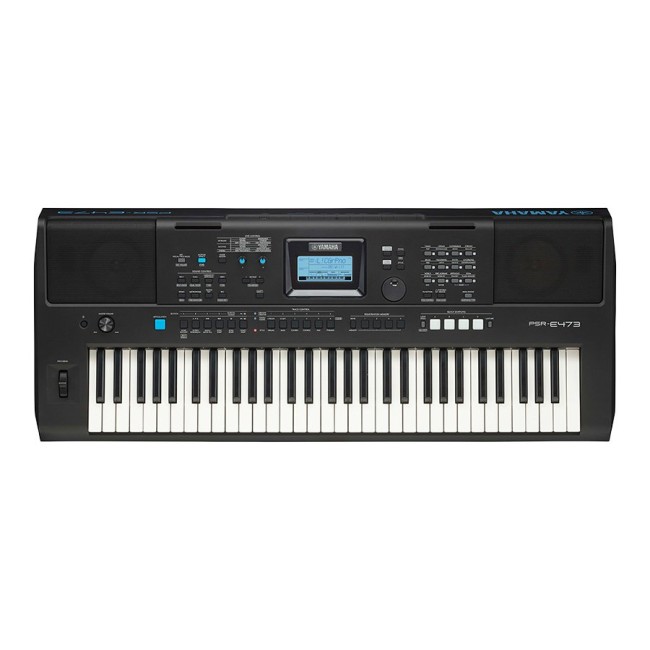

A 61-Key touch sensitive portable keyboard with over 800 Voices and 250+ Styles. The PSR-E473 is the perfect all round keyboard which can be used as a starter instrument, but also a robust alternative for experienced players.
PRODUCT INFORMATION
The PSR-E400 series is an excellent all-round 61-key keyboard that is ideal as a starter instrument but also represents a robust alternative for experienced players. The latest PSR-E473 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high quality effects such as delays.
|
|
FEATURES
| Sound like a pro! The PSR-EW473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world. |
| A Wide Variety of Voices and Styles Enjoy 820 realistic, expressive instrument sounds from here and around the world with pro-level sound quality and choose from 290 automatic accompaniment Styles including rock, dance, and jazz as well a wide range of musical genres from around the world. |
| World Content Enjoy Voices and Styles that enable you to emulate music from anywhere around the world. No matter what Style you enjoy, it is loyal and authentic to the country or region where that genre originated. |

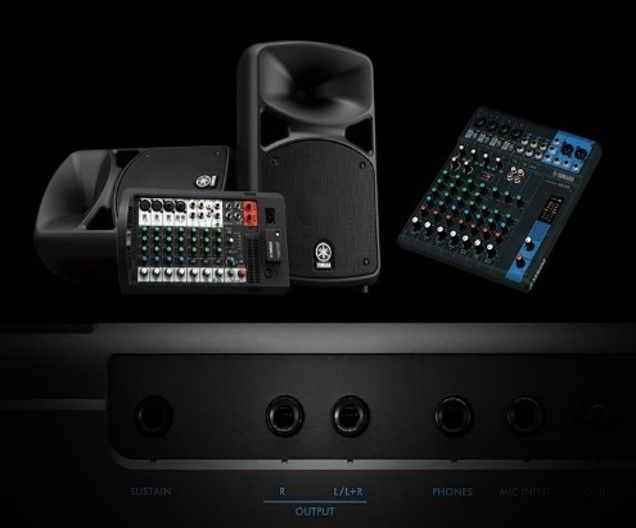

| Individual L/R output The PSR-E473 comes equipped with left and right audio outputs that allow you to easily connect to PA systems and studio equipment - separate from the headphones jack. |
| Mic Input & Vocal Effect Connect a microphone and sing along with your playing while using built-in studio-quality vocal effects, giving you everything you need for a pro-sounding performance. |
| PSR-E473 | ||
|---|---|---|
| Body | Color | Black |
| Dimensions | Width | 992 mm (39-1/16”) |
| Height | 136 mm (5-3/8”) | |
| Depth | 404 mm (15-7/8”) | |
| Weight | Weight | 7.0 kg (15 lb, 7 oz) (not including batteries) |
| Keyboard | Number of Keys | 61 |
| Touch Response | Yes (Soft, Medium, Hard, Fixed) | |
| Type | Organ-style | |
| Other Controllers | Pitch Bend | Yes |
| Art. Switches | Yes | |
| Control Knobs | 2 | |
| Display | Type | LCD |
| Backlight | Yes | |
| Panel | Language | English |
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 64 |
| Preset | Number of Voices | 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices) |
| Featured Voices | 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices | |
| Compatibility | GM | Yes |
| XGlite | Yes | |
| Types | DSP | DSP1: 41 types, DSP2: 12 types |
| Reverb | 12 types | |
| Chorus | 5 types | |
| Master EQ | 4 types | |
| Functions | Dual/Layers | Yes |
| Split | Yes | |
| Melody Suppressor | Yes (w/ pan adjustment) | |
| Crossfade | Yes (between Internal Sound and External Audio) | |
| Preset | Number of Preset Styles | 290 |
| Fingering | Multi finger, Smart Chord | |
| Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF | |
| Other Features | One Touch Setting (OTS) | Yes |
| Expandability | Expansion Style | 10 |
| Compatibility | Style File Format (SFF) | |
| Preset | Number of Groove | 35 |
| Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) | |
| Preset | Number of Preset Songs | 30 |
| Recording | Number of Songs | 10 |
| Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) | |
| Data Capacity | Approx. 19,000 notes (when only “melody” tracks are recorded) | |
| Compatible Data Format | Playback | SMF (Formats 0 & 1) |
| Recording | Original File Format (SMF 0 conversion function) | |
| Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song | |
| Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
| Recording | WAV (44.1 kHz, 16 bit, stereo) | |
| Sampling Type | One-shot, Loop | |
| Samples (Preset/User) | 4 | |
| Sampling Time | Approx. 9.6 sec | |
| Sampling Sources | AUX IN, MIC INPUT, USB audio interface, WAV format files | |
| Sampling Format | Original File Format (16 bit, stereo) | |
| Sampling Rate | 44.1 kHz | |
| USB audio interface | 44.1 kHz, 16 bit, stereo | |
| Registration | Number of Buttons | 4 (x 8 banks) |
| Control | Freeze | |
| Overall Controls | Metronome | Yes |
| Tempo Range | 11 – 280 | |
| Transpose | -12 to 0, 0 to +12 | |
| Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) | |
| Octave Button | Yes | |
| Scale Type | 5 types | |
| Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
| Other Functions | Mega Boost, Motion Effect (57 types) | |
| Voices | Harmony/Echo | 26 types |
| Arpeggio | 152 types | |
| Storage | Internal Memory | Approx. 1.72 MB |
| External Drives | USB flash drive | |
| Connectivity | DC IN | 12 V |
| AUX IN | Stereo mini jack x 1 | |
| Headphones | Standard stereo phone jack x 1 | |
| Sustain Pedal | Yes | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| OUTPUT | Standard phone jack x 2 | |
| Microphone | Standard phone jack x 1 | |
| Amplifiers | 6 W + 6 W | |
| Speakers | 12 cm x 2 | |
| Power Supply | AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries | |
| Power Consumption | 9 W (When using PA-150 AC adaptor) | |
| Auto Power Off Function | Off/5/10/15/30/60/120 (minutes) | |
| Included Accessories | Music Rest | Yes |
| Song Book | Download from Yamaha web site | |
