Product Code:PACS+12SHELLWHITE

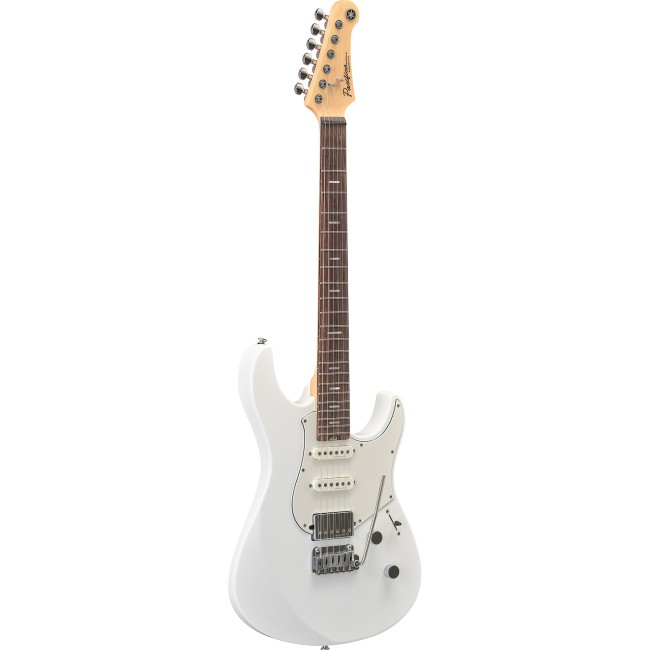

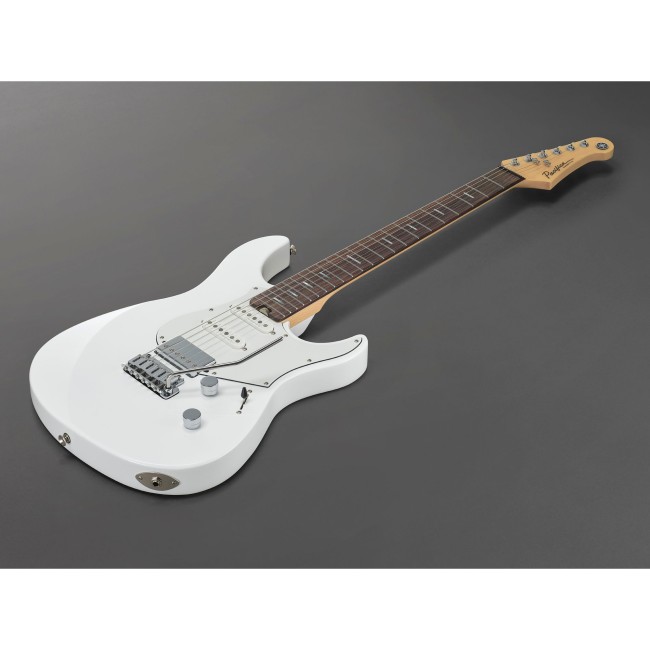

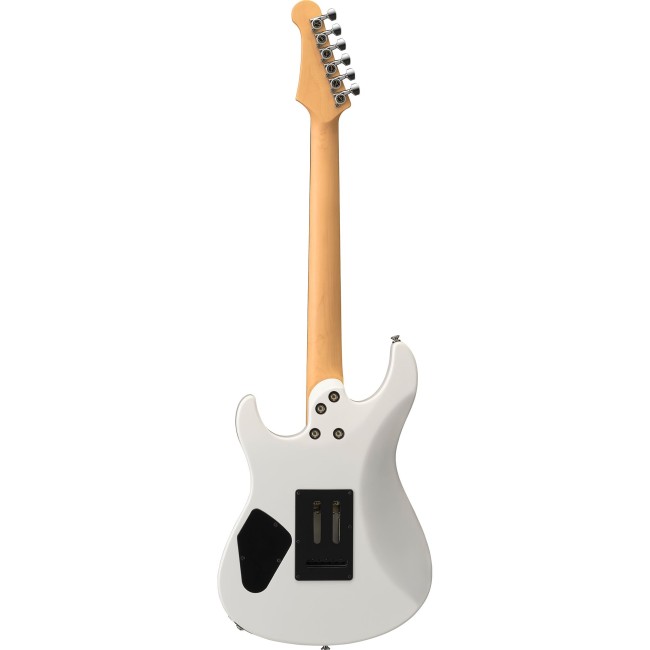

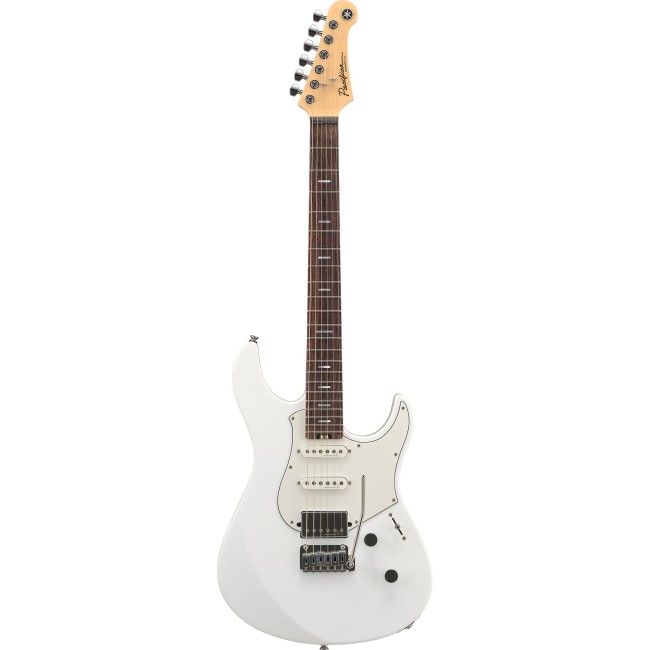

Pacifica Standard Plus guitars were designed for players seeking to discover their own unique sound. They deliver exceptional sound and playability, and feature a newly designed alder body, slim, C-shape maple neck with a rosewood or maple fingerboard, Reflectone pickups co-developed with Rupert Neve Designs and a choice of four vibrant finishes.
The PACS+12 delivers exceptional sound and playability, and features a newly designed alder body, a slim C-shape maple neck with a rosewood fingerboard, Reflectone pickups co-developed with Rupert Neve Designs and a choice of four vibrant finishes.
FEATURES
HSS Pickup Configuration with 5-Way Selector
Reflectone Pickups Created in Collaboration with Rupert Neve Designs
Choice Of Four Finishes with a Southern California Vibe
Controls For Volume and Tone (with Push-Pull Coil Split)
Slim, C-Shape Maple Neck with Satin Finish
Rosewood Fingerboard with Medium Stainless-Steel Frets
Gotoh Locking Tuners and 2-Point Tremolo Bridge
Gig Bag Included
| General Specifications | |
|---|---|
| Model | PACS+12 |
| Construction | Bolt-On |
| Scale Length | 25-1/2" (648 mm) |
| Body | |
| Body Materials | Alder |
| Body Finish | Gloss Polyurethane |
| Neck | |
| Neck Materials | Maple |
| Neck Finish | Natural Smooth Satin Polyurethane |
| Fingerboard Materials | Rosewood |
| Fingerboard Radius | 13-3/4" (350 mm) |
| Fret Wire | Medium Stainless Steel |
| Number of Frets | 22 |
| Nut Materials | Graph Tech TUSQ |
| Neck Width @ 0 Fret / 12th Fret | 42 / 52.4 mm |
| Thickness @ 1st Fret / 12th Fret | 20 / 22.4 mm |
| Electronics | |
| Neck Pickup | Reflectone HS7n: Single Coil |
| Middle Pickup | Reflectone HS7m: Single Coil |
| Bridge Pickup | Reflectone HH7b: Humbucker |
| Controls | Master Volume with High-Pass Circuit, Master Tone (Push-Pull Coil Split) |
| Pickup Switch | 5-Position Lever Switch |
| Hardware | |
| Bridge | Gotoh 510T FE-1 |
| Tremolo Arm | Φ5.5 (Cr) |
| String Spacing | 10.8 mm |
| Tailpiece | - |
| Tuning Machines | Gotoh Locking Tuners |
| Pickguard | 3-Ply Parchment |
| Others | |
| String Gauge | D'Addario EXL120 / 0.009-0.042 |
| Case | Gig Bag |
| Special Features | - |
