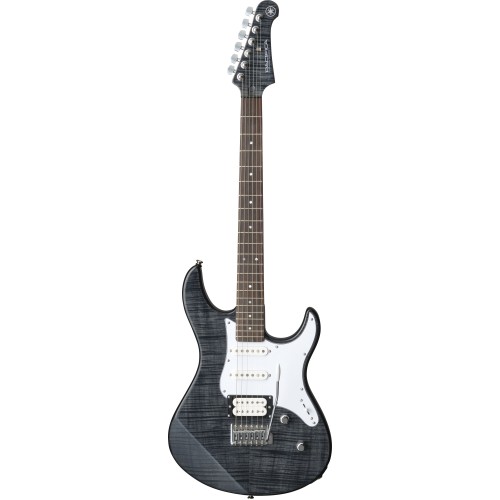

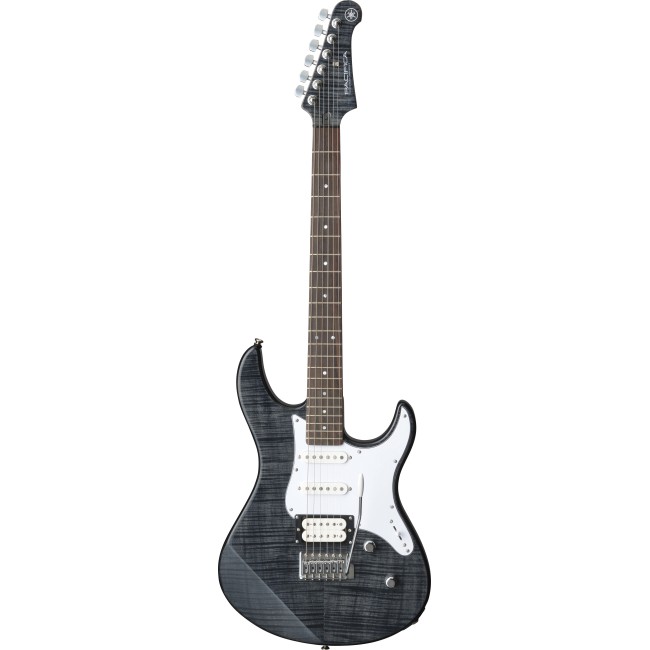

Building on the popular Pacifica 112V, Pacifica 212 guitars add the striking aesthetics of flamed maple or quilted maple tops with translucent finishes and matching headstocks. With a humbucker and two single-coil pickups, push-pull coil split and vintage-style vibrato, the Pacifica 212 offers versatile tones and eye-catching style.
FEATURES
Alder body with flamed maple veneer top
Maple neck with rosewood fingerboard
H/S/S pickup configuration with 5-position selector
Push-pull coil-split switch for additional tonal options
Vintage-style vibrato with block saddles
| PAC212VFM | Specifications |
|---|---|
| Construction | Bolt-on |
| Scale Length | 25-1/2" (648.0mm) |
| Body Materials | Alder / Flamed Maple Laminated |
| Body Finish | Gloss Polyurethane |
| Neck Materials | Maple |
| Neck Finish | Satin Polyurethane |
| Fingerboard Materials | Rosewood |
| Fingerboard Radius | 13-3/4" (350mm) |
| Fret wire | Medium |
| Number of frets | 22 |
| Nut materials | Urea |
| Neck Width @ 0 Fret / 12th Fret | 41.0 / 51.4 mm |
| Thickness @1st Fret / 12th Fret | 20.9 / 22.9 mm |
| Neck Pickup | Single Coil/Alnico V |
| Middle Pickup | Single Coil/Alnico V |
| Bridge Pickup | Humbucker/Alnico V |
| Controls | Master Volume, Master Tone(Push-Pull Coil Split) |
| Pickup Switch | 5-Position Lever Switch |
| Bridge | Vintage Style Tremolo with Block Saddle |
| Tremolo Arm | Φ5(Screw-in) |
| String spacing | 10.5mm |
| Tailpiece | - |
| Tuning Machines | Die-Cast |
| Pickguard | 3-Ply White |
| String gauge | 0.009-0.042 |
| Case | - |
| Special Features | - |
