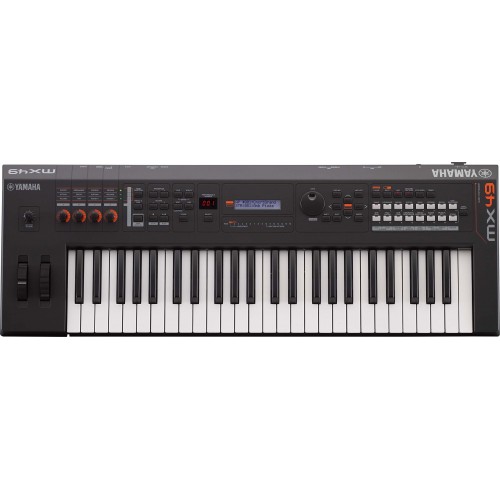

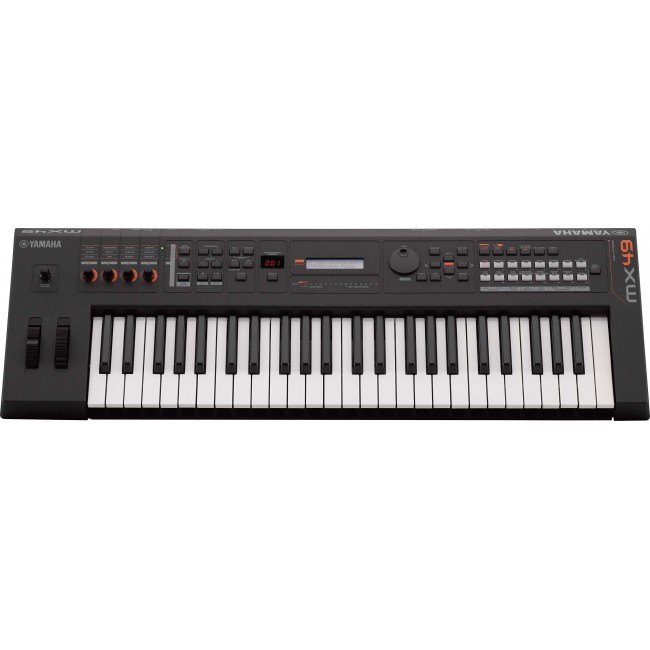

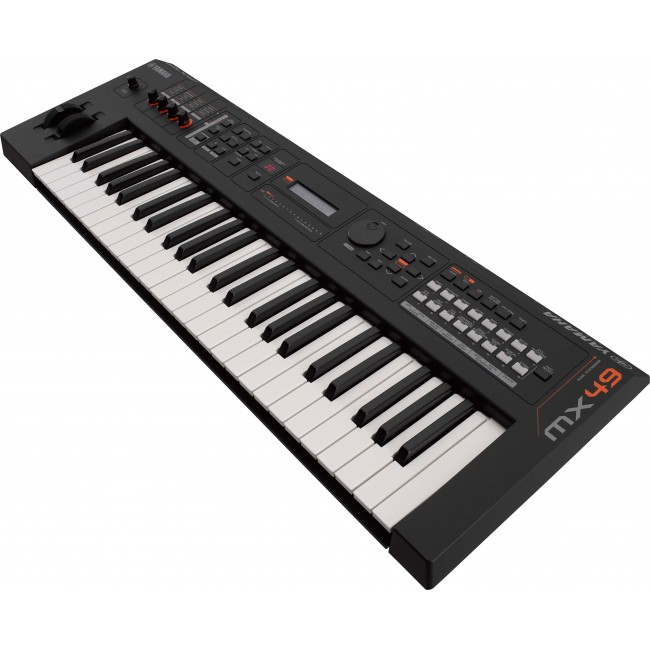

Yamaha MX49BK 49-Key Synthesizer

  • The MX49 BK features over 1000 Voices from the legendary MOTIF series plus deep computer and iOS integration in a compact, lightweight keyboard.
  • Brand:
  • Product Code:MX49BK
Contact for Price

The MX49 BK features over 1000 Voices from the legendary MOTIF series plus deep computer and iOS integration in a compact, lightweight keyboard. MX49 BK adds a Class Compliant USB audio and MIDI driver plus unlocks the new FM Essential iOS synth app!

MX49_BK
Dimensions Width 830 mm
Height 91 mm
Depth 298 mm
Weight Weight 3.8kg
Keyboard Number of Keys 49
Initial Touch Yes
Tone Generator AWM2
Maximum Polyphony 128 notes
Multi Timbral Capacity 16 parts (Internal)
Wave Approx.166 MB (when converted to 16-bit linear format)
Voices Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
Performance User: 128 (16 parts)
Effects Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)
Tempo (BPM) 5 – 300
Songs 27 Demo Songs
Patterns 208 Patterns
Arpeggio 999 types
Sequence formats SMF Format 0 (playback only)
Sequence Software compatible with the Remote Control function For Windows®: Cubase 8 or later, SONAR X 2 Producer For Mac®: Cubase 8 or later, Logic Pro X, Digital Performer 9 *Functi ons to be controlled differ depending on the software
Controllers Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
Display 3 digit LED + 20 x 2 line character LCD (backlit)

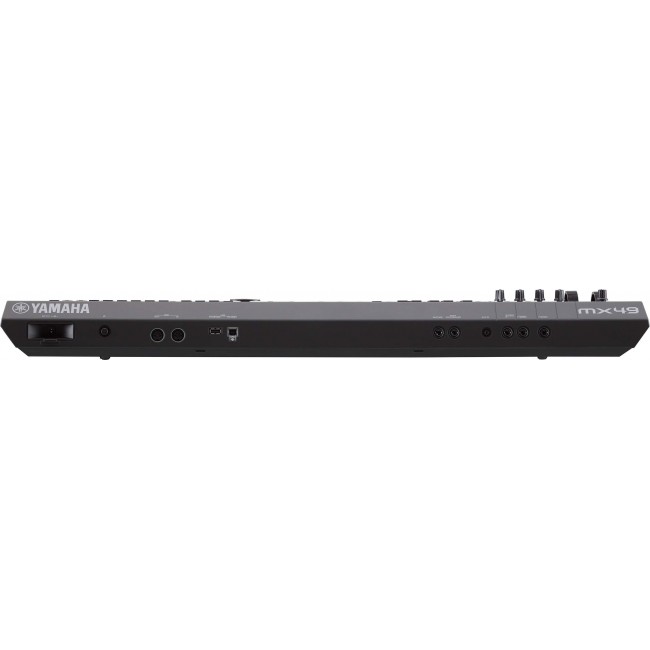

Connectors OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
Power Supply 9 W
Accessories AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner' Manual, Cubase AI Download Information

Over 1000 Sounds from the MOTIF Series

The MX series contains more than 1000 Voices derived directly from the world famous Yamaha MOTIF XS series. From realistic acoustic sounds like piano, electric piano, strings and drums to complex 8-element synth sounds, the MX has all of your favorite MOTIF XS Voices right at your fingertips. The MX even has a streamlined interface for instant hands-on selection of all those great Voices. The newly designed category selection makes it easier than ever to find the Voice you need. You can even edit and store your own sounds right onboard.

Plug and Play, "FM Essential"

"FM Essential" is a synthesizer app for the iPhone and iPad that provides for real-time synth performances and also lets you edit voices.If you plug MX BK/BU series with iOS application "FM Essential", you can unlock and play all the function and Voices in app.You can see what FM Essential is at here.http://appstore.com/fmessential

Easy Split /Layer Performance Mode for Instant Inspiration

Performance Mode on the MOTIFs has always been the place to find instant inspiration and the MX is no different. You can easily combine two Voices to play on the keyboard using the dedicated Split and Layer buttons each with their own intelligent arpeggiator and a dedicated Part for a drum track to create evocative Performances that feel like a whole band is playing. The 128 Performances on the MX are all user editable, but come programmed with the latest club friendly grooves.

16-Part Multi Timbral and 128-note Polyphony

Each Performance contains not only the three sounds described above, but all the settings for a complete 16-Part Multi setting for play. You can switch between any of the 16 Parts without the sound cutting off. With 128 notes of polyphony there are plenty of notes to play even the densest sequences from your DAW. These features make the MX the perfect tone generator solution for live performance and live playback of DAW MIDI tracks.

Bi-directional USB Audio/MID Interfacing

But the MX doesn't just control software DAWs and VSTs; it's an audio interface as well. Just connect a USB cable to your computer and you can monitor all the sounds from your computer via the headphone output of the MX or listen to your DAW tracks by connecting the MX to external studio monitors or PA gear. The audio converters on the MX are made for professional music applications so everything on your computer -- even games -- will sound better when using the MX as the output. The MX interface is bi-directional so you can record the internal sounds of the MX directly to your computer, without ever going to the analog domain, for the highest possible quality.

Extensive Hands-On Controls for VSTs and DAWs

The MX also features solid knobs and durable buttons for controlling internal sounds, DAW parameters and VST instruments. The deceptively simple interface is combined with a remote template editor on your computer so any VST you own or any new VSTs you buy can be easily setup to be controlled by the MX. There are advanced integration templates for use with a variety of DAWs. When used with Cubase, there is even an AI knob so any parameter can be controlled by the large rotary encoder just by mousing over it. It's never been quicker to take full control of Cubase.

A Complete Suite of Music Production Software Included

The MX series is the only hardware synth in its price range to come with a complete suite of music production software tools. The included Steinberg Cubase AI features 48 audio tracks and 64 MIDI tracks, notation, built-in VST effects, so with just the MX and AI you can do complete productions. But we didn't stop there; it comes bundled with Steinberg Prologue and the Yamaha YC-3B organ emulator so you have some compelling VSTs to get started. Plus there are Remote Template editors for setting up controls of VSTs. Finally, Yamaha has worked with some third party developers to ensure that there will be fully functional cross platform editors available at release.

Cubasis LE

In addition to Cubase AI, MX BK/BU series offer iPad music production App, "Cubasis LE".If you connect MX BK/BU series to the iPad, you can unlock the feature set of Cubasis LE. Bi-directional audio/midi interface and USB class compliant of new MX series enhances the music production of Cubasis LE more higher.

Complete Analog and Digital Connectivity

In addition to the USB audio/MIDI port, the MX has a USB to Device port so you can connect USB devices for storing MX data to external memory and even playing back wave files directly from a USB stick. If you want to add a tablet or an MP3 player to your system just connect to the AUX input using a mini stereo cable and you are ready to go.

A Lightweight Design with a Quality Yamaha Keyboard

While almost all other keyboard controllers use inexpensive OEM keyboards, the MX features an expertly crafted keyboard that only Yamaha -- the world's largest keyboard manufacturer -- could produce. Weighing only 3.8kg (MX49) or 4.8kg (MX61), either synthesizer can be carried easily with one hand. MX synthesizers have a compact design so they are easy to carry to the gig and also fit easily into today’s compact home music production studios.

VCM Effects

MX synthesizers come equipped with VCM effects, which simulate vintage effectors at the circuit level. The sounds of the ‘70s are brought back to life, through simulating the hard-to-find vintage sounds of equalizer, flanger, phaser, and wah effects introduced by the keyboard legends of the era.

Integration with Class Compliant

MX BK/BU series support USB Class Compliant .You can work with a variety of iOS music apps such as FM Essential and Cubasis LE with MX.
