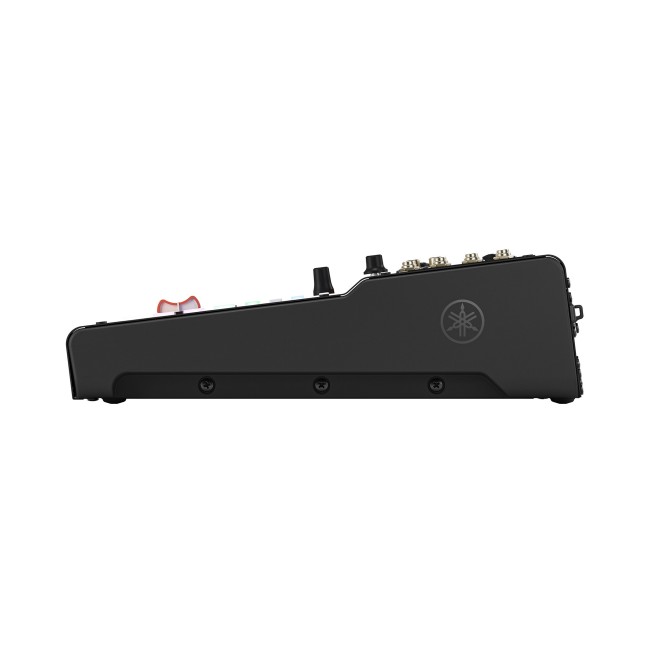

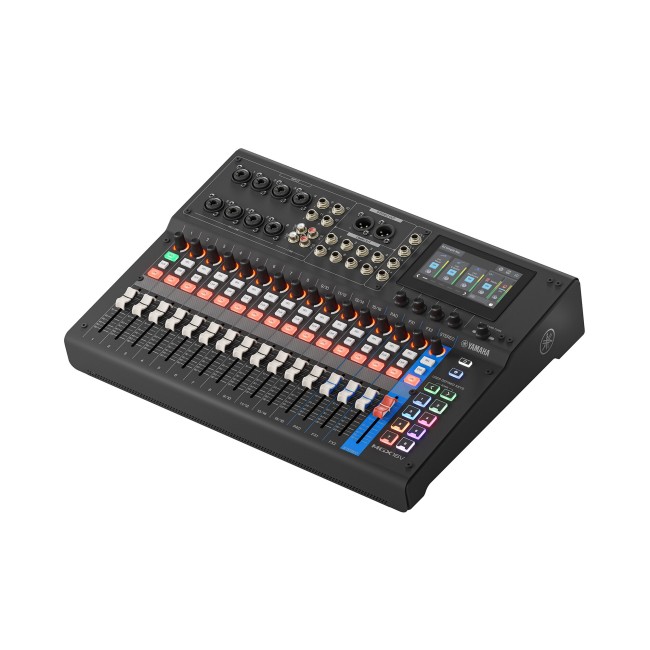

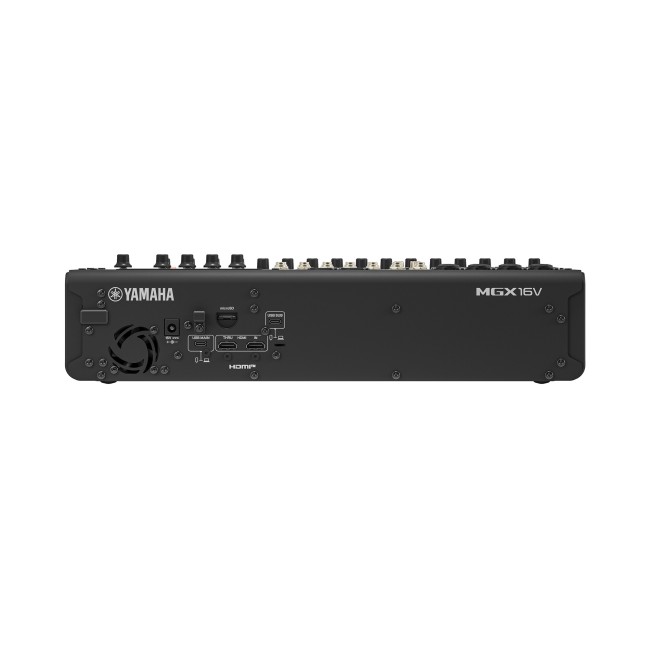

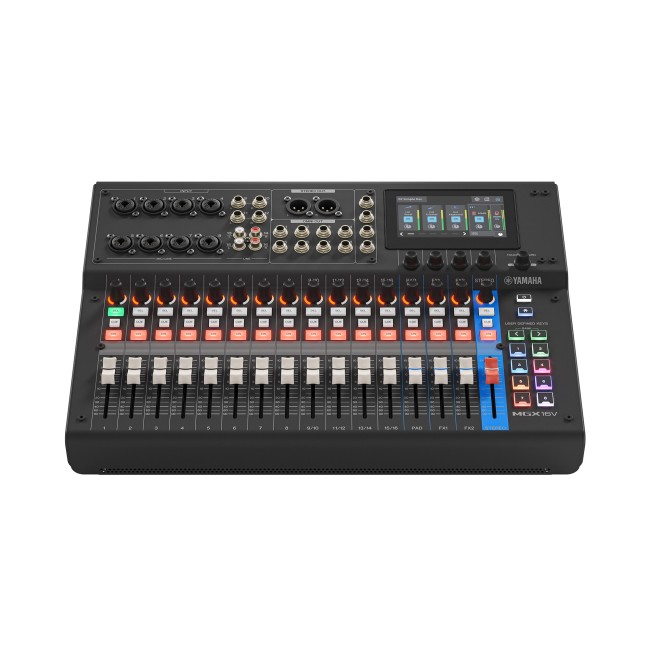

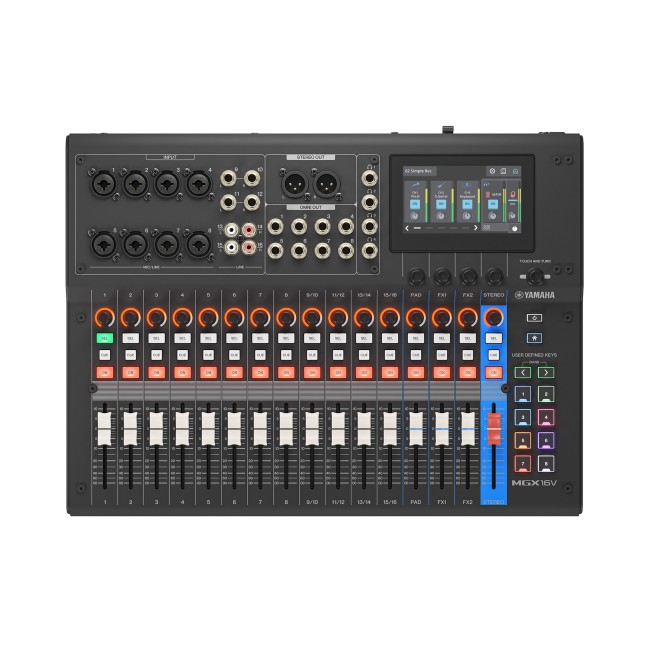

Yamaha MGX16V 22-Channel Digital Mixing Console with Video Interface - Black

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications.
Brand:
Product Code:MGX16VB

Contact for Price

Description
Specs

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

FEATURES

15 + 1 fader configuration (non-motorized fader)

A 4.3-inch touchscreen with five control knobs

Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return

Busses: 1 STEREO + 8 MIX

Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)

Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones

USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)

USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)

microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)

Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)

HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough

Built-in DSP processor for professional sound and latency-free monitoring

Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall

Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

General Specifications
I/O Connectors Analog Input 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
Analog Output 2 XLR, 8 TRS
USB TO HOST 2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
Phones 4 TRS (100 mW+100 mW @40 Ohm)
DC 1 (Barrel type, DC power IN)
microSD Card Slot 1
Bluetooth 1 Bluetooth audio input (Bluetooth 5.0, A2DP)
HDMI 1 IN / 1 THRU (Audio/Video input/capture/pass-through)
User Interface 4.3-inch touch screen, 16 x 60 mm fader, 16 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")
Recording & Playback USB 22-track recording, 22-track playback
USB (SUB) 2-track recording, 2-track playback
microSD Card Up to 16-track recording, 2-track playback
Sampling frequency rate 96 kHz - 44.1 kHz
Signal delay Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
Frequency response +0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
Dynamic range 125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min.
Total harmonic distortion Less than 0.002% 20 Hz to 20 kHz@+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min.
Hum & noise level Equivalent input noise -128 dBu typ., Input Gain= Max.
Residual output noise -108 dBu, ST main off
Crosstalk -120 dB, adjacent INPUT/STEREO OUT channels, Input Gain= Min. @1 kHz
Gain range 86 dB
Power requirements DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz)
Power consumption 38.4 W
Dimensions (W) 419 mm (16.5")
Dimensions (H) 96 mm (3.8")
Dimensions (D) 319 mm (12.6")
Net weight 4.9 kg (10.8 lb)
Included Accessories Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300 including power cord)
Accessories RK-MGX16 (Mixer Accessory)
Operating temperature 0 - 40 °C
Storage temperature -20 - 60 °C
Outline / Mixing Capacity
Input Channels 8 mono + 4 stereo + 1 Sound Pad + 2 FX
Mix Buses 8 (mono)
Stereo Buses 1
FX Buses 2
Cue Buses 1
On-board processors (DSP) Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)
