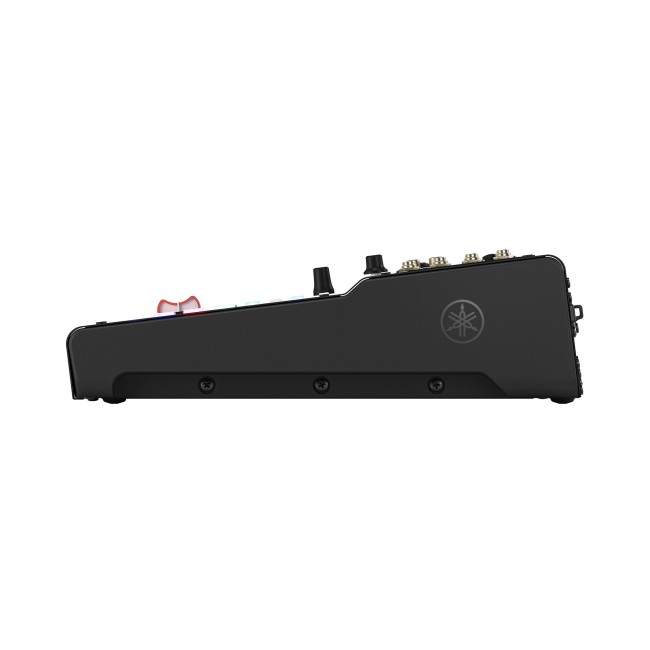

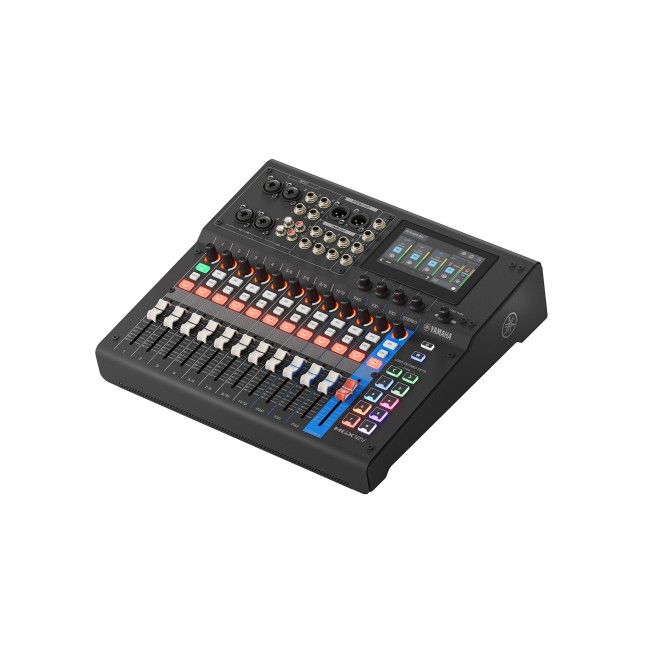

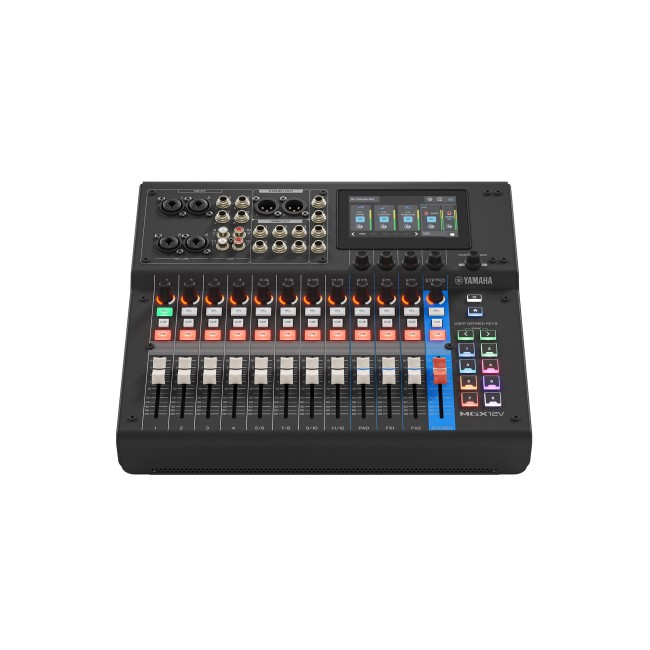

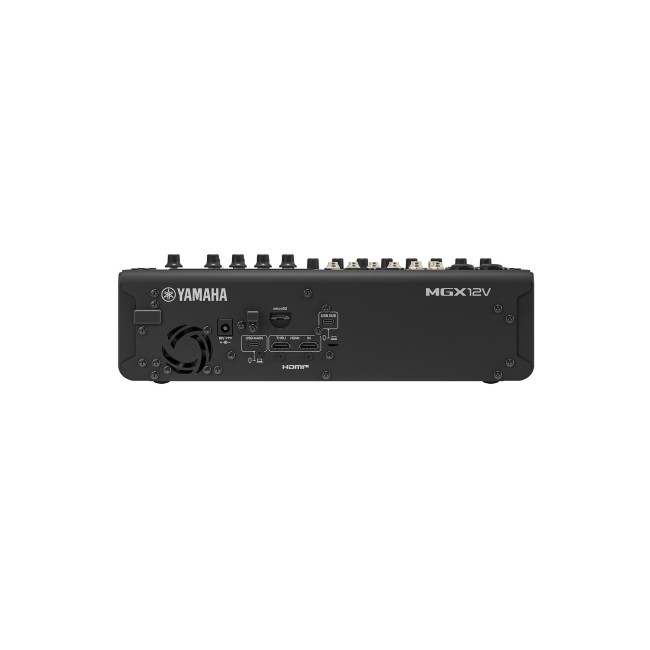

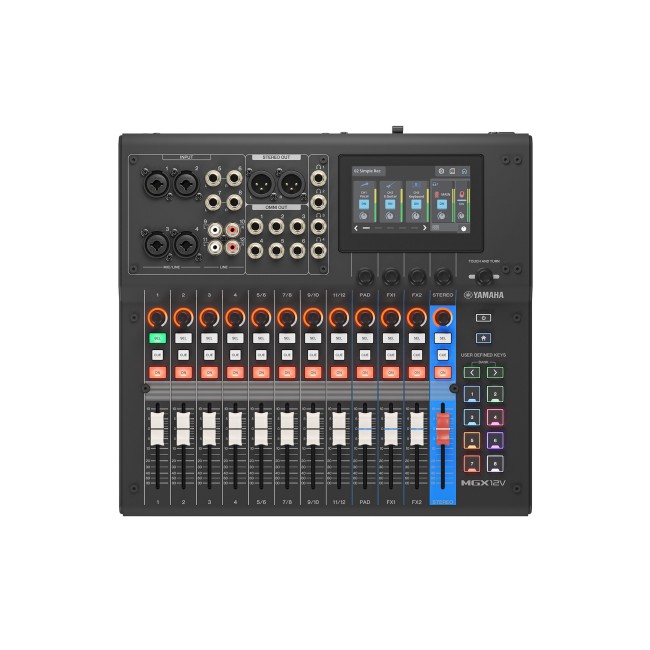

Yamaha MGX12V 18-Channel Digital Mixing Console with Video Interface - Black
- The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications.
- Brand:
- Product Code:MGX12VB
The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
FEATURES
11 + 1 fader configuration (non-motorized fader)
A 4.3-inch touchscreen with five control knobs
Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
Busses: 1 STEREO + 8 MIX
Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
Built-in DSP processor for professional sound and latency-free monitoring
Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
| General Specifications | |||
|---|---|---|---|
| I/O Connectors | Analog Input | 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line) | |
| Analog Output | 2 XLR, 6 TRS | ||
| USB to Host | 2 (USB Type-C, MAIN: 32-bit / SUB: 16-bit) | ||
| Phones | 4 TRS (100 mW + 100 mW @40 Ohm) | ||
| DC | 1 (Barrel type, DC power IN) | ||
| microSD Card Slot | 1 | ||
| Bluetooth | 1 Bluetooth audio input (Bluetooth 5.0, A2DP) | ||
| HDMI | - | ||
| User Interface | 4.3-inch touch screen, 12 x 60 mm fader, 12 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN") | ||
| Recording & Playback | USB | 18-track recording, 18-track playback | |
| USB (SUB) | 2-track recording, 2-track playback | ||
| microSD Card | Up to 16-track recording, 2-track playback | ||
| Sampling Frequency Rate | 96 kHz - 44.1 kHz | ||
| Signal Delay | Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz) | ||
| Frequency Response | +0.0 / -0.5dB 20 Hz to 20 kHz, reference to nominal output level @1 kHz, Input Gain=Min. | ||
| Dynamic Range | 125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min. | ||
| Total Harmonic Distortion | Less than 0.002% 20 Hz to 20 kHz @+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min. | ||
| Hum & Noise Level | Equivalent input noise -128 dBu typ., Input Gain=Max. | ||
| Residual Output Noise | -108 dBu, ST main off | ||
| Crosstalk | -120 dB, adjacent INPUT/STEREO OUT channels, Input Gain=Min. @1 kHz | ||
| Gain Range | 86 dB | ||
| Power Requirements | DC16 V / 2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz) | ||
| Power Consumption | 38.4 W | ||
| Dimensions (W x H x D) | 335 mm x 96 mm x 319 mm (13.2" x 3.8" x 12.6") | ||
| Net Weight | 3.9 kg (8.6 lb) | ||
| Included Accessories | Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300 including power cord) | ||
| Accessories | RK-MGX12 (Mixer Accessory) | ||
| Operating Temperature | 0 - 40 °C | ||
| Storage Temperature | -20 - 60 °C | ||
| Outline / Mixing Capacity | Input Channels | 4 mono + 4 stereo + 1 Sound Pad + 2 FX | |
| Mix Buses | 8 (mono) | ||
| Stereo Buses | 1 | ||
| FX Buses | 2 | ||
| Cue Buses | 1 | ||
| On-Board Processors | Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb) | ||
