Product Code:MGP32X

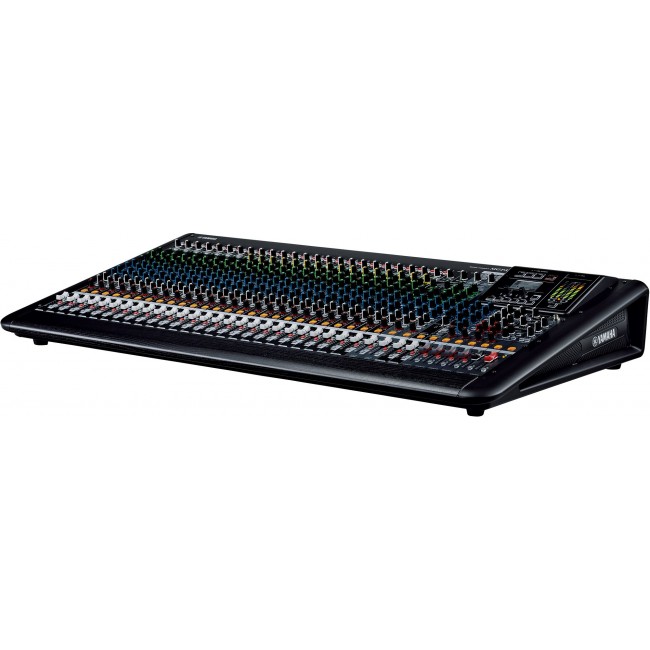

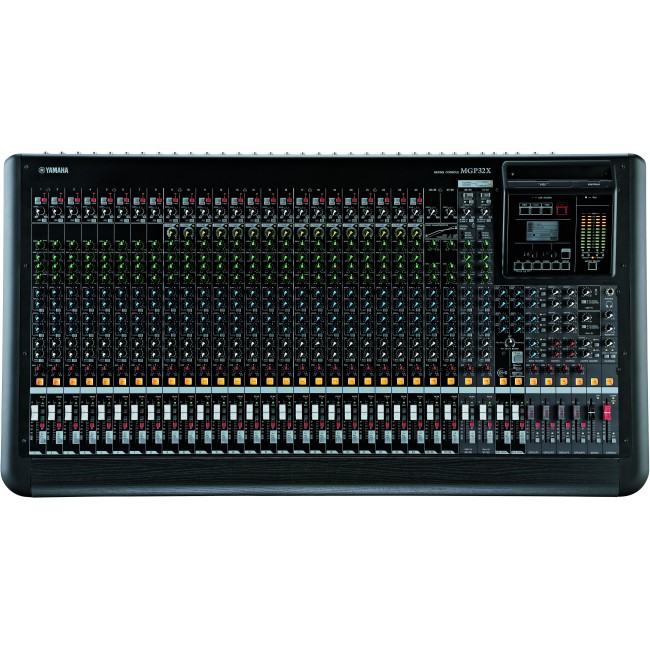

Yamaha MGP32X
- 32 Input Channels, 32 Line Inputs (24 mono and 4 stereo), 4 GROUP Buses + ST Bus, 6 AUX Sends + 2 FX Sends, 2 Matrix out, 1 Mono Out, 1-knob Compressors, Dual Digital Effects, 31-band GEQ, Stereo Hybrid Channels, Digital Connectivity for iPod/iPhone, MG
- Brand:
-
AED 7,696.50
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
32-Channel Premium Mixing Console
- 24 Mic Inputs with 48V Phantom Power and HPF per Channel
- 32 Line Inputs (24 mono and 4 stereo)
- 6 AUX Sends + 2 FX Sends
- 4 GROUP Buses + ST Bus
- 2 Matrix out
- 1 Mono out
| MGP32X | MGP24X | MGP16X | MGP12X | ||
|---|---|---|---|---|---|
| Mixing capability | Mixing channels | 32 Line Inputs (24 mono and 4 stereo) | 24 Line Inputs (16 mono and 4 stereo) | 16 Line Inputs (8 mono and 4 stereo) | 12 Line Inputs (4 mono and 4 stereo) |
| GROUP | 4 GROUP Buses + ST Bus | 4 GROUP Buses + ST Bus | 4 GROUP Buses + ST Bus | 4 GROUP Buses + ST Bus | |
| AUX | 6 AUX Sends + 2 FX Sends | 6 AUX Sends + 2 FX Sends | 2 AUX Sends + 2 FX Sends | 2 AUX Sends + 2 FX Sends | |
| MATRIX | 1 Matrix out | 1 Matrix out | - | - | |
| On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) | FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) | FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) | FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) | |
| Input channel functions | - | - | Compressor CH1-8,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-8,13-16)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH9-12)/ Low 125Hz shelving | Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving | |
| I/O | Mic inputs | MIC: 24 (INPUTS HPF: 100Hz 12dB/oct) | MIC: 16 (INPUTS HPF: 100Hz 12dB/oct) | MIC: 10 | MIC:6 (100Hz 12dB/oct) |
| Phantom power | 48V phantom power per channel | 48V phantom power per channel | 48V phantom power per channel | 48V phantom power per channel | |
| Line inputs | LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo | LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo | LINE: 8mono+4stereo, CH INSERT: 8, RETURN: 1stereo, 2TR IN: 1 stereo | LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo | |
| Digital I/O | USB Device, iPod / iPhone | USB Device, iPod / iPhone | USB Audio USB IN: iPod, iPhone exclusive | USB Audio USB IN: iPod, iPhone exclusive | |
| Total harmonic distortion | 0.02% (20Hz-20kHz@ +14dBu) | 0.02% (20Hz-20kHz@ +14dBu) | 0.02% (20Hz-20kHz@ +14dBu) | 0.02% (20Hz-20kHz@ +14dBu) | |
| Frequency response | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | |
| Hum & noise level | Equivalent input noise | -128 dBu Equivalent Input Noise | -128 dBu Equivalent Input Noise | -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) | -128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) |
| Residual output noise | -94 dBu Residual Output Noise | -94 dBu Residual Output Noise | -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) | -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum) | |
| Crosstalk | -74dB @ 1kHz | -74dB @ 1kHz | -74dB @ 1kHz | -74dB @ 1kHz | |
| Power requirements | 100-240V 50Hz/60Hz | 100-240V 50Hz/60Hz | 100-240V 50Hz/60Hz | 100-240V 50Hz/60Hz | |
| Power consumption | 86W max | 86W max | 55W max | 45W max | |
| Dimensions | W | 1,027mm (40.4") | 819mm (32.2") | 447mm | 348mm |
| H | 169mm (6.7") | 169mm (6.7") | 143mm | 143mm | |
| D | 565mm (22.2") | 565mm (22.2") | 495mm | 495mm | |
| Net weight | 19kg (41.9lb) | 15.5kg (34.2lb) | 9.0kg | 7.5kg | |
