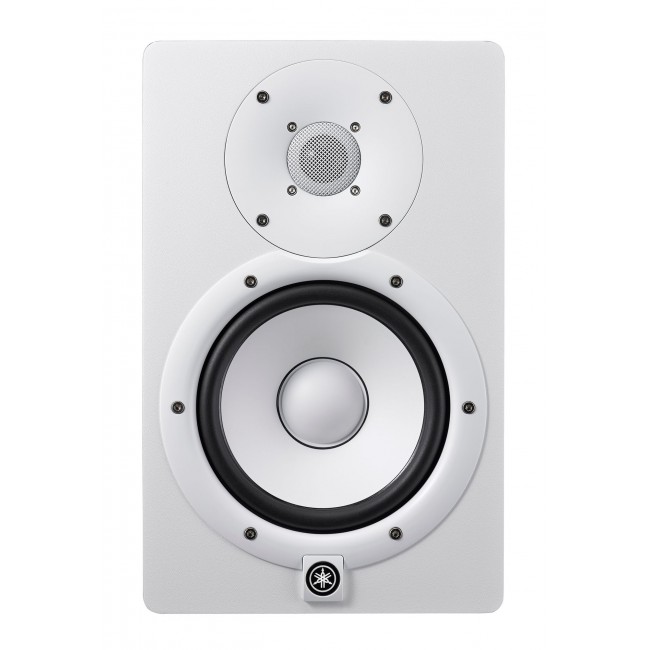

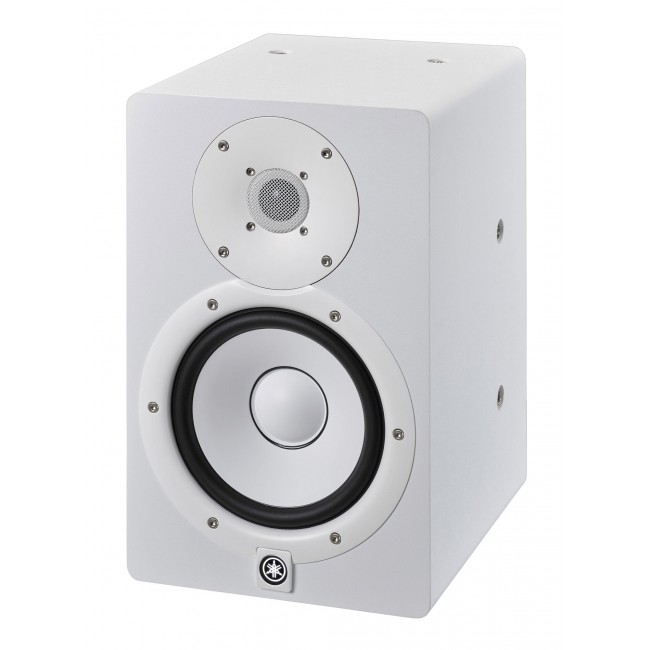

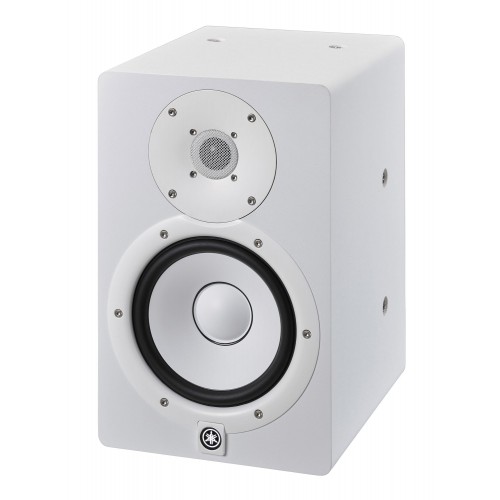

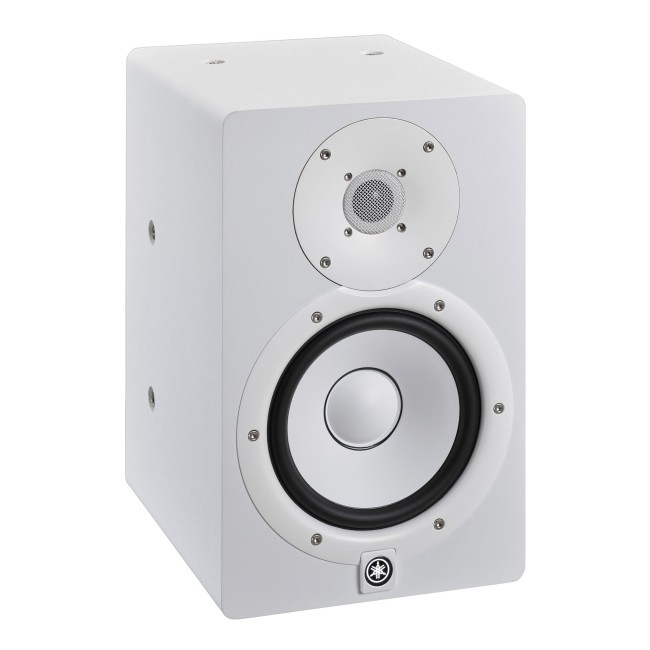

Yamaha HS7IW WHITE

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 6.5" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available. 60W LF plus 35W HF bi-amp system for high-performance 95W power amplification
  • Brand:
  • Product Code: HS7IW
  • AED 1,086.75

2-way bass-reflex bi-amplified nearfield studio monitor with 6.5" cone woofer and 1" dome tweeter. Mounting points on 4 surfaces are available.

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 6.5" cone woofer and 1" dome tweeter
  • 43Hz - 30kHz (-10dB), 55Hz - 24kHz (-3dB) frequency response
  • 60W LF plus 35W HF bi-amp system for high-performance 95W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals
  • Mounting points on 4 surfaces
  • Packaging single
HS8 HS8I HS7 HS7I HS5 HS5I
Speaker type 2-way bi-amp powered studio monitor 2-way bi-amp powered studio monitor 2-way bi-amp powered studio monitor 2-way bi-amp powered studio monitor 2-way bi-amp powered studio monitor 2-way bi-amp powered studio monitor
Frequency response (-10dB) 38Hz - 30kHz 38Hz - 30kHz 43Hz - 30kHz 43Hz - 30kHz 54Hz - 30kHz 54Hz - 30kHz
Frequency response (-3dB) 47Hz - 24kHz 47Hz - 24kHz 55Hz - 24kHz 55Hz - 24kHz 74Hz - 24kHz 74Hz - 24kHz
Components LF 8" cone 8" cone 6.5" cone 6.5" cone 5" cone 5" cone
HF 1" dome 1" dome 1" dome 1" dome 1" dome 1" dome
Crossover 2kHz 2kHz 2kHz 2kHz 2kHz 2kHz
Output power 120W (LF:75W, HF:45W) 120W (LF:75W, HF:45W) 95W (LF:60W, HF:35W) 95W (LF:60W, HF:35W) 70W (LF:45W, HF:25W) 70W (LF:45W, HF:25W)
Input sensitivity -10 dBu/10k ohms -10 dBu/10k ohms -10 dBu/10k ohms -10 dBu/10k ohms -10 dBu/10k ohms -10 dBu/10k ohms
I/O connectors XLR3-31 type (balanced), PHONE (balanced) XLR3-31 type (balanced), PHONE (balanced) XLR3-31 type (balanced), PHONE (balanced) XLR3-31 type (balanced), PHONE (balanced) XLR3-31 type (balanced), PHONE (balanced) XLR3-31 type (balanced), PHONE (balanced)
Indicators Power ON (White LED) Power ON (White LED) Power ON (White LED) Power ON (White LED) Power ON (White LED) Power ON (White LED)
Power consumption 60W 60W 55W 55W 45W 45W
Shape Bass-reflex type Bass-reflex type Bass-reflex type Bass-reflex type Bass-reflex type Bass-reflex type
Cabinet material MDF MDF MDF MDF MDF MDF
Dimensions W 250mm (9-13/16") 250mm (9-13/16") 210mm (8-1/4") 210mm (8-1/4") 170mm (6-11/16") 170mm (6-11/16")
H 390mm (15-3/8") 390mm (15-3/8") 332mm (13-1/16") 332mm (13-1/16") 285mm (11-1/4") 285mm (11-1/4")
D 334mm (13-1/8") 334mm (13-1/8") 284mm (11-3/16") 284mm (11-3/16") 222mm (8-3/4") 222mm (8-3/4")
Net weight 10.2kg (22.5 lbs.) 10.7 kg (23.6 lbs.) 8.2kg (18.1 lbs.) 8.7 kg (19.2 lbs.) 5.3kg (11.7 lbs.) 5.5 kg (12.1 lbs.)
Accessories Owner's Manual, Power cord Owner's Manual, Power cord, Screws for installing brackets x 2 Owner's Manual, Power cord Owner's Manual, Power cord, Screws for installing brackets x 2 Owner's Manual, Power cord Owner's Manual, Power cord, Screws for installing brackets x 2
Packaging Single Single Single Single Single Single
Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
Flying and mounting hardware - Four surfaces x 2 x M8 (120 mm pitch) - Four surfaces x 2 x M8 (120 mm pitch) - Four surfaces x 2 x M5 (60 mm pitch)
Options - Baton bracket BBS251, Ceiling bracket BCS251, Wall bracket BWS251, Wall / ceiling bracket BWS50 - Baton bracket BBS251, Ceiling bracket BCS251, Wall bracket BWS251, Wall / ceiling bracket BWS50 - Wall / ceiling bracket BWS20, Ceiling bracket BCS20
