Yamaha - DXS15mkII

  • The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz at a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and di
  • Brand:
  • Product Code: DXS15mkII
  • AED 3,601.50

The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.

  • 15" powered subwoofer with 1020W class-D power amplifier
  • High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
  • The 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for maximum sound quality
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)
  • M20 and Ø35 mm dual pole sockets

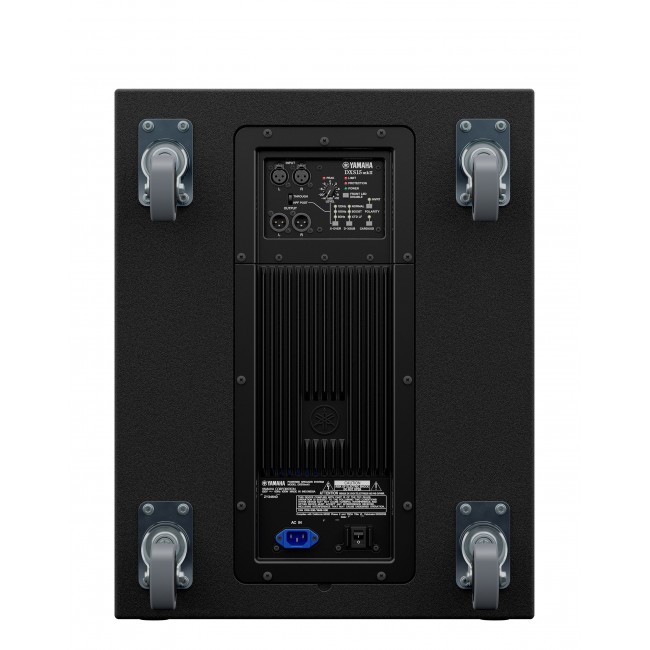

  • Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)
DXS18 DXS15mkII DXS12mkII
Speaker type 18" Powered subwoofer, Band-pass type 15" powered subwoofer, Band-pass type 12" powered subwoofer, Band-pass type
Frequency range (-10dB) 32Hz – 120Hz 40 Hz - 150 Hz 42 Hz - 150 Hz
Components LF 18" cone, Voice Coil:4" 15" cone, 2.5" voice coil 12" cone, 2.5" voice coil
Output power Dynamic:1020W / Continuous: 800W Dynamic:1020W / Continuous: 800W Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis) 136dB SPL 135 dB SPL 134 dB SPL
I/O connectors INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors D-XSUB: BOOST, XTD LF, NORMAL D-XSUB: BOOST, XTD LF, NORMAL D-XSUB: BOOST,XTENDED-LF, OFF
Cooling Natural convection Natural convection Natural convection
Power requirements 100V – 240V, 50Hz/60Hz 100V – 240V, 50Hz/60Hz 100V – 240V, 50Hz/60Hz
Power consumption 100W 100W 100W
Pole socket 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions W 563mm (22.2") 480 mm (18.90”) 400 mm (15.75")
H 683mm (26.8") 611 mm (24.06”) 567 mm (22.32")
D 721mm (28.4") 614 mm (24.17”) 570 mm (22.44")
Net weight 49.7kg (110lbs) 36.0 kg (79.4lbs) 30.0 kg (66.1lbs)
Others Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
