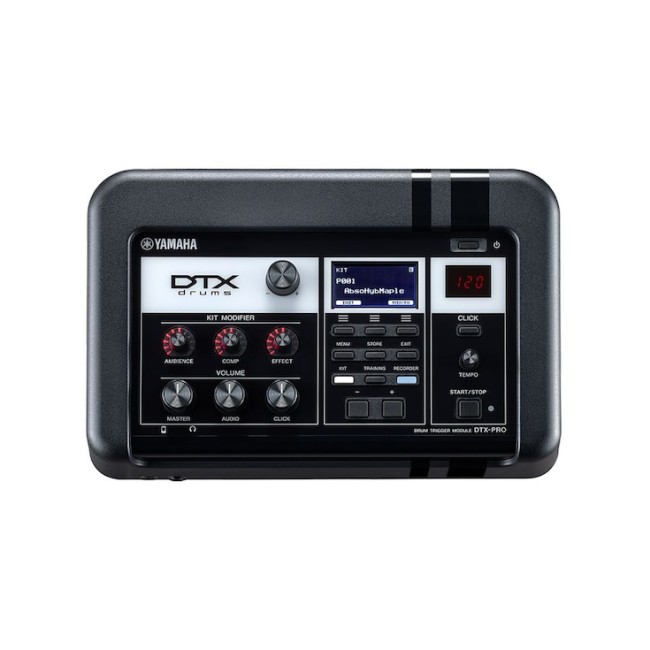

The DTX-PRO is a next-generation sound module that takes sound quality, functionality and usability to new heights. The KIT MODIFIER functionality allows you to create your sound freely just by turning the AMBIENCE, COMPRESSION and EFFECT knobs to alter the tone and ambience of sounds sampled in some of the most noted studios in the world. The MODIFIER knob is a great stimulus to creativity, giving drummers the freedom to express themselves. The DTX-PRO module brings more enjoyment, more fun and more freedom to your music than ever before.
FEATURES
Real sounds that drive the drummer
No compromise has been made in recording the sound of the instruments themselves—the key to any drum sound along with the ambience of the place where they are played. The DTX-PRO has been fine-tuned to follow the drummer’s performance and allow for maximum expression.
Intuitive functionality that stirs creativity

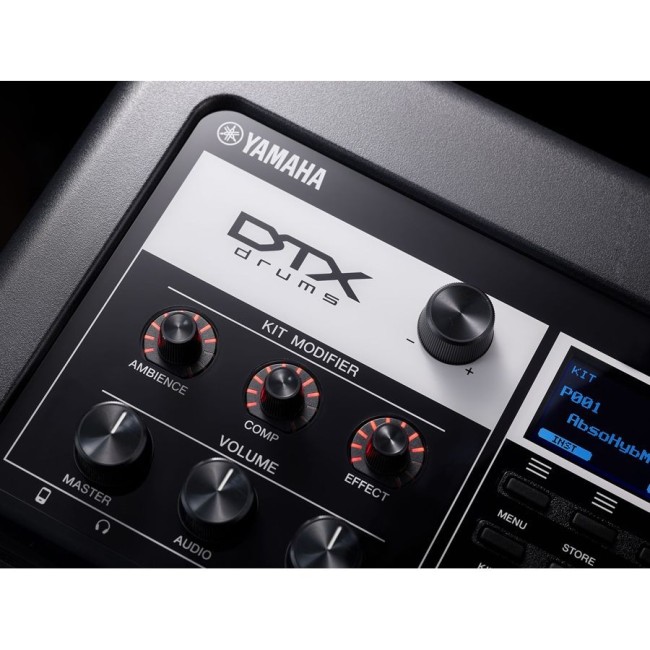

The KIT MODIFIER featured on the DTX-PRO offers drummers limitless possibilities.
High-performance sound engine
The high-performance sound engine equipping the DTX-PRO leverages the technologies Yamaha has acquired over decades of making musical instruments of all kinds.
Easy recording, editing and sharing with the app
The DTX-PRO is compatible with the iOS/Android Rec'n'Share app, which allows you to efficiently practice songs and record, edit and share your videos.
| DTX-PRO | ||
|---|---|---|
| Dimensions | Width | 303 mm (11-15/16 in) |
| Height | 196 mm (7-11/16 in) | |
| Depth | 66 mm (2-5/8 in) | |
| Weight | 1.5 kg (3 lb 5 oz) | |
| Maximum Polyphony | 256 notes | |
| Effects | For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst. | |
| Drum Kits | Preset: 40 Kits, User: 200 Kits | |
| Voices | 712 | |
| Click Sets | 30 | |
| Tempo | 30 to 300 BPM, Tap Tempo supported. | |
| Time Signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | |
| Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets | |
| Others | Individual click volume control, wav import, timer | |
| Types | 10 | |
| Songs | Preset: 37 songs, User: 1 song | |
| Import Limit | 1,000 files | |
| Maximum Loadable Sample Time | 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo) | |
| Sample Format | WAV | |
| Recording Time | Internal Memory | Maximum of 90 seconds |
| USB Flash Drive | Maximum of 90 minutes per file | |
| Format | Record/playback: WAV (44.1 kHz, 16 bit, stereo) | |

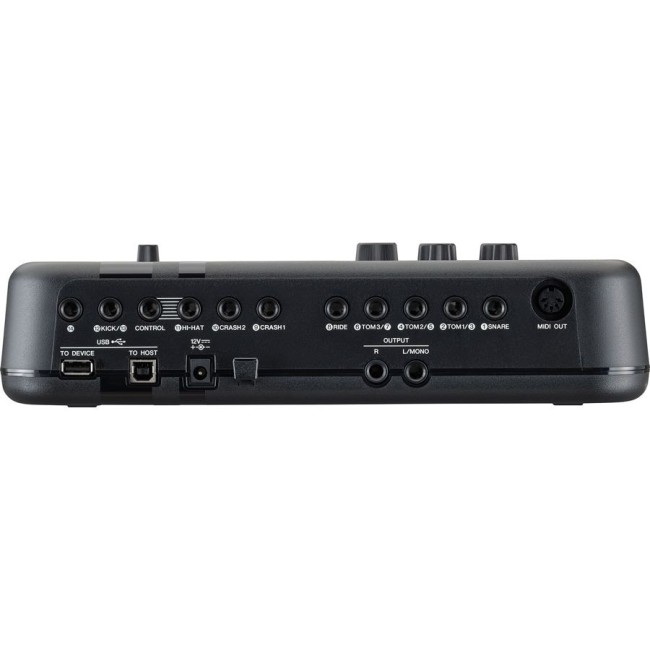

| Connectors | DC IN | DC IN (+12V) |
| Headphones | Headphones (standard stereo phone jack × 1) | |
| AUX IN | AUX IN (stereo mini jack × 1) | |
| Output | OUTPUT L/MONO, R (standard phone jack, one for each) | |
| USB | USB TO DEVICE, USB TO HOST | |
| MIDI | MIDI OUT | |
| Trigger Input | Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used) | |
| Display | Full Dot LCD (128×64 dot) | |
| Accessories | AC adapter (PA-150 or an equivalent recommended by Yamaha)*2, Owner’s Manual, module holder, module holder wing bolts (× 4) Cubase AI Download Information (*2 May not be included depending on your area. Check with your local Yamaha dealer.) | |
