Yamaha DHR15M Powered Loudspeaker

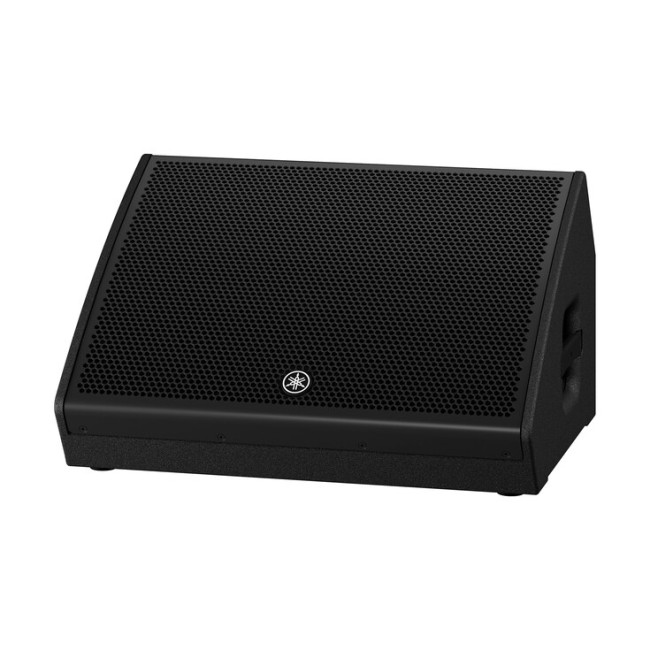

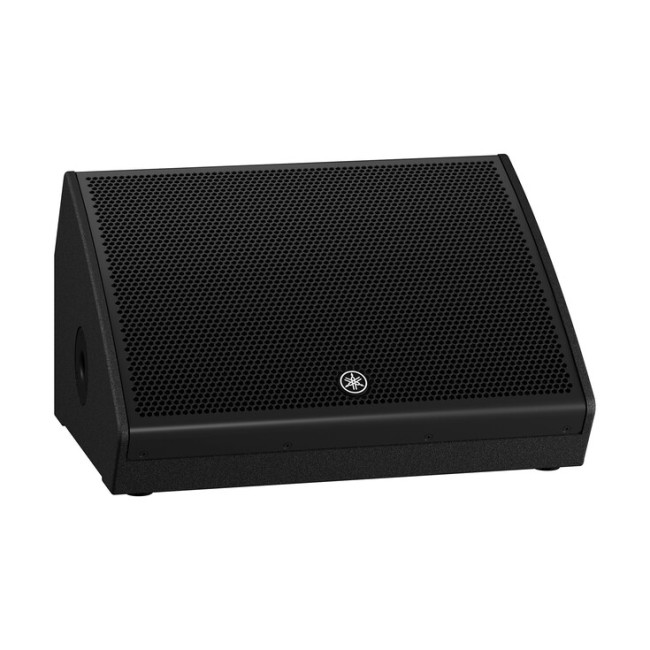

- The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor.
- Brand:
- Product Code:DHR15M
The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.
The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
A pole socket for use on a stand
Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
| General specifications | Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
|---|---|---|---|
| Frequency range (-10dB) | 50 Hz - 20 kHz | ||
| Coverage area | H65ﾟ x V75ﾟ | ||
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) | ||
| Maximum Output Level (Measured peak, IEC noise@1m) | 131 dB SPL | ||

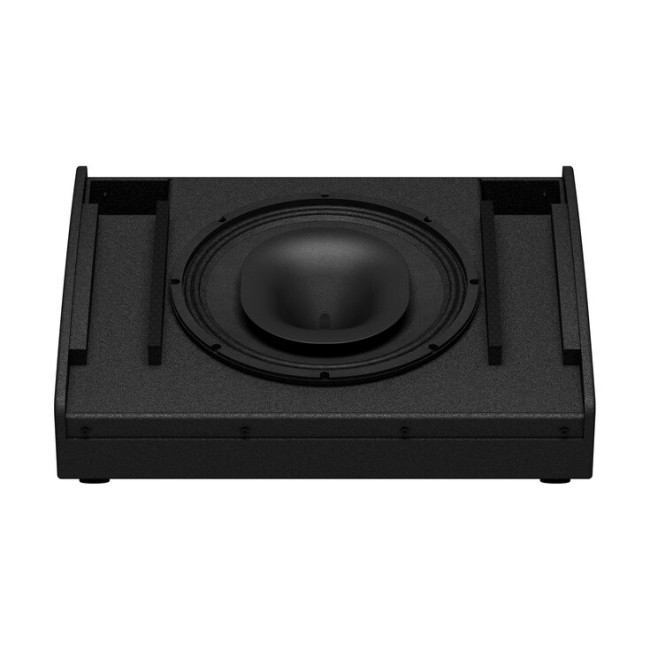

| Components | LF | Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite | |
| HF | Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite | ||
| Amplifier class | Class-D | ||
| Power rating | Dynamic | 1,000 W (LF: 800 W, HF: 200 W) *1 | |
| Continuous | 465 W (LF: 400 W, HF: 65 W) | ||
| Cooling | Fan cooling, 4 speeds | ||
| Power consumption | 74 W (1/8power), 18 W (Idle) | ||
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz | ||
| A/D D/A Converters | 24 bit 48 kHz Sampling | ||
| Processors | OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | ||

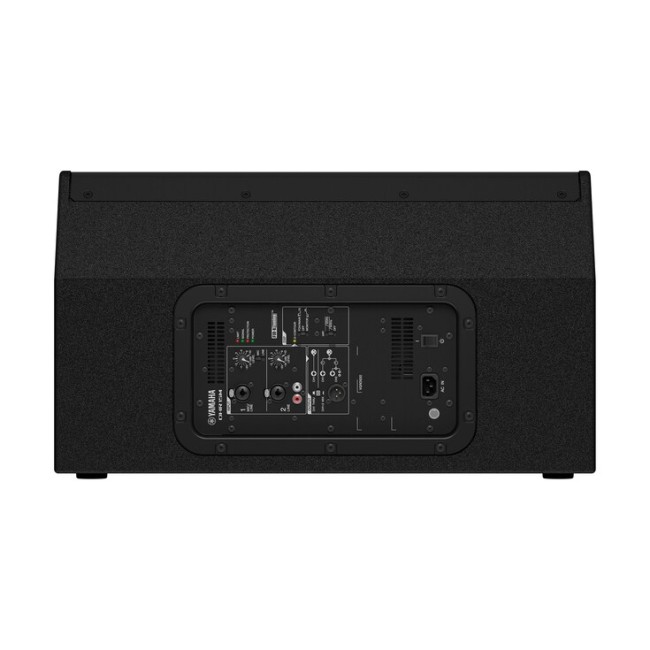

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | ||
| Cabinet material | Plywood | ||
| Finish | Durable Polyurea Painting, Black | ||
| Handle | Side x1 | ||
| Pole socket | Φ35 mm x1 (Side) | ||
| Rigging | - | ||
| Floor Monitor Angle | 57° | ||
| Dimensions | W | 642 mm (25.3") | |
| H | 369 mm (14.5") (with rubber feet) | ||
| D | 505 mm (19.9") | ||
| Net weight | 23.0 kg (50.7 lbs) | ||
| Options | - | ||
