The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments.

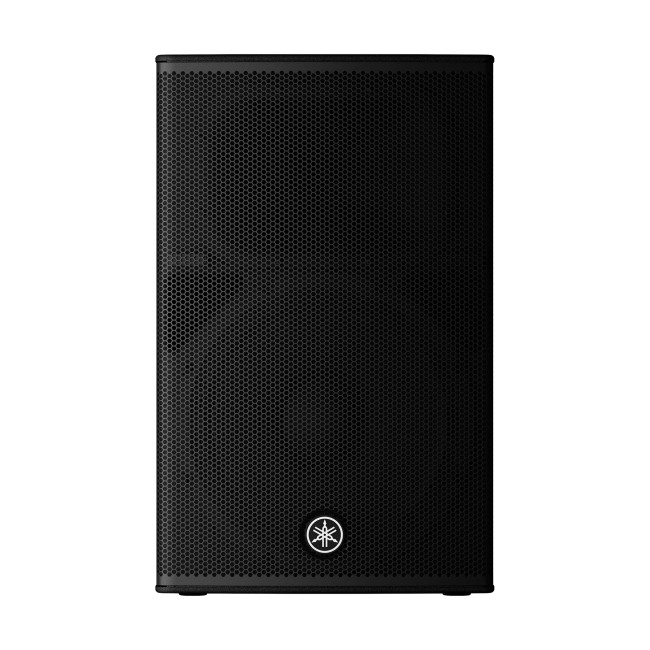

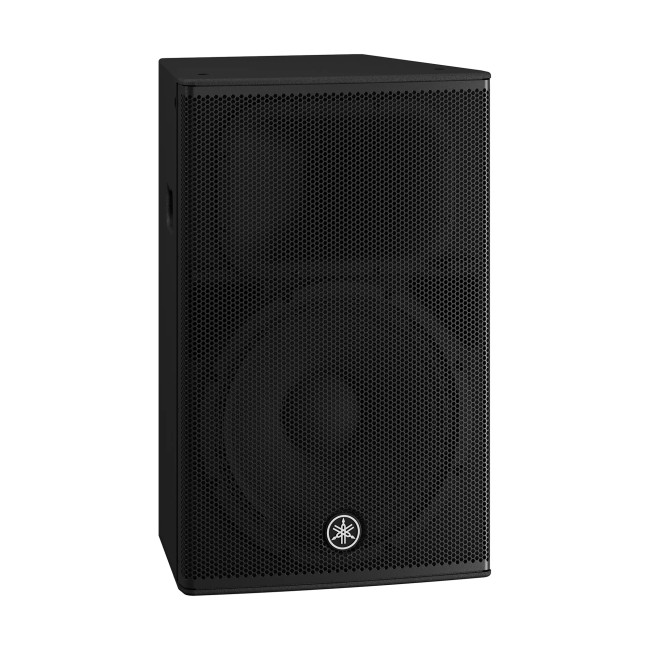

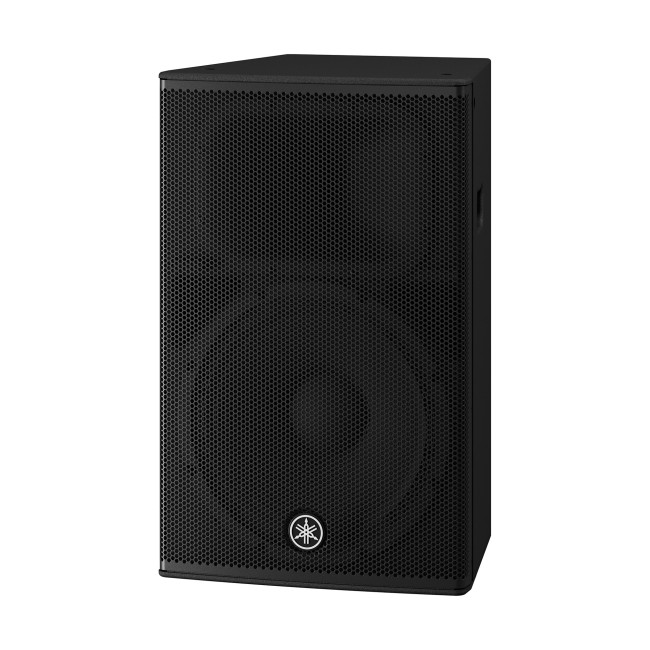

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability.
FEATURES
Featuring a plywood cabinet that delivers a clear sound with minimal vibration
Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
Compact size despite the 15-inch LF driver that provides excellent low frequency response
Dual-angle pole sockets offer both 0° or a -7° down tilt
Rigging points for use with eye bolts
Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
| CHR15 | ||
|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex | |
| Frequency range (-10dB) | 49 Hz - 20 kHz | |
| Coverage area | H90ﾟ x V60ﾟ | |
| Crossover | 2.0 kHz | |
| Nominal impedance | 8 Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 95 dB SPL |
| Peak (Calculated) | 125 dB SPL | |

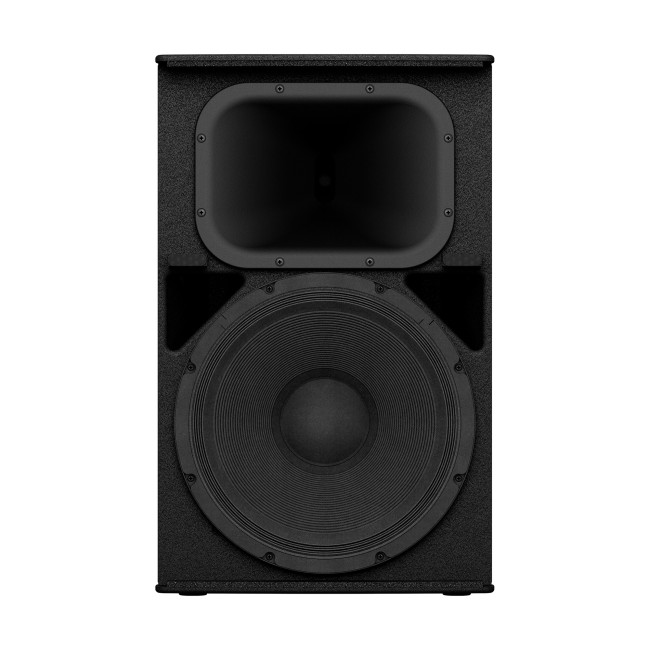

| Components | LF | Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite |
| HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite | |
| Power rating | NOISE | 250 W |
| PGM | 500 W | |
| PEAK | 1000 W | |

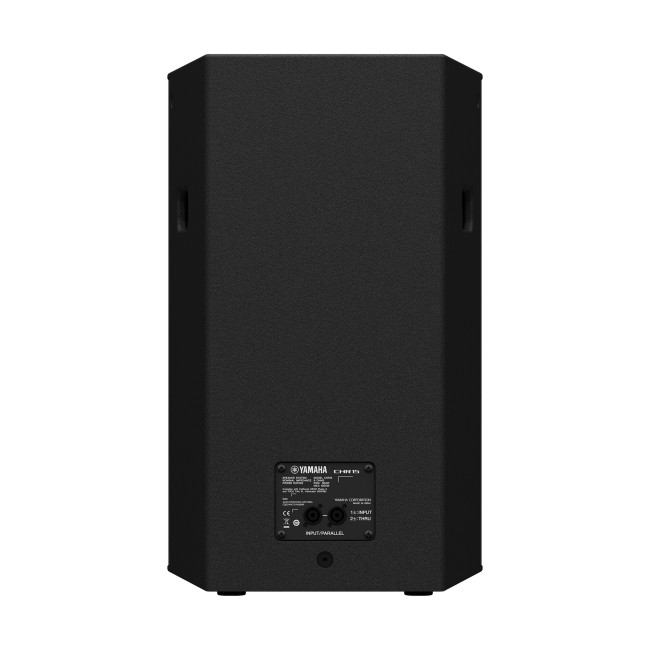

| I/O connectors | SpeakON NL4MP x 2 (Parallel) | |
| Cabinet material | Plywood | |
| Finish | Durable Polyurea Painting, Black | |
| Handle | Side x2 | |
| Pole socket | Φ35 mm x2 (Bottom,0° or -7°) |
|
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) | |
| Floor Monitor Angle | - | |
| Dimensions | W | 432 mm (17.0") |
| H | 692 mm (27.2") (with rubber feet) | |
| D | 405 mm (15.9") | |
| Net weight | 22.0 kg (48.5 lbs) | |
| Options | - | |
