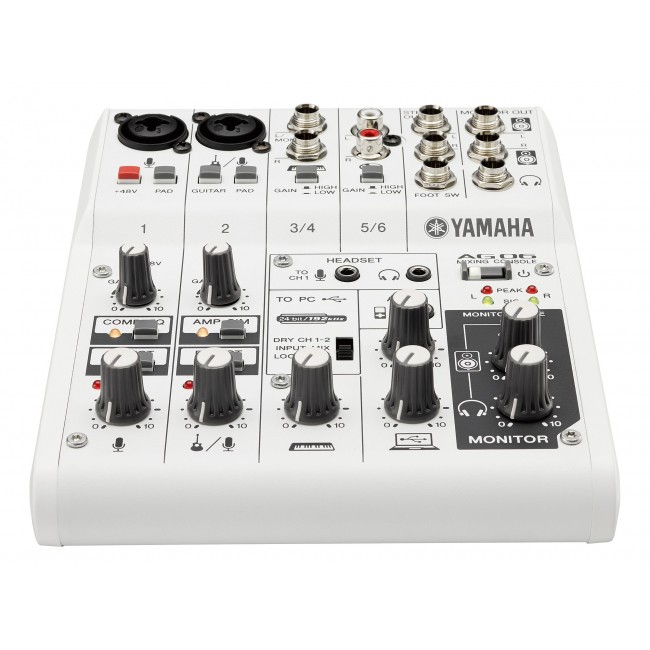

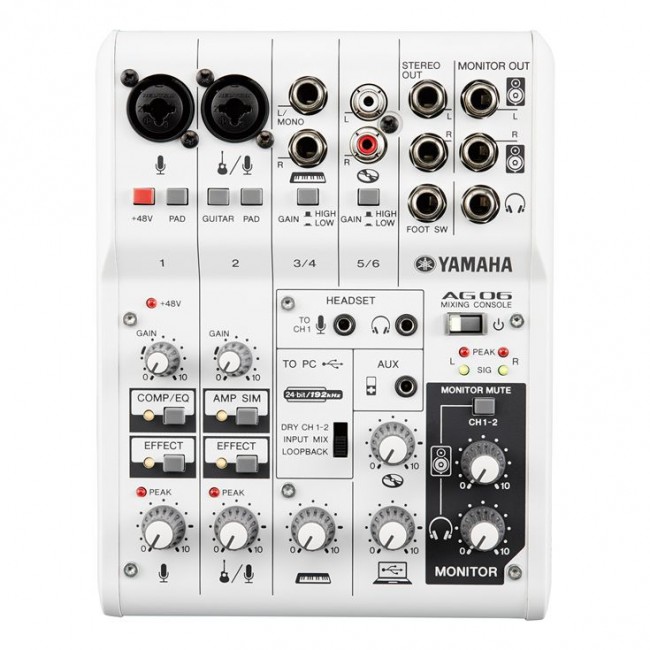

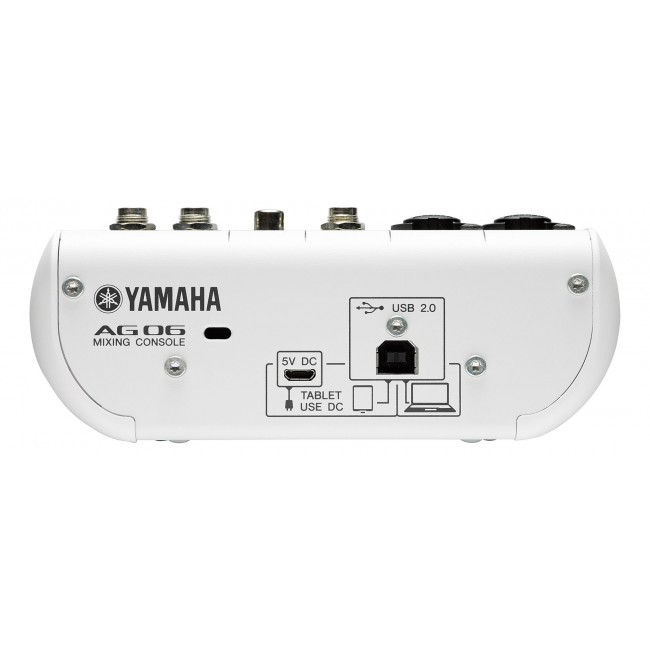

Multipurpose 6-channel mixer with USB audio interface
- High resolution (24-bit192kHz) 2-track audio recording and playback.
- Flexible LOOPBACK feature - perfect for live recording or webcasting.
- "D-PRE" studio quality mic preamps with high gain and low noise.
- Easy control and pro sound with 1-TOUCH COMP/EQ, EFFECT and AMP SIM processing.
- +48V phantom power on CH1 input for condenser mics and Dl boxes.
- Hi-Z input for guitars on CH2.
- iPad (2 or later) connectivity via Apple iPad Camera Connection Kit (requires external USB power supply)
- USB bus-powered for Mac & PC.
- Rugged metal chassis.
- Includes Cubase Al* downloadable version. *This is not bundled in some areas.
| AG06 | ||
|---|---|---|
| I/O | Phantom power | + 48 V |
| Input Channels | Mono[MIC/LINE] | 2 including HEADSET MIC (Plug-in Power) |
| Stereo[LINE] | 2 | |
| AUX | 1 | |
| Output Channels | STEREO OUT | 1 |
| MONITOR OUT | 1 | |
| PHONES | 2 including HEADSET PHONES | |
| Bus | Stereo: 1 | |
| Input Channel Function | PAD | 26 dB |
| PEAK LED | LED turns on when the signal reaches 3 dB below clipping level | |
| On-board processors | DSP | CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb) |
| Level Meter | USB Output Level; 2 x 2 point LED meter [PEAK, SIG] | |
| USB | USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| Power requirements | DC 5 V, 500 mA | |
| Power consumption | Max. 2.5 W | |
| System Requirements | OS | Windows 7 or later / Mac OS X 10.7 or later |
| Dimensions | W | 155 mm (6.1") |
| H | 63 mm (2.5") | |
| D | 202 mm (8.0") | |
| Net weight | 1.0 kg (2.2 lbs) | |
| Options | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A | |
| Others | Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C | |
