Product Code:AG01B

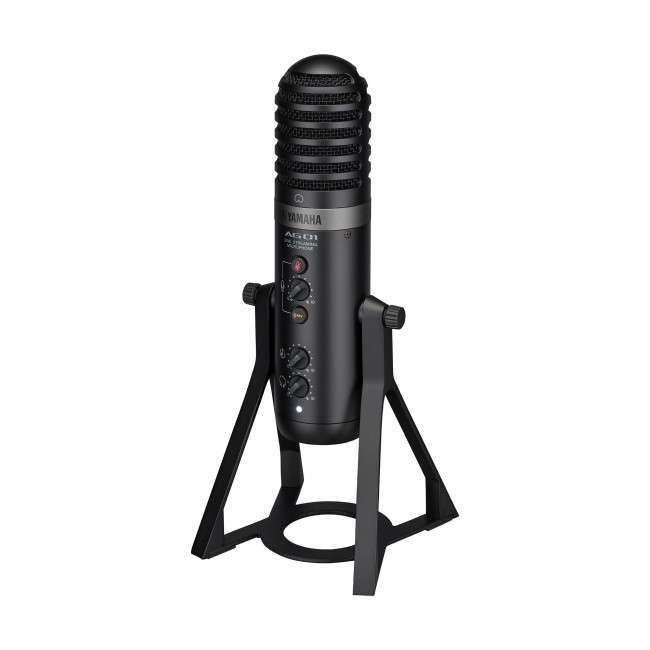

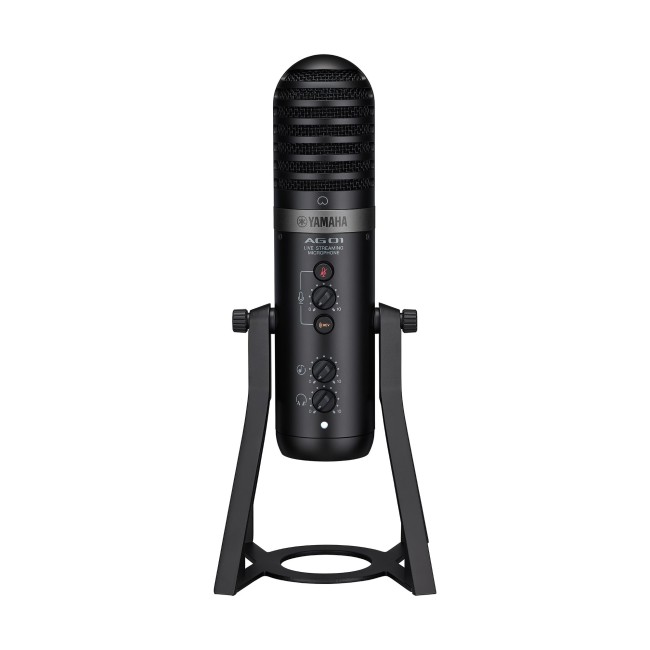

Yamaha AG01 Live Streaming USB Microphone - Black
- Studio-quality USB microphone integrated with mixer * Modern and retro design * Simple and intuitive control * Flexible connectivity * 4-pole mini in/out for smartphones * Loopback mode * Zero-latency DSP effects.
- Brand:
*only5 item(s) remaining
-
AED 1,333.50
- -
- +
*Rate inclusive of VAT. Delivery time: 2 - 4 days
FEATURES
|
|
|
|
|
| Powerful Bundle Sofware's | One Touch Reverb | Simple AG app Controller | Voice Chat, Configuration | Loopback Functionality |
| AG01 | ||
|---|---|---|
| Microphone Unit | Back electret condenser type | |
| Polar Pattern | Cardioid | |
| Adress Type | Side | |
| Frequency Response | 30 Hz - 20 kHz | |
| Max Input SPL | 110 dB (THD ≦1.0% at 1 kHz) | |
| Sensitivity | -34 dB ± 3 dB (0 dB=1 V/Pa, at 1 kHz) | |

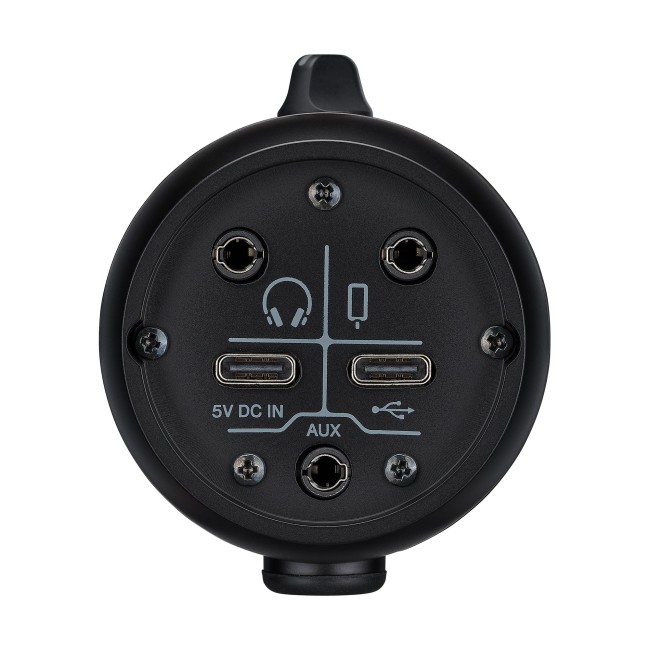

| Connector | USB Type-C | |
| Input Channels | Microphone | 1 (Mono condenser microphone) |
| AUX | 1 - Stereo mini | |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Output Channels | PHONES | 1 - Stereo mini |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 116 mm (4.6") |
| H | 281 mm (11.1") | |
| D | 118 mm (4.6") | |
| Net weight | 1.2 kg (2.6 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to + 40 ℃ | |
