Product Code:NS800APIANOBLACK

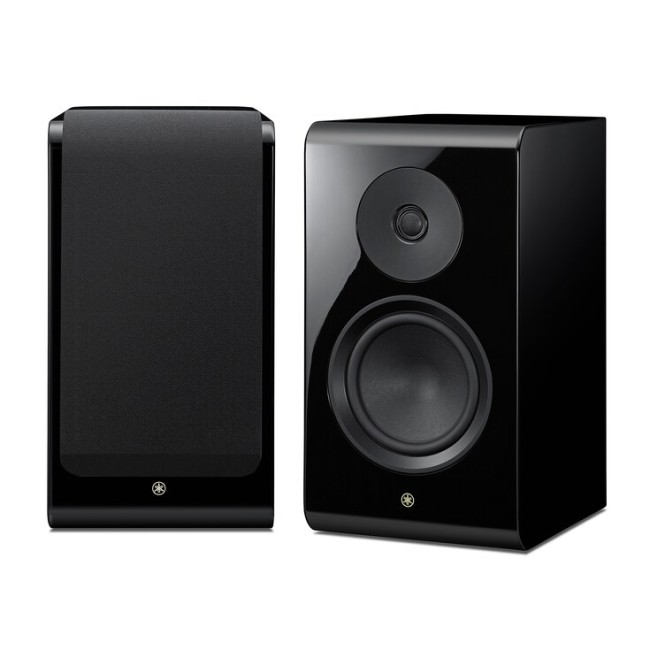

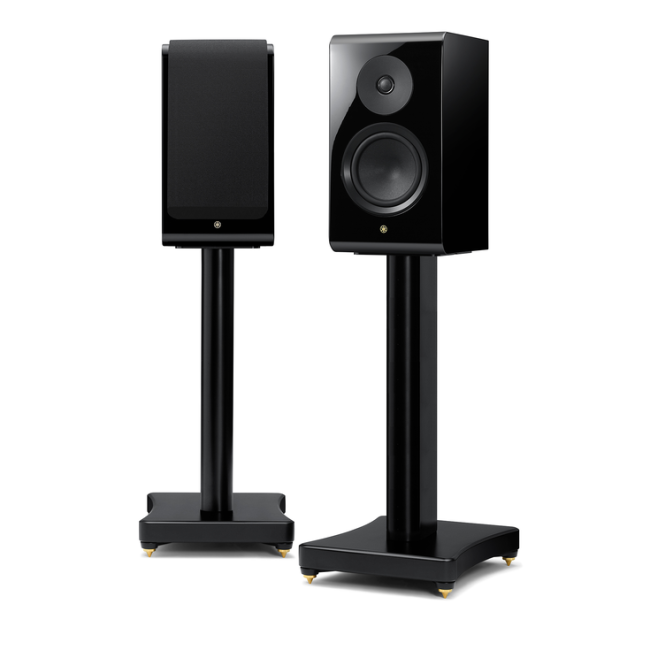

The NS-800A is an uncompromising 2-way speaker that provides faithful timbre of all musical instruments and a spacious sound stage.
2 way bookshelf speaker with 16cm woofer
A newly developed "Harmonious Diaphragm™" made of a blend of materials, including Zylon® and spruce, for true tonal balance
Ideal cabinet construction, designed with vibration analysis technology cultivated in our crafting of musical instruments
Yamaha-patented Acoustic Absorber optimized for the NS-800A
Yamaha-patented R.S. (Resonance Suppression) Chamber for suppressing unwanted resonance
Authentic piano finish adds to the luxurious joy of ownership
High-quality parts for crossover circuitry, including audio capacitors made by Mundorf of Germany
Solid brass speaker terminals for highly secure connection and luxurious feel
| Specifications | Type | 2 way Bass-Reflex Type | |
|---|---|---|---|
| Woofers | 16cm (6-1/2") cone type | ||
| Tweeter | 3cm (1-1/4") dome type | ||
| Frequency Response | 40 Hz-65 kHz (-10 dB), -100 kHz (-30 dB) | ||
| Nominal Input Power | 40 W | ||
| Maximum Input Power | 120 W | ||
| Sensitivity | 86.5 dB | ||
| Crossover Frequencies | 2.6 kHz | ||
| Impedance | 6 ohms (minimum 3.8 ohms) | ||
| Dimensions (W x H x D) | 231 x 420 x 358; 9-1/8" x 16-1/2" x 14-1/8" | ||
| Weight | 13.0 kg (28.7 lbs) | ||
| Accessories | Accessories | Front Grille x 1, Cushion x 4 | |
