Axis Proton is a custom-designed computer, optimized through meticulous selection of components to run Waves audio applications such as the 32-channel eMotion LV1 live mixer and SuperRack live plugin rack.
With its SoundGrid connectivity, Axis Proton integrates seamlessly with SoundGrid I/Os and servers, acting as the “brain” of a SoundGrid system. Designed to perform with maximum stability, Axis Proton is optimized for use in live setups of up to 32 stereo channels.

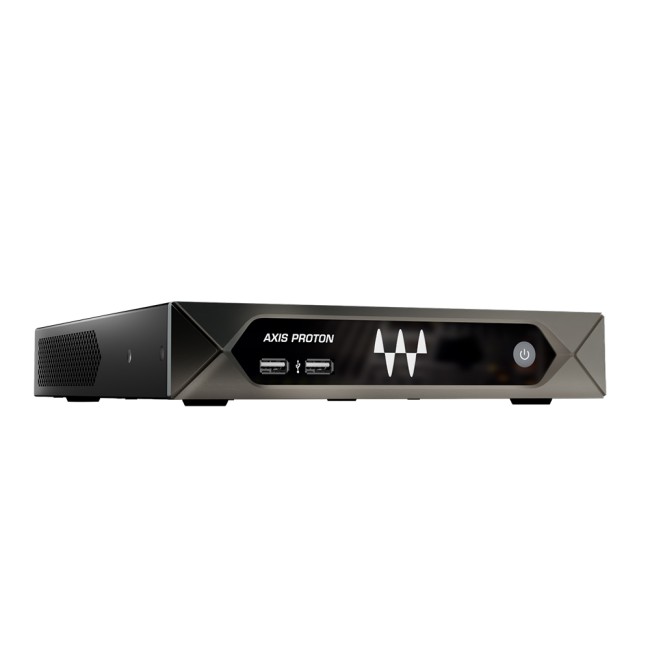

With sleek industrial design for elegance and durability, the half-rack 1U slick aluminum casing can be easily mounted using rack ears or placed side-by-side with an additional half-rack 1U device within a rack mounting system. Combine the Axis Proton with the Proton SoundGrid Server and the eMotion LV1 live 32-channel mixer to build the ultimate compact live mixing system for a 32-channel live sound setup.
CPU: Intel® Celeron J4125
RAM: 8 GB
LAN Card: Intel I211/Realtek RTL8411
Length: 22 cm / 8.7 in
Height: 4.2 cm / 1.7 in
Depth: 27.7 cm / 10.9 in
Device Weight: 2.1 kg / 4.6 lb
Package Weight: 3.2 kg / 7 lb
110/220V 15 W
Operating Environment temperature range:
50° to 95°F / 10° to 35°C
Max Environment temperature:
104°F / 40°C
