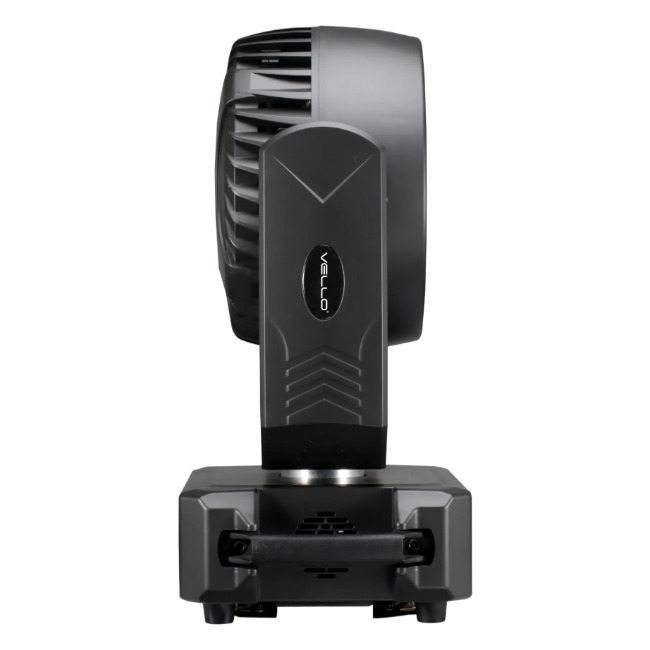

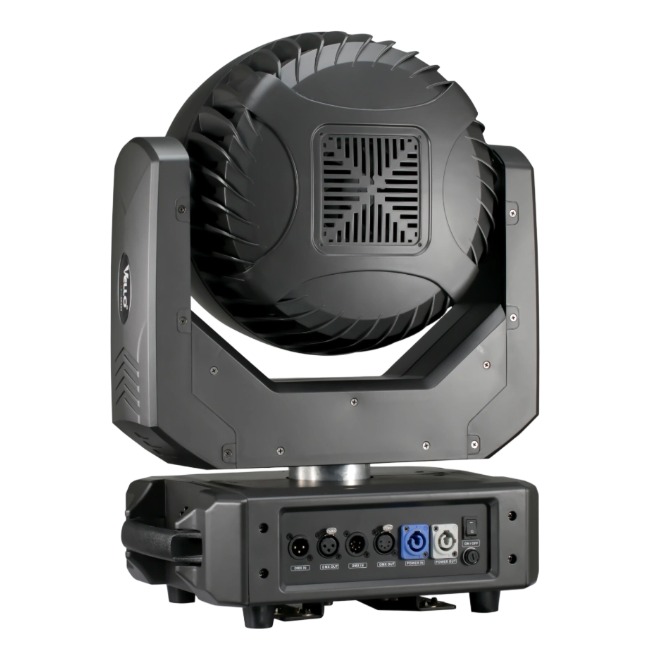

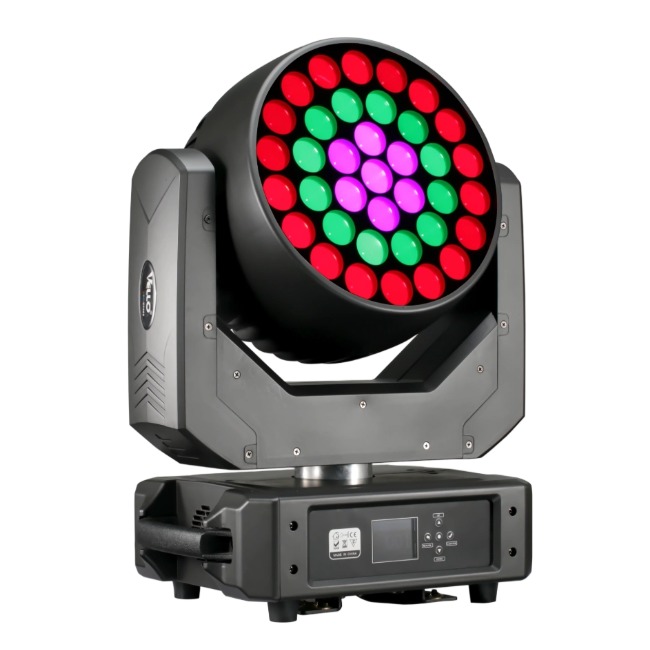

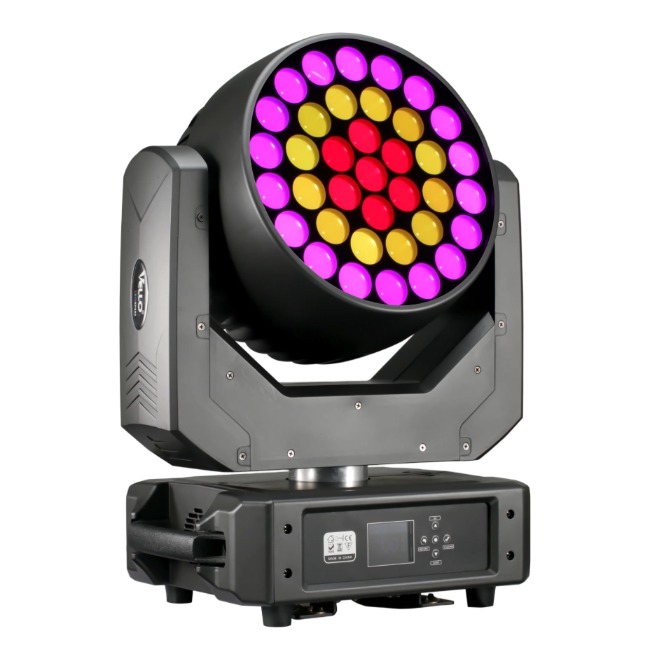

VELLO XP800 37x20W RGBW LED Moving Head Wash Light

  • The VELLO XP800 is a professional 600W LED wash moving head featuring 37x20W OSRAM RGBW LEDs, 3-ring pixel control, 6°-50° motorized zoom, and adjustable CTO from 2700K to 8000K for exceptional stage lighting performance
  • Brand:
  • Product Code:LEDXP8004IN1
Contact for Price
  • 37 x 20W OSRAM RGBW LEDs
  • Powerful 600W LED wash fixture
  • 3-ring pixel mapping control
  • Electronic zoom range from 6° to 50°
  • Adjustable CTO from 2700K to 8000K
  • 540° Pan and 310° Tilt movement
  • High-speed 3-phase motors
  • DMX512, Art-Net and RDM compatible
  • Intelligent temperature-controlled cooling
  • Full-color LCD display interface

FEATURES

37 x 20W OSRAM RGBW LEDs
Delivers powerful output, rich colors, and excellent color mixing performance.

3-Ring Pixel Control
Individual LED control enables advanced pixel mapping and dynamic visual effects.

Electronic Zoom System
Motorized zoom adjustment from 6° to 50° for beam and wash applications.

Adjustable CTO Control
Selectable color temperature from 2700K to 8000K with multiple preset settings.

High-Brightness Wash Performance
Designed for professional stages, theatres, concerts, and live productions.

Fast Pan & Tilt Movement
Equipped with high-speed 3-phase motors for smooth and precise positioning.

Advanced Control Protocols
Supports DMX512, Art-Net, and RDM for flexible integration into professional lighting systems.

Intelligent Cooling System
Temperature-controlled fans and advanced airflow design ensure reliable operation.

Professional LCD Interface
Full-color LCD display provides convenient setup and navigation.

Long-Life LED Technology
OSRAM LED engine provides an operating life of up to 100,000 hours

SpecificationDetails
ModelLEDXP8004IN1
BrandVELLO
TypeLED Wash Moving Head
Light Source37 x OSRAM RGBW 4-in-1 LEDs
LED Power20W Each
Total Power600W
Zoom Range6° - 50°
CTO Range2700K - 8000K
Pixel Control3-Ring Pixel Mapping
Pan Movement540°
Tilt Movement310°
Motor TypeDual High-Speed 3-Phase Motors
DMX Channels16 / 28 Channels
Control ProtocolsDMX512, Art-Net, RDM
DMX Connection3-Pin & 5-Pin DMX In/Out
Power ConnectionPowerCon In/Out
DisplayFull Color LCD
Cooling SystemIntelligent Temperature-Controlled Cooling
Power SupplyAC 90V-240V, 50/60Hz
LED LifetimeUp to 100,000 Hours
IP RatingIP20
Operating Temperature-10°C to 40°C
HousingHeat-Resistant Plastic & Metal
Colour OptionsBlack, Silver, White
Dimensions413 × 210 × 545 mm
Net Weight16.8 kg
Gross Weight19.5 kg
