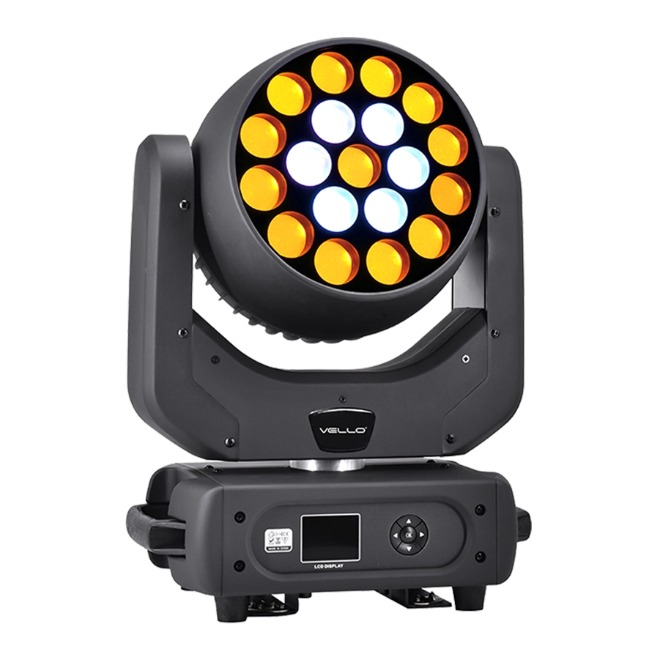

VELLO Max Wash X7 RGBACLL LED Moving Head Wash Light
- The VELLO Max Wash X7 is a professional 750W LED wash moving head featuring 19x40W RGBACLL 7-in-1 LEDs, 3-ring pixel control, 6°-50° motorized zoom, and ultra-high CRI up to 98 for premium stage lighting applications
- Brand:
- Product Code:LEDMAXWASHX77IN1
- 19 x 40W RGBACLL 7-in-1 LEDs
- Powerful 750W LED wash fixture
- Ultra-high CRI 97-98
- 3-ring pixel mapping control
- Motorized zoom from 6° to 50°
- Four preset CTO settings
- DMX512, Art-Net and RDM support
- 540° Pan and 310° Tilt movement
- Full-color LCD display
- Ideal for concerts, TV studios, and live productions
FEATURES
19 x 40W RGBACLL 7-in-1 LEDs
Delivers exceptional brightness, rich color mixing, and powerful wash effects.
Ultra-High CRI Performance
CRI rating of 97-98 ensures accurate color reproduction for professional productions.
3-Ring Pixel Control System
Enables advanced pixel mapping, animation effects, and creative lighting designs.
Wide Electronic Zoom Range
Motorized zoom adjustment from 6° to 50° provides maximum coverage flexibility.
Multiple CTO Presets
Selectable color temperatures of 3200K, 4200K, 5600K, and 6800K.
Professional Wash Output
Suitable for concerts, theatres, TV studios, houses of worship, and touring productions.
Fast Pan & Tilt Movement
High-speed 3-phase motors provide smooth 540° pan and 310° tilt movements.
Advanced Control Compatibility
Supports DMX512, Art-Net, and RDM protocols for professional lighting systems.
Professional Connectivity

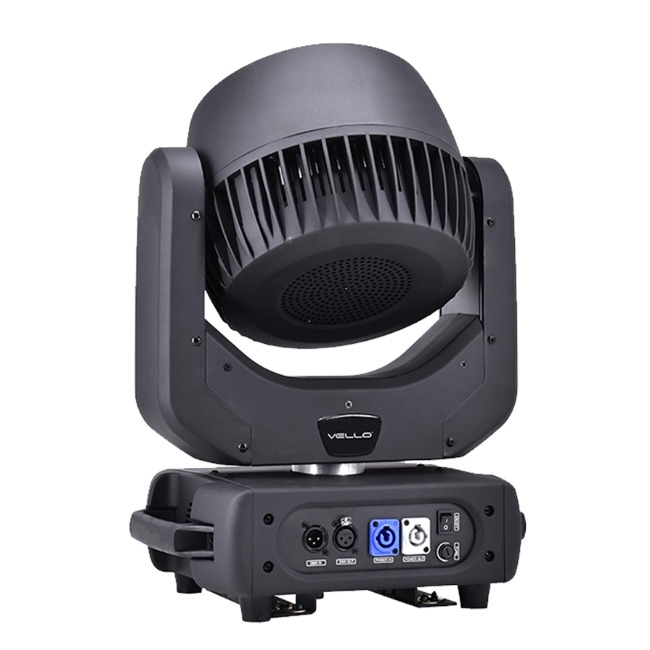

Features PowerCON power connections and 3-pin/5-pin DMX interfaces.
Long-Life LED Technology
LED system offers an operational lifespan exceeding 100,000 hours
| Specification | Details |
|---|---|
| Model | LEDMAXWASHX77IN1 |
| Brand | VELLO |
| Type | LED Wash Moving Head |
| Light Source | 19 x 40W RGBACLL 7-in-1 LEDs |
| Total LED Power | 760W |
| Power Consumption | 750W |
| CRI | 97-98 |
| CTO Presets | 3200K, 4200K, 5600K, 6800K |
| Zoom Range | 6° - 50° |
| Pixel Control | Dot Matrix in 3 Circles |
| DMX Channels | 18 / 36 |
| Control Protocols | DMX512, Art-Net, RDM |
| Control Modes | DMX512, Standalone, Master/Slave |
| Pan Movement | 540° |
| Tilt Movement | 310° |
| Motor Type | Dual High-Speed 3-Phase Motors |
| Display | Full Color LCD |
| DMX Connections | 3-Pin / 5-Pin DMX In/Out |
| Power Connections | PowerCON In/Out |
| Operating Temperature | -10°C to 40°C |
| LED Lifetime | Over 100,000 Hours |
| IP Rating | IP20 |
| Housing | Heat-Resistant Plastic & Metal |
| Dimensions | 362 x 240 x 500 mm |
| Weight | 14.2 kg |
