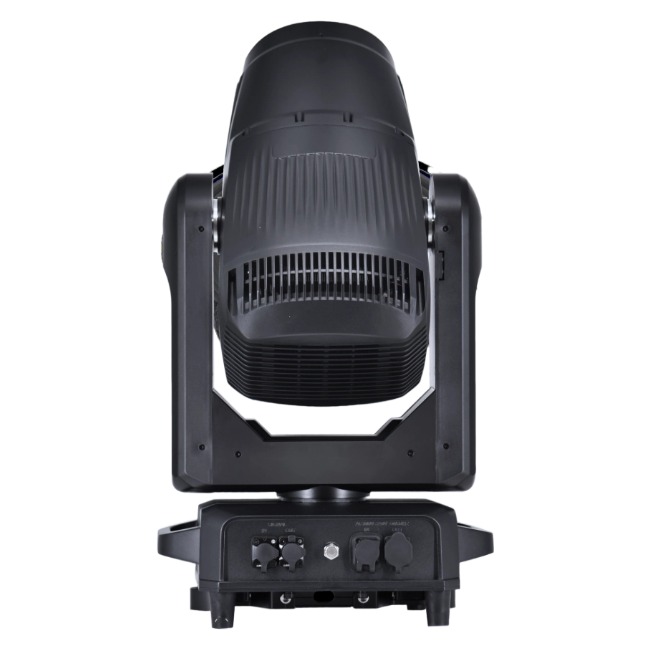

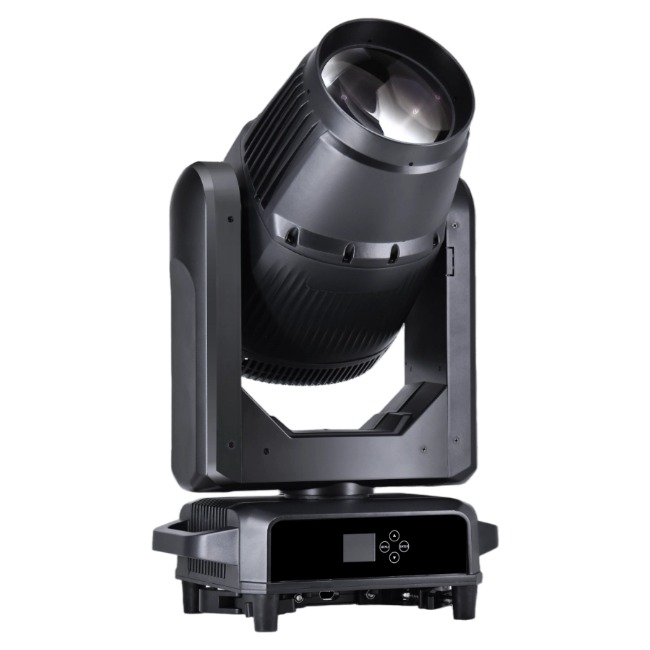

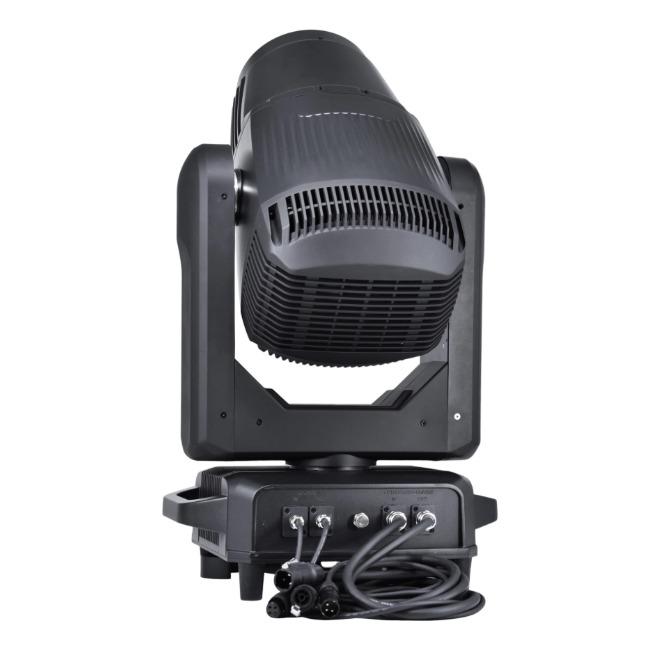

VELLO AK550IP66BEAM IP66 Beam Spot Wash Moving Head
- The VELLO AK550IP66BEAM is a professional IP66-rated Beam Spot Wash moving head featuring a Japanese Ushio 390W lamp, 2° beam angle, dual prisms, gobos, frost effects, and powerful outdoor-ready performance
- Brand:
- Product Code:AK550IP66BEAM
- IP66-rated outdoor moving head
- Japanese Ushio 390W lamp
- Beam, Spot & Wash 3-in-1 functionality
- 2° ultra-sharp beam angle
- 15 gobos plus open
- 14-color wheel
- Dual prism effects
- Linear frost and focus system
- 16-bit pan and tilt movement
- LCD touch display interface
FEATURES
Beam, Spot & Wash 3-in-1 Design
Combines multiple lighting applications in a single professional fixture.
Japanese Ushio 390W Lamp
Delivers powerful brightness, excellent beam quality, and reliable performance.
IP66 Outdoor Protection
Weatherproof construction provides protection against rain, dust, and harsh outdoor conditions.
Ultra-Sharp 2° Beam Angle
Creates highly concentrated aerial effects with excellent projection distance.
15 Gobos Plus Open
Provides a wide range of pattern projection options for creative stage designs.
14-Color Wheel
Offers vibrant colors and smooth transitions for dynamic lighting effects.
Dual Prism System
Includes 8-facet prism and 16-facet honeycomb prism for impressive beam multiplication effects.
Linear Frost & Focus Control
Allows smooth wash effects and precise focus adjustments.
16-Bit Pan & Tilt Movement
Provides highly accurate positioning with 540° pan and 270° tilt rotation.
Professional Control Options
Supports DMX512, Master/Slave, and Standalone operating modes
| Specification | Details |
|---|---|
| Model | AK550IP66BEAM |
| Brand | VELLO |
| Type | IP66 Beam Spot Wash Moving Head |
| Light Source | Japanese Ushio 390W Bulb |
| Power Consumption | 550W |
| Input Voltage | AC 90V-250V, 50/60Hz |
| Beam Angle | 2° |
| Color Temperature | 7800K |
| Aperture Diameter | 160mm |
| Gobos | 15 + Open |
| Color Wheel | 14 Colors |
| Prism Effects | 8-Facet Prism, 16-Facet Honeycomb Prism |
| Frost | Linear Frost |
| Focus | Linear Focus |
| Pan Movement | 540° |
| Tilt Movement | 270° |
| Movement Resolution | 16-Bit |
| Display | LCD Touch Display |
| Control Modes | DMX512, Master/Slave, Standalone |
| Working Position | Any Safe Working Position |
| Operating Temperature | -10°C to 40°C |
| Lamp Lifetime | 1500 Hours |
| Dimensions | 388 × 262 × 700 mm |
| Weight | 25 kg |
| Protection Rating | IP66 |
