Product Code:T001T

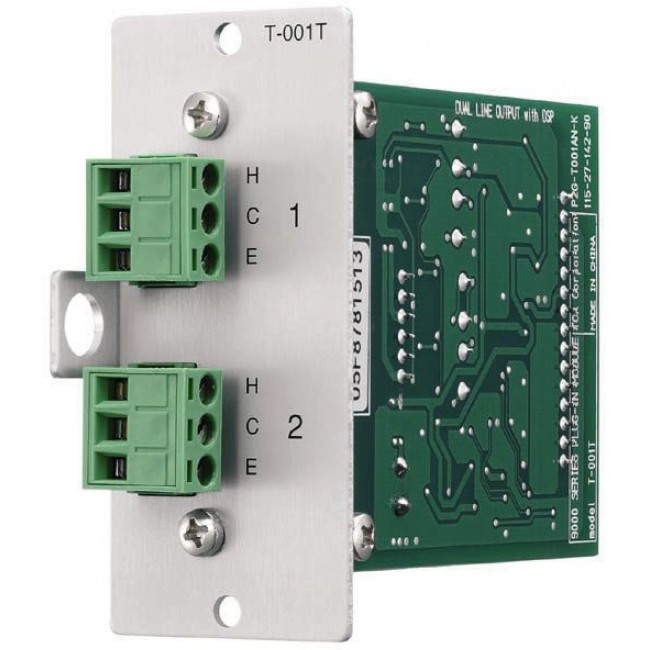

TOA T-001T Dual Line Output Expansion Module with DSP

  • The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs.
  • Brand:
  • AED 636.30

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ohm› up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently..

  • 2 balanced line outputs
  • Digital signal processing:
    - 10-band parametric EQ
  • - Bass / treble, loudness
    - High pass / low pass filters, compressor
  • Removable terminal block
  • Max. 3 output modules / chassis
T-001T
Power source

24 V DC

Frequency response

20 Hz - 20 kHz (+1 / -3 dB)

Distortion

< 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kOhm load)

Current consumption

35 mA

S/N ratio

73 dB (at 20 Hz - 20 kHz BPF)

Crosstalk

87 dB

Equalizer / Filter

Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
Speaker Equalizer: 10 (setup software has 30 TOA speaker presets)
High-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor: Depth: 1 - 5
Delay: 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only

Operating temperature

-10 °C to +40 °C

Finish

Aluminium, hairline

Dimensions

35 x 78 x 91.5 mm (W x H x D)

Weight

82 g

Accessory (included)

Removable terminal plug (3 pins) x 2, Module mounting screw x 2
