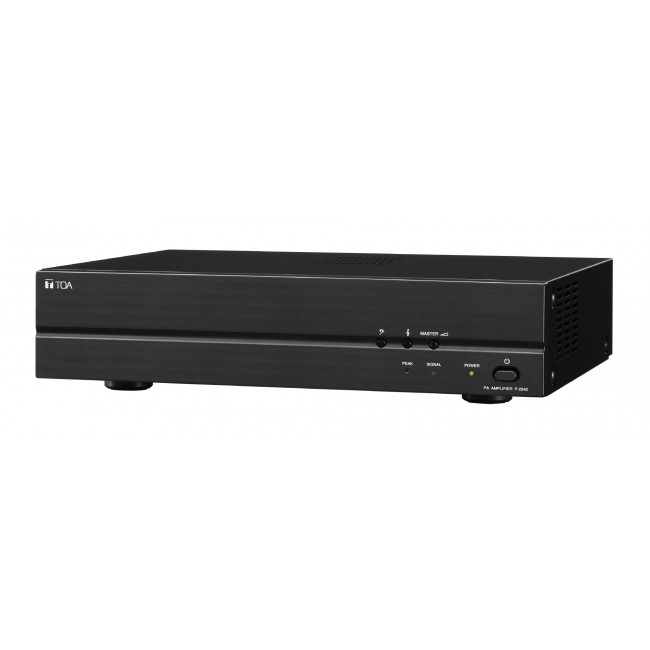

The P-2240 is power amplifier featuring high performance-to-cost suit for paging applications in schools, churches, offices and retail stores.
- 240 W output power
- 100 V line input allows connection to speaker output of A-2000 series amplifiers
- Remote power control allows operation independently from A-2000 series amplifiers
- Emergency bypass of master volume
- 2U high
| P-2240 | |
|---|---|
| Power source |
220 - 240 V AC, 50 / 60 Hz (or 24 VDC) |
| Rated output |
240 W |
| Frequency response |
50 Hz - 20 kHz |
| Distortion |
< 1 % (at 1 kHz, 1/3 rated output power) |
| Power consumption |
520 W (at rated output), 238 W (EN 62368-1) |
| Current consumption |
15 A |
| S/N ratio |
60 dB |
| Inputs |
Line-in 0 dBV, 10 kΩ, balanced, screw terminal 100 V line in: 40 dBV, 330 kΩ, unbalanced, screw terminal Power remote control: Make contact |
| Outputs |
Loop out: 0 dBV, 10 kΩ, balanced, screw terminal Speaker out: Balanced (floating) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) |
| Number of channels |
1 |
| Indicator |
Power, signal, peak |
| Finish |
ABS resin, Steel plate, black |
| Dimensions |
420 x 100.9 x 351.3 mm (W x H x D) |
| Weight |
13.2 kg |
