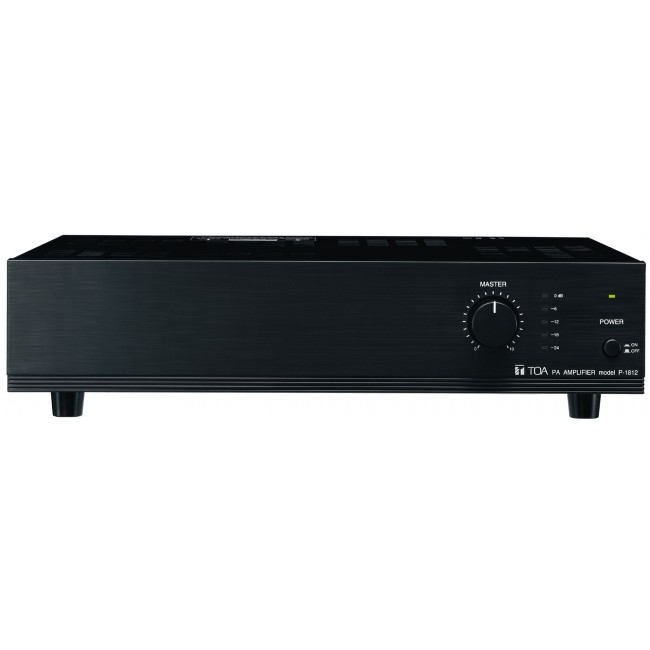

TOA P-1812 Mixer Power Amplifier

  • The P-1812 PA Amplifier delivers 120 W power output. It is so designed that its power ON/OFF can be remotely controlled when used in conjunction with A-1800 series PA Amplifiers.
  • Brand:
  • Product Code:P1812
Contact for Price

The P-1812 PA Amplifier delivers 120 W power output. It is so designed that its power ON/OFF can be remotely controlled when used in conjunction with A-1800 series PA Amplifiers (optional). The P-1812 can also be used as a stand-alone amplifier.

  • Allows more speakers in 1 system
  • Connection to an A-1800 Series amplifier‘s line out
  • Operation on AC or on DC 24 V to match installation requirements
  • Rear panel remote-in terminal for emergency control
  • Remote-control via main volume setting control: Output level for the emergency input
  • Switchable input levels: -10 dBV or 0 dBV
P-1812
Power source

220 - 240 V AC, 50 / 60 Hz

Rated output

120 W

Frequency response

50 Hz - 20 kHz

Distortion

< 2 % (at 1 kHz, rated power)

Power consumption

258 W

S/N ratio

100 dB (Master volume: min) (Band Pass: 20 – 20,000 Hz)

Over 97 dB (Master volume: max, INPUT LEVEL switch: 0 dB) Over 90 dB (Master volume: max, INPUT LEVEL switch: –10 dB)

Inputs

Line: 0 / -10 dBV, 10 kΩ, transformer balanced, RCA pin jack

Outputs























Line: 0 dBV, 600 Ω, unbalanced, RCA pin jack
Speaker out:
High impedance: 83 Ω (100 V), M4 screw terminal
Low impedance: 4 – 16 Ω, M4 screw terminal









Control input

POWER REMOTE: No-voltage make contact input, open voltage: 24 V DC short-circuit: under 1 mA, M3 screw terminal
EMERGENCY: No-voltage make contact input, open voltage: 24 V DC short-circuit: under 1 mA, M3 screw terminal

Number of channels

1

Indicator

5-point LED output level meter, Power indicator LED

Operating temperature

-10 to + 40 °C

Finish

ABS resin, Steel plate, hairline, black

Dimensions

420 x 107.7 x 367 mm (W x H x D)

Weight

12.2 kg

Accessory (included)

AC power cord 1, Terminal cover 1, Terminal cover mounting screw (M4 x 8) 2
