Product Code:DA250FHCE301C00

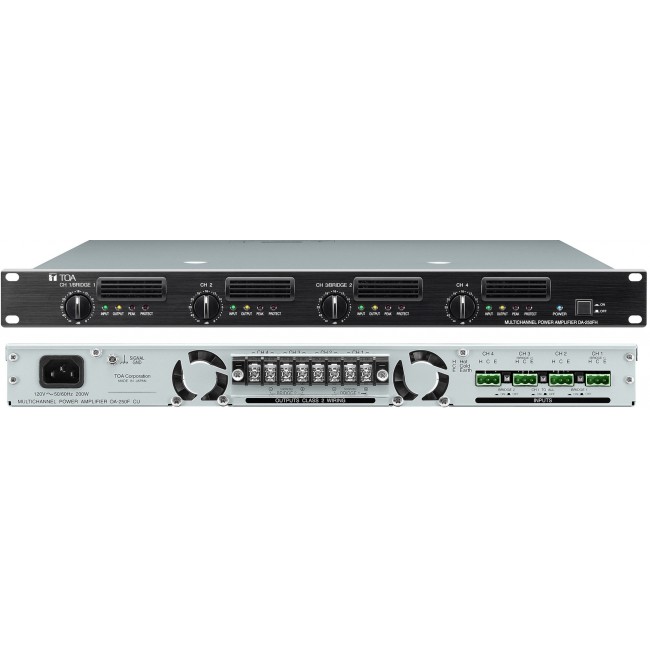

TOA DA-250FH Multichannel Power Amplifier

  • The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency.
  • Brand:
*Out of Stock
  • AED 8,608.95

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W × 4 channels (40 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).

Power Source 220 - 240 V AC
Amplification System Class D
Power Consumption 200 W (based on EN standards)
1150 W (rated output 100 V line
Input 4 circuits
10 kΩ
CH 1 mode ON/OFF switch (ON: CH 1 to All ch
Rated Output 4 channels: 250 W × 4 (100 V line
M4 screw terminal
Frequency Response 50 Hz - 20 kHz (-3 dB
Total Harmonic Distortion 0.1 % (1 kHz)
0.3 % (100 Hz - 20 kHz)
Protection Circuit Protection against excessive current flow due to overload
short circuit
temperature rise at power amp. heat sink (110 ℃ (230 ゜F) or more)
temperature rise inside the unit (80 ℃ (176 ゜F) or more)
S/N Ratio 100 dB (A-weighted)
Crosstalk 70 dB (A-weighted)
LED Indicator Power (blue) × 1
Peak (red) × 4
Cooling Forced air cooling
Operating Temperature -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum
Case: Plated steel sheet
Dimensions 482 (W) × 44 (H) × 401.8 (D) mm (18.98 × 1.73" × 15.82)
Weight 6.8 kg (14.99 lb)
Accessory Power cord (2 m (6.56 ft)) …1
Tamper-proof cap …4
Option Matching transformer: MT-251H
