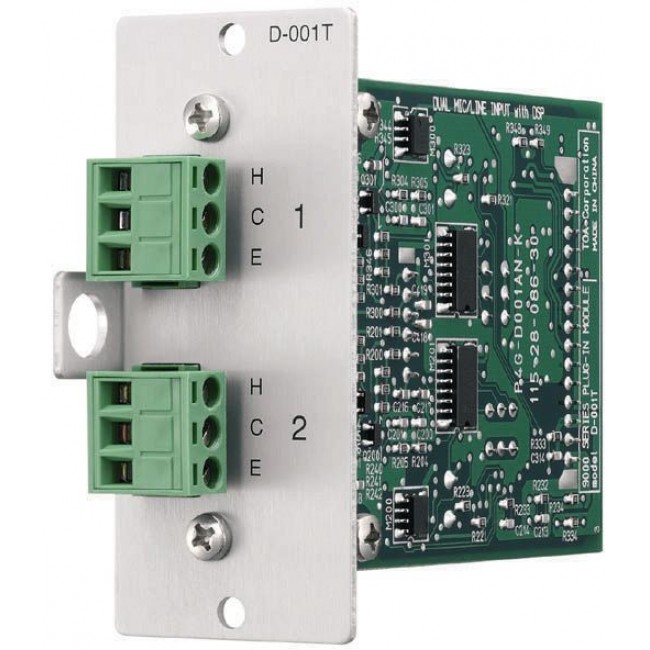

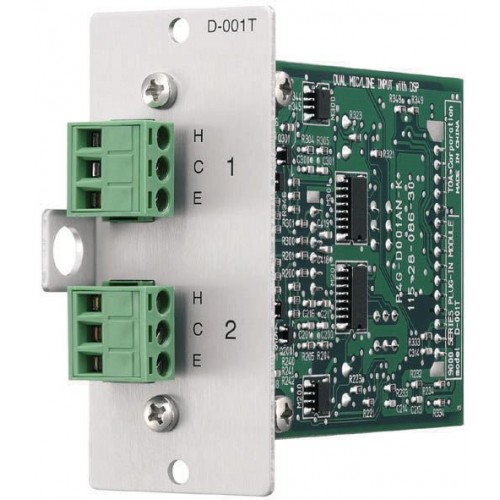

The D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSOR to two inputs independently.
- 2 balanced mic / line Inputs
- Digital signal processing:
- 10-band parametric EQ
- Bass / treble, loudness
- High pass / low pass filters, compressor - Adjustable sensitivity (-60 ... -10 dB, 9-steps)
- Phantom power (24 V DC)
- Removable terminal block
- Max. 4 input modules / chassis
- Required for VOX-function and input measure
| D-001T | |
|---|---|
| Power source |
24 V DC |
| Frequency response |
20 Hz - 20 kHz (+1 / -3 dB) |
| Distortion |
< 0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB) |
| Current consumption |
20 mA |
| S/N ratio |
73 dB (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB) |
| Crosstalk |
75 dB |
| Inputs |
2 channels, 3 kOhm (when the phantom power is ON)/10 kOhm (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins) |
| Equalizer / Filter |
Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5 |
| Operating temperature |
-10°C to +40°C |
| Finish |
Aluminium, hairline |
| Dimensions |
35 x 78 x 91.5 mm (W x H x D) |
| Weight |
82 g |
| Accessory (included) |
Removable terminal plug (3 pins) x 2, Module mounting screw x 2 |
| Sampling frequency |
