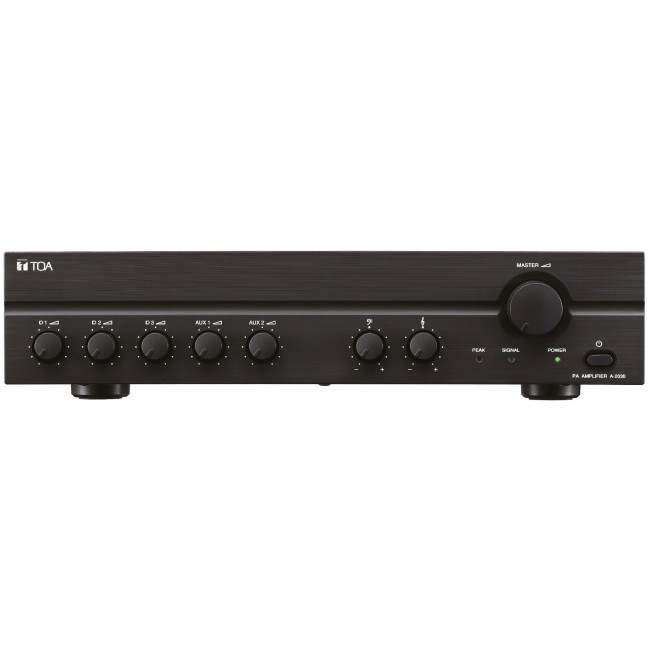

Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as shops and offices and other small to intermediate sized environments. A choice of different power outputs are offered as well as as paging override of BGM.
220 - 240 V AC, 50 / 60 Hz (24 V DC)
50 Hz - 20 kHz (±3 dB)
< 1 % (at 1 kHz, 1/3 rated output power)
34 W (EN 62368-1), 78 W (at rated output)
70/100 V, 4 Ω
2 A (24 V DC, at rated output)
60 dB (or more)
Volume for each input, bass, treble, master volume
MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).
for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack
ABS resin, Steel plate, black
420 x 100.9 x 280.3 mm (W x H x D)
