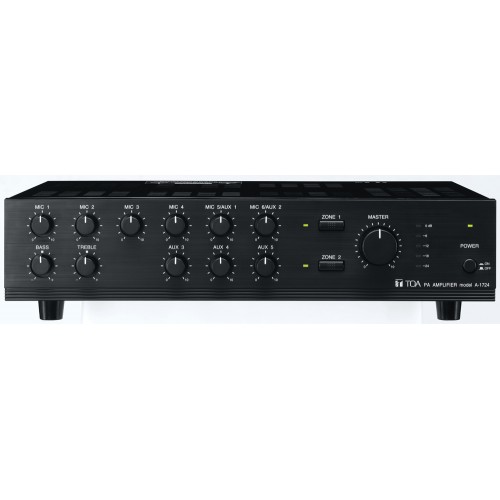

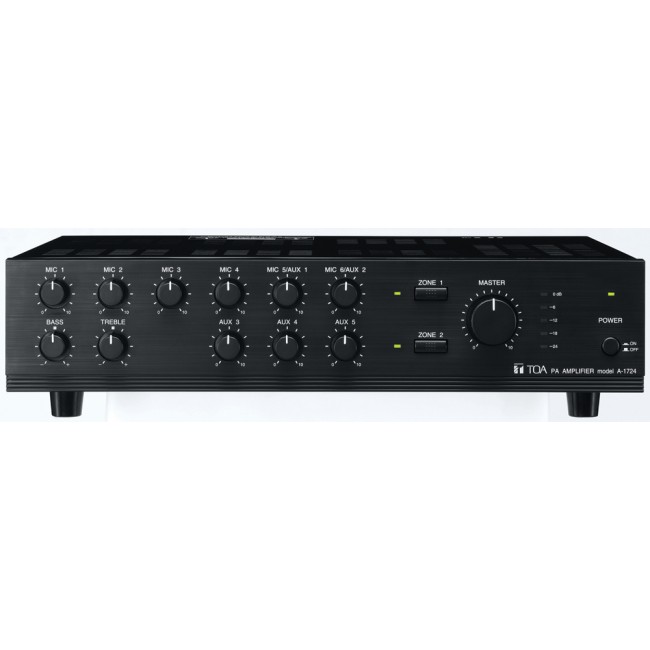

TOA A-1724 Mixer Power Amplifier

  • Equipped with 6 Microphone inputs and 5 AUX inputs
  • Brand:
  • Product Code:A1724

Equipped with 6 Microphone inputs and 5 AUX inputs (simultaneous use of 9 inputs possible), the A-1724 PA amplifier of 240 W is designed to suit the following PA system applications: announcements, BGM, and broadcasting in mosques, churches, large rooms, and factories.

  • 3 versions available: 60 W, 120 W or 240 W
  • User-friendly front panel allows easy operation
  • Individual zone speaker selection buttons enable broadcasting to 2 separate zones
  • One of 3 different program sources can be broadcasted
  • High-quality circuitry for wide frequency response (e.g. for CD music sources and hook-up of FGM / BGM speakers)
  • Recording output
  • 6 MIC inputs
  • AUX-1, 2, 3 inputs for tuner, cd player or other BGM sources
A-1724
Power source

220 - 230 V AC, 50 / 60 Hz

Rated output

240 W

Frequency response

50 Hz - 20 kHz (±3 dB)

Distortion

< 2 % (at 1 kHz, rated power)

Power consumption

532 W

Current consumption

or less

S/N ratio

100 dB (Master volume: min

)

Number of channels

1

Connectable microphones

6

Inputs

Mic 1-6 -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack
AUX 1 - 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31

equivalent and phone jack .
Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable.
AUX 3 - 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LlNE OUT and PWR AMP IN terminals)

Outputs

REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (42 Ω), 4 – 16 Ω

Finish

Steel plate, ABS resin, hairline, black

Dimensions

420 x 107.7 x 367 mm (W x H x D)

Weight

13.5 kg

Accessory (included)

Power cord x1, Terminal block cover x1, Terminal block cover mounting screw x2
