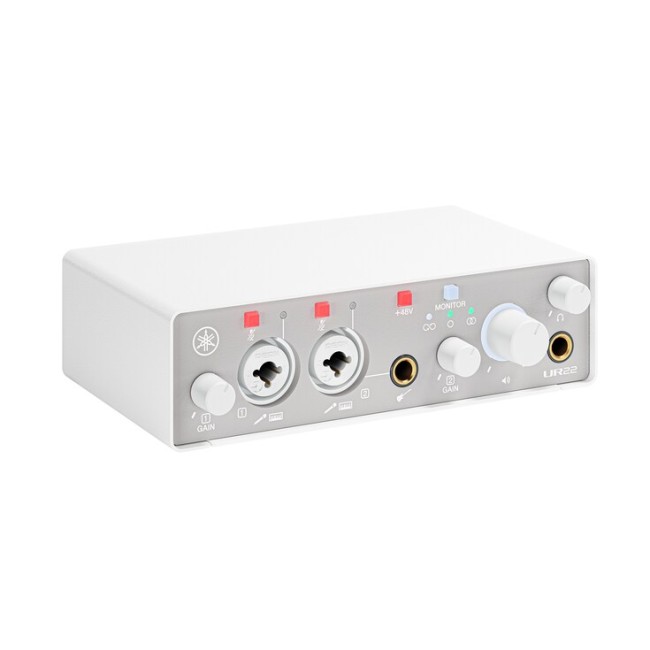

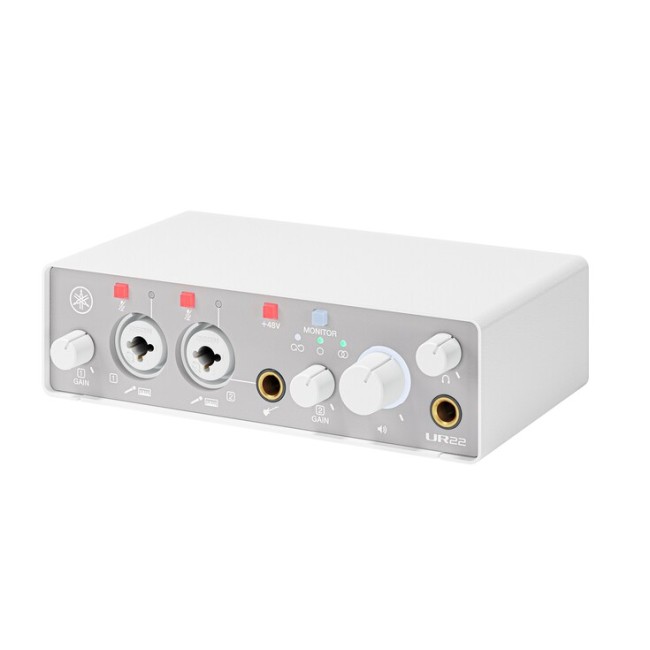

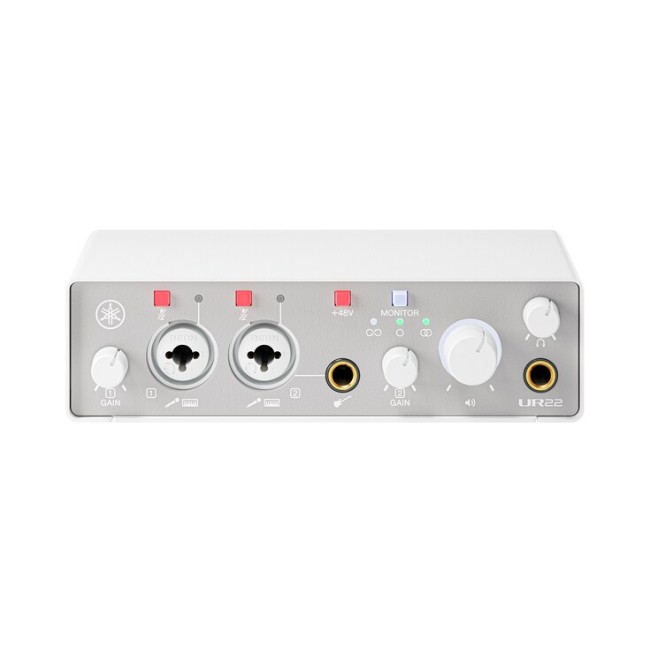

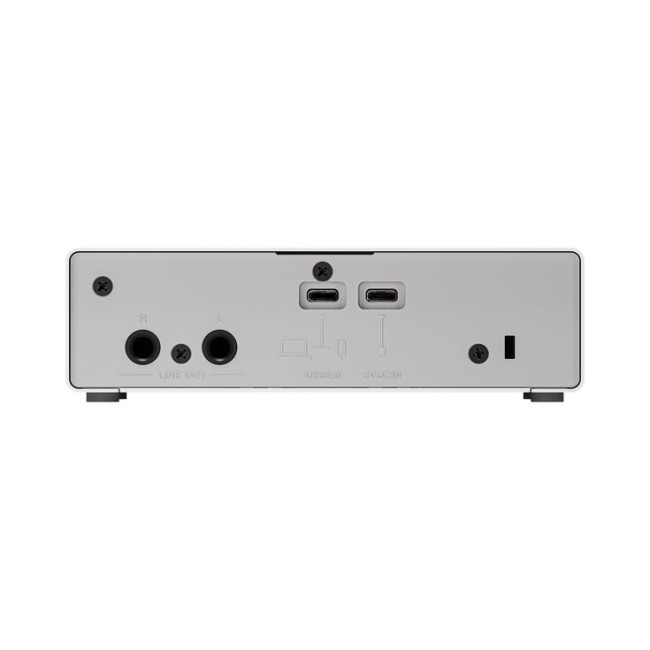

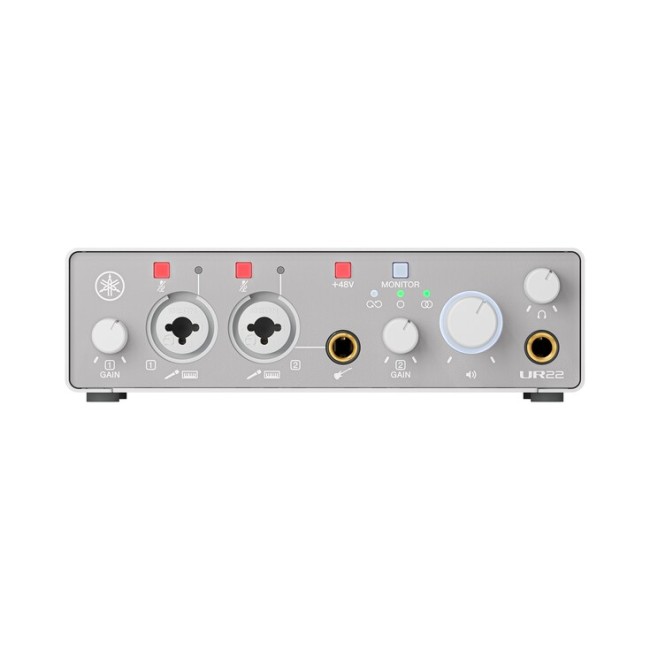

Steinberg UR22MK3 2-in/2-out USB-C Audio Interface - White

For singer-songwriters, multi-instrumentalists, and streamers ready to take their creativity further, the UR22MK3 is the perfect starting point.
Brand:
Product Code:UR22MK3W

Contact for Price

2-in/2-out USB-C Audio Interface with 24-bit/192kHz support, 2 Combo Inputs, Direct Monitoring, Loopback Function, and Steinberg software suite

FEATURES

USB type-C Audio Interface with 24-bit / 192 kHz support

106 dB dynamic range (Input)

2 UR mic preamp with +48 V phantom power

2 Mic/Line Combo input with mute button, 1 Hi-Z input

2 TRS line outputs, 1 Headphones output that is controlled by the output volume

Input mixing channels: 2 mono + 1 stereo loopback

Busses: 1 MIX (Stereo)

Simple Loopback function facilitates effortless live streaming

Direct monitoring switch offers latency-free direct hardware monitoring of input signal

Compact, lightweight metal housing available in multiple color options - Black / White

Includes Cubase AI for PC, Cubasis LE DAW app for iPhone/iPad, Steinberg Plus and USB cable

Dimensions (W x H x D): 158 x 47 x 102 mm, (6.2" x 1.9" x 4.0")

Net weight: 450 g (1.0 lb)

General Specifications
Analog Input 2 Mic/Line Combo (Input 2 supports Hi-Z)
Analog Output 2 TRS
USB TO HOST 1 (USB Type-C, 24-bit)
Phones 1 TRS (40 mW + 40 mW @ 40 Ohm)
DC Power USB Type-C bus power / Type-C DC IN
MIDI Not available
User Interface Input Gain, Mute, +48V Phantom Power, Monitor Switch, Main Volume, Headphones Volume
Recording & Playback 2-track recording / 2-track playback (USB)
Sampling Frequency 192 kHz – 44.1 kHz
Frequency Response +0.0 / -0.3 dB (20 Hz – 20 kHz)
Total Harmonic Distortion [MIC/LINE/Hi-Z] 0.004% @ 1 kHz (20 kHz LPF); [MAIN OUTPUT] 0.004%
Dynamic Range [MIC/LINE/Hi-Z] 106 dB; [MAIN OUTPUT] 107 dB
Gain Range 54 dB
Power Requirement DC 5 V / 0.5 A
Power Consumption 2.5 W
Dimensions (W × H × D) 158 mm × 47 mm × 102 mm
Net Weight 450 g (1.0 lb)
Included Accessories Setup Guide, Cubase AI License Card, Steinberg Plus License Card, USB Type-C to Type-A Cable (1.5 m)
Operating Temperature 0°C to +40°C
Audio / System Outline
Input Channels 2 Mono + 1 Stereo Loopback
Mix Buses 1
Stereo Buses 1
FX Buses Not available
On-board DSP None

General Specifications
Analog Input	2 Mic/Line Combo (Input 2 supports Hi-Z)
Analog Output	2 TRS
USB TO HOST	1 (USB Type-C, 24-bit)
Phones	1 TRS (40 mW + 40 mW @ 40 Ohm)
DC Power	USB Type-C bus power / Type-C DC IN
MIDI	Not available
User Interface	Input Gain, Mute, +48V Phantom Power, Monitor Switch, Main Volume, Headphones Volume
Recording & Playback	2-track recording / 2-track playback (USB)
Sampling Frequency	192 kHz – 44.1 kHz
Frequency Response	+0.0 / -0.3 dB (20 Hz – 20 kHz)
Total Harmonic Distortion	[MIC/LINE/Hi-Z] 0.004% @ 1 kHz (20 kHz LPF); [MAIN OUTPUT] 0.004%
Dynamic Range	[MIC/LINE/Hi-Z] 106 dB; [MAIN OUTPUT] 107 dB
Gain Range	54 dB
Power Requirement	DC 5 V / 0.5 A
Power Consumption	2.5 W
Dimensions (W × H × D)	158 mm × 47 mm × 102 mm
Net Weight	450 g (1.0 lb)
Included Accessories	Setup Guide, Cubase AI License Card, Steinberg Plus License Card, USB Type-C to Type-A Cable (1.5 m)
Operating Temperature	0°C to +40°C
Audio / System Outline
Input Channels	2 Mono + 1 Stereo Loopback
Mix Buses	1
Stereo Buses	1
FX Buses	Not available
On-board DSP	None
