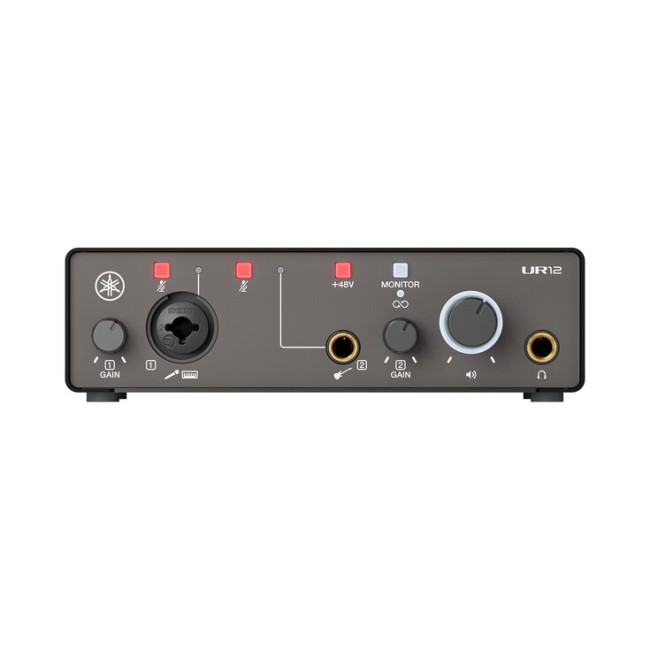

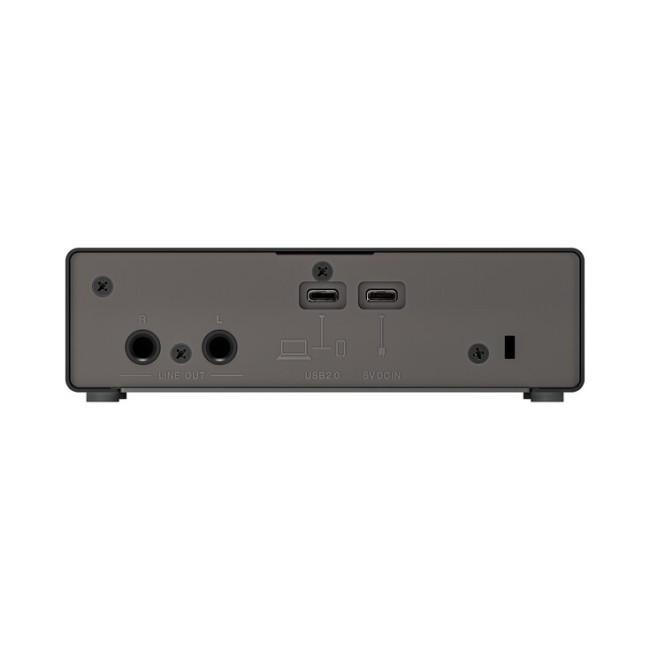

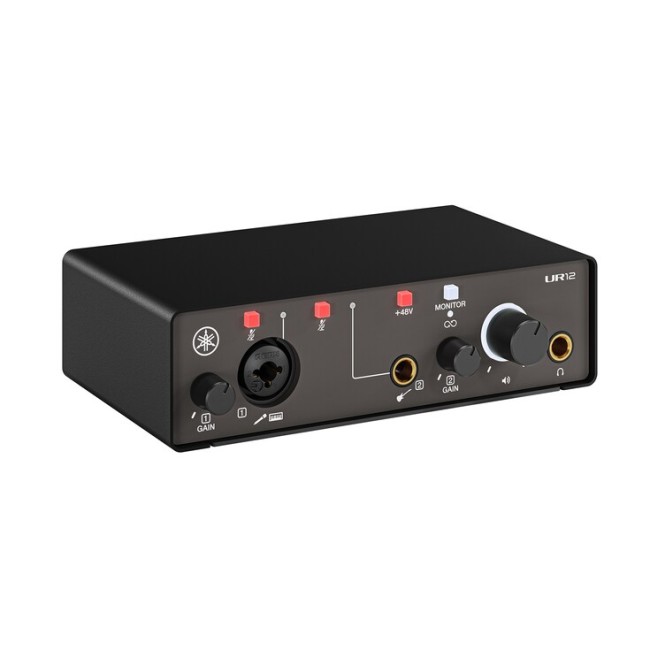

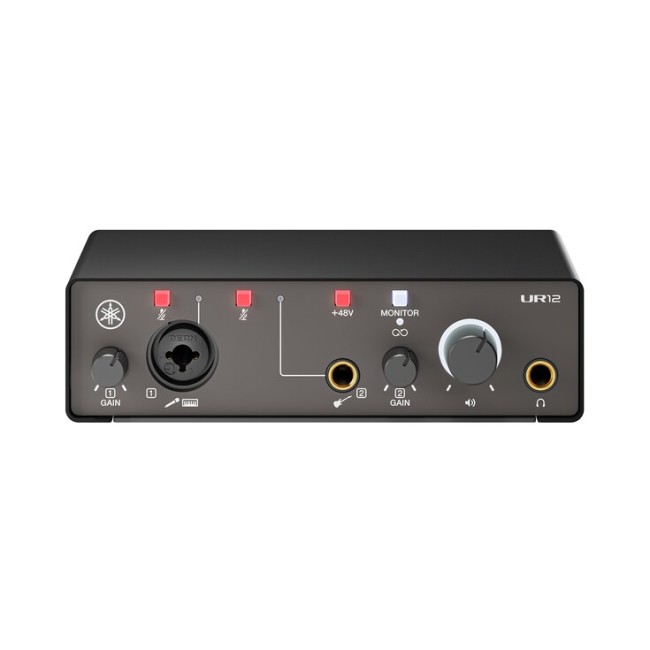

Steinberg UR12MK3 2-in/2-out USB-C Audio Interface - Black
- UR12MK3 is the perfect first audio interface for aspiring musicians, content creators, and podcasters ready to start making their own recordings.
- Brand:
- Product Code:UR12MK3B
2-in/2-out USB-C Audio Interface with 24-bit/192kHz support, 1 Combo/1 TRS inputs, Direct Monitoring, Loopback, and Steinberg software suite.
FEATURES
USB type-C Audio Interface with 24-bit / 192 kHz support
106 dB dynamic range (Input)
1 UR mic preamp with +48 V phantom power
1 Mic/Line Combo input with mute button, 1 Hi-Z input
2 TRS line outputs, 1 Headphones output that is controlled by the output volume
Input mixing channels: 2 mono + 1 stereo loopback
Busses: 1 MIX (Stereo)
Simple Loopback function facilitates effortless live streaming
Direct monitoring switch offers latency-free direct hardware monitoring of input signal
Compact, lightweight metal housing available in multiple color options - Black / White
Includes Cubase AI for PC, Cubasis LE DAW app for iPhone/iPad, Steinberg Plus and USB cable
Dimensions (W x H x D): 158 x 47 x 102 mm, (6.2" x 1.9" x 4.0")
Net weight: 450 g (1.0 lb)
| General Specifications | |
|---|---|
| Analog Input | 1 Mic/Line Combo, 1 TRS (Input 2 supports Hi-Z) |
| Analog Output | 2 TRS |
| USB TO HOST | 1 (USB Type-C, 24-bit) |
| Phones | 1 TRS (40 mW + 40 mW @ 40 Ohm) |
| DC Power | USB Type-C bus power / Type-C DC IN |
| User Interface | Input Gain, Mute, +48V Phantom Power, Monitor Switch, Volume (Main/Headphones) |
| Recording & Playback | 2-track recording / 2-track playback (USB) |
| Sampling Frequency | 192 kHz – 44.1 kHz |
| Frequency Response | +0.0 / -0.3 dB (20 Hz – 20 kHz) |
| Total Harmonic Distortion | [MIC/LINE/Hi-Z] 0.004% @ 1 kHz (20 kHz LPF); [MAIN OUTPUT] 0.004% @ 1 kHz |
| Dynamic Range | [MIC/LINE/Hi-Z] 106 dB; [MAIN OUTPUT] 107 dB |
| Gain Range | 54 dB (Hi-Z: 39.5 dB) |
| Power Requirement | DC 5 V / 0.5 A |
| Power Consumption | 2.5 W |
| Dimensions (W × H × D) | 158 mm × 47 mm × 102 mm |
| Net Weight | 450 g (1.0 lb) |
| Included Accessories | Setup Guide, Cubase AI License Card, Steinberg Plus License Card, USB Type-C to Type-A Cable (1.5 m) |
| Operating Temperature | 0°C to +40°C |
| Outline / Audio Capabilities | |
| Input Channels | 2 Mono + 1 Stereo Loopback |
| Mix Buses | 1 |
| Stereo Buses | 1 |
| FX Buses | - |
| On-board DSP | None |
