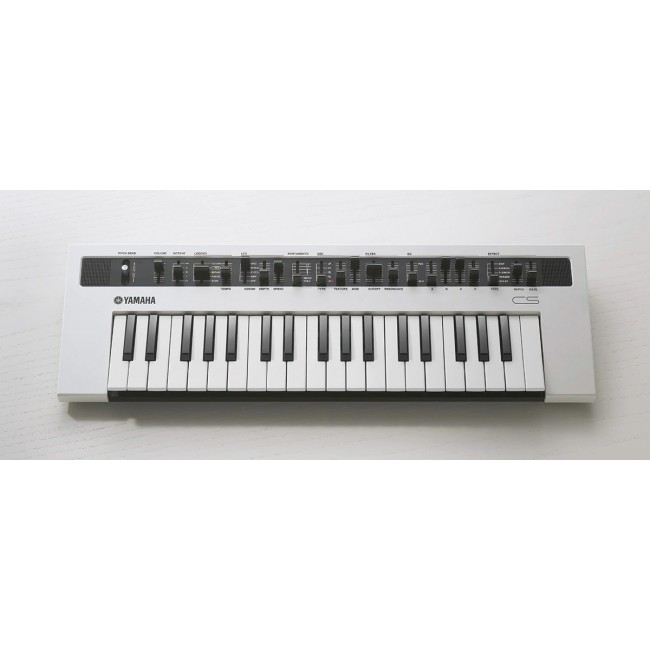

- 8-note polyphonic Virtual Analog synth
- Five unique oscillator types
- Powerful and intuitive control
Multi-sawMulti Saw produces a typical synthesizer sound on the basis of sawtooth waveforms.The term "Multi" stands for the possibility to layer multiple waveforms.
The [DEPTH] and [SPEED] sliders control modulation speed and intensity. In addition to typical LFO uses, you can create interesting sound effects using extreme settings. So if you want get back at your motorcycle-driving neighbors, try out the following example! (Some amplification may be required!)
EG/FEG slider determines how much the Envelope affects Amplitude or Filter. The"zero" position (AEG) means the Envelope only affects Amplitude. Asthe slider is moved upwards, the more influence the Envelope has on the Filter. In the middle position the effect on Filter and Amplitude is the same.
The envelope (EG) is set by the ADSR principle (Attack, Decay, Sustain, Release) with four sliders. Again, the range of values is from 0 to 127.
reface CS is equipped with a resonant low-pass Filter (18 db). The Cutoff slider adjusts the Filter from follow closed (0) to wide open (127) while the Resonance slider adds harmonics at the Cutoff point. The filter can even self-oscillate creating different kinds of synth sound.
The onboard effects processor features five effect types to add depth to your sound.
Use the Type slider to select the desired effect. Depth determines the effect's intensity (also known as "Wet/Dry"). The Phaser and Chorus/Flanger are powered by Virtual Circuitry Modeling (VCM) technology.
The reface CS Portamento slider has two functions. It controls the typical Portamento effect: switching reface to 8-note polyphonic to 1-note monophonic and controlling Portamento time in monophonic mode.
|Amplifiers||2 W x 2|
|Speakers||3 cm x 2|
|Power Consumption||6 W (When using PA-130 power adaptor)|
|Battery Life||Approximately 5 hours|
|Auto Power Off||Yes|
|Power Supply||Adaptors||PA-130 or an equivalent recommended by Yamaha|
|Batteries||Six “AA” size batteries or Ni-MH rechargeable batteries|
|Included||AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale|
|Number of types||5 OSC types|
|Effects||Distortion, VCM Chorus/Flanger, VCM Phaser, Delay|
|Number of voices||-|
|Dimensions||Width||530 mm (20 7/8")|
|Height||60 mm (2 3/8")|
|Depth||175 mm (6 7/8")|
|Weight||1.9 kg (4 lbs, 3 oz) (not including batteries)|
|Number of Keys||37 keys|
|Type||HQ mini (High-Quality mini)|
|Engine||AN (Analog Physical Modeling)|
|DC IN||DC IN (12 V) jack|
|Headphones||PHONES (6.3 mm, stereo phone jack)|
|MIDI||MIDI (mini-DIN IN/OUT)|
|AUX IN||AUX IN (3.5 mm, mini stereo phone jack)|
|OUT PUT||L/MONO, R (6.3 mm, TS phone jack, unbalanced)|
|USB TO HOST||USB (TO HOST)|
|Pedal||Type||FOOT CONTROLLER: FC7 (optional) (to adjust the volume)|
