Powersoft Unica 4L 12K4 4ch Installation Amplifier

Unmatched performance and flexibility. It combines high-quality amplification with advanced DSP capabilities, providing users with exceptional sound reproduction and control. Unica enables audio professionals to optimize sound quality and elevate the overall audio experience by leveraging its state-of-the-art technology and intuitive user interface.

FEATURES

Powersoft 3rd generation amplification technology

State-of-the-art processing and amplification architecture ensure maximum audio performance and reliability, allowing for advanced processing, networking, and monitoring capabilities to meet audio systems’ growing needs and complexity.

Networking

Three configurable 1Gb ports allow daisy-chain as well as Dante-redundant network topologies, via two operating modes: Switched and Split-Redundant. The Split-Redundant mode allows one port dedicated to control and two ports for Dante/AES67, allowing network traffic separation. Lastly, a dedicated network-security webpage allows advanced configuration to meet stringent network-security requirements.

PoE input

The PoE input allows keeping the network ports and amplifier logic circuitry powered in case of mains loss, ensuring a short wake-up time when power is restored. Unica also allows monitoring of the loudspeakers and amplifier outputs circuitry without mains, when powered by PoE++.

Power Sharing

Each output can deliver up to twice the rated power when asymmetrically loaded, ensuring high versatility in system design and specifying phase. Additionally, each output can drive both 70/100V and low-impedance loudspeakers down to two ohms seamlessly, without configuring the output mode. Output channels can be bridged and feature extensive loudspeaker diagnostic tools.

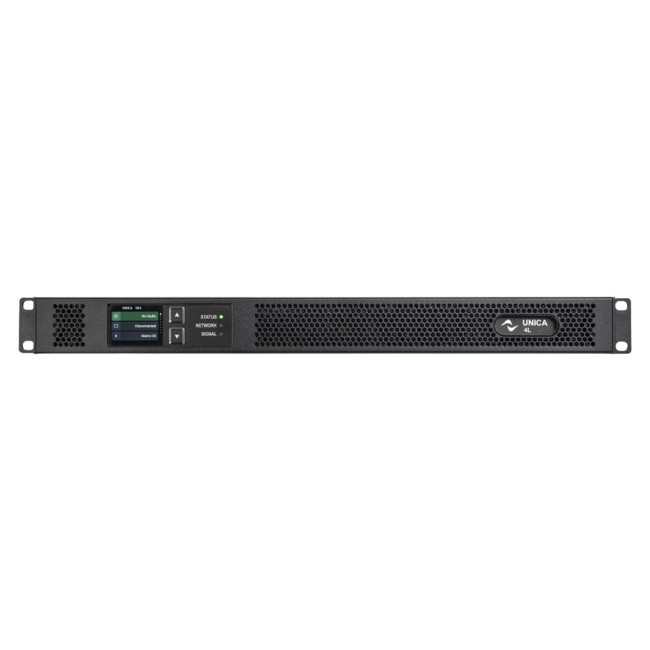

Front panel display

Access to the amplifier’s status and general information is granted via the front panel LCD display, which is useful for troubleshooting, monitoring, and maintenance purposes.

ArmoníaPlus software

All models include network connectivity and onboard processing. It is possible to adjust each amplifier parameter, load speaker presets, and tune complex systems easily thanks to Powersoft ArmoníaPlus software.

Eco Mode

Automatic energy-saving functionality allows turning off each output channel independently when audio is not passing, minimizing energy consumption. Channels are individually and instantaneously turned on as soon as a signal is detected, without impacting audio performances.

Easy Swap

Game-changing functionality allows replacing an amplifier quickly, without product-specific knowledge, and independent of system size and complexity. This is possible thanks to Unica’s ability to store backups on a local USB flash memory drive and restore the backup to a replacement amplifier by simply inserting the USB drive and following the procedure on the front-panel display.

MyUniverso Cloud

The cloud-native connectivity allows remote monitoring of the amplifier status from any device, anywhere in the world, via Powersoft’s Cloud Platform MyUniverso.

Maritime Compliance

Unica is certified for use in naval applications when used with a purposely designed maritime kit; the rigorous testing that Unica underwent to earn the IEC60945 and IACS-E10 certifications is a testament to the build quality and reliability of this versatile platform.

Dolby Atmos Connect

Streamlined device integration with Dolby Atmos Connect Patching allows users to input basic information from Dolby processors, seamlessly managed by ArmoníaPlus. This enables direct amplifier setup without external devices or software.

Dynamic Music Distribution Support

Unica seamlessly integrates DMD features, workflow, and performance across the entire platform.
