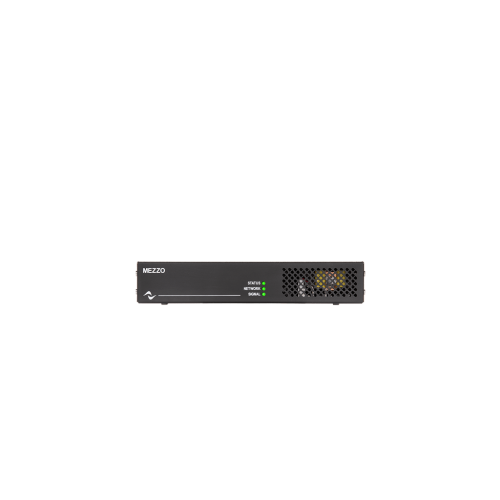

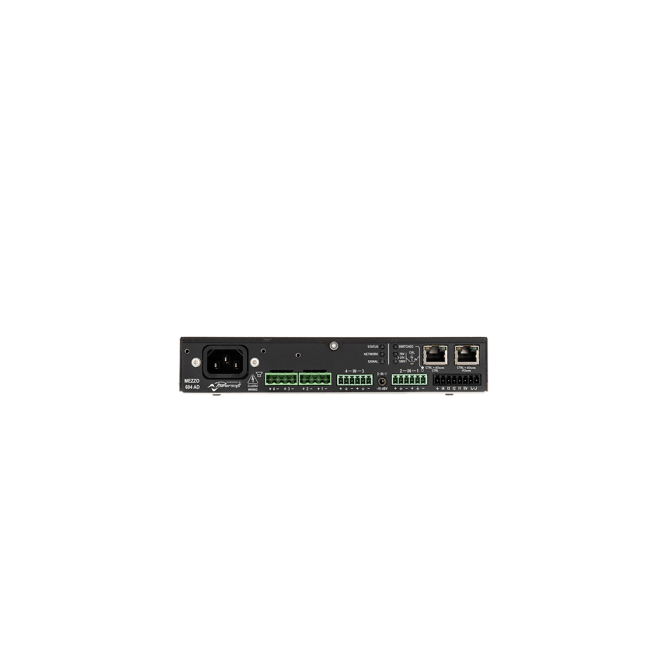

Powersoft MEZZO 604 AD 600W/4-channel Compact Amplifier with DSP and Dante
- Mezzo 604 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size.
- Brand:
- Product Code:PF000614
Mezzo 604 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit.
MyPowersoft services are available for this product.
Features
Multiple mounting options
Auto-Setup
Power-sharing
Full remote control via 3rd party controls
| General | |
|---|---|
| Output Power (Single Channel Mode) | 150 W @ 2 Ω, 150 W @ 4 Ω, 150 W @ 8 Ω |
| Maximum Power-Sharing Capacity per Channel | 400 W @ 4 Ω, 600 W @ 8 Ω |
| Maximum Unclipped Output Voltage | 142 Vpeak |
| Maximum Output Current | 15.6 Apeak |
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100-240 V ±10%, 50-60 Hz |
| Operating Voltage | 90 V – 264 V |
| Power Consumption / Current Draw (Idle) | 115 V: 16 W – 0.275 A, 230 V: 17 W – 0.21 A |
| Power Consumption / Current Draw (1/8 of max output @ 4 Ω) | 115 V: 130 W – 1.17 A, 230 V: 129 W – 0.67 A |
| Thermal | |
| Thermal Dissipation (Idle) | 115 V: 53 BTU/h, 230 V: 59 BTU/h |
| Thermal Dissipation (1/8 of max output @ 4 Ω) | 115 V: 126 BTU/h, 230 V: 139 BTU/h |
