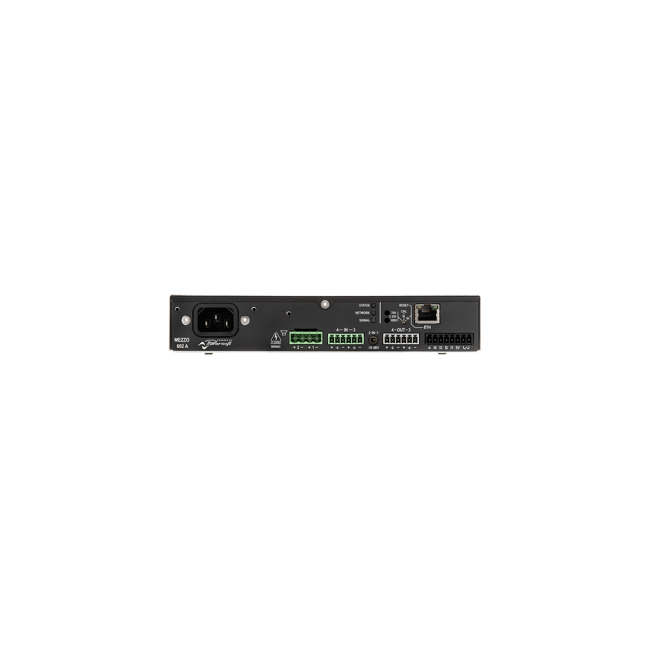

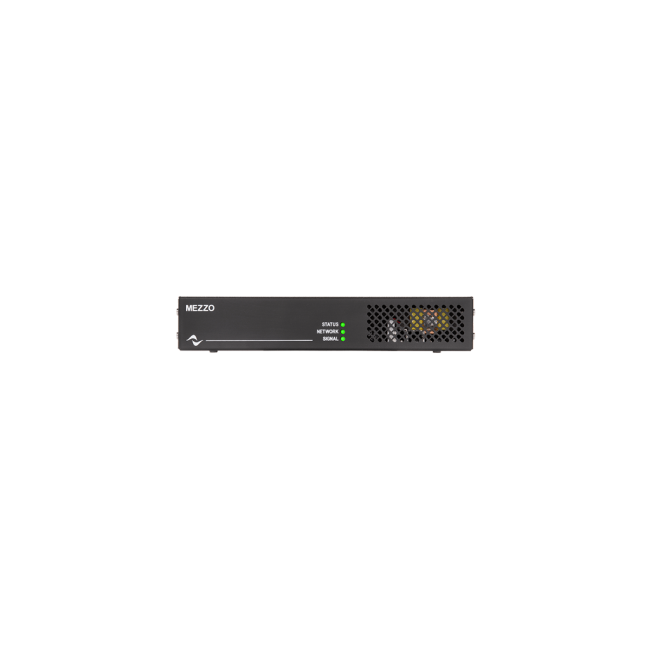

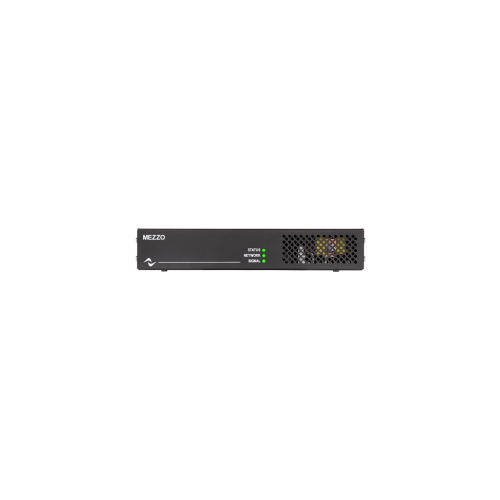

Powersoft MEZZO 602 A 600W/2-channel Compact Amplifier with DSP
- Mezzo 602 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size.
- Brand:
- Product Code:PF000611
Mezzo 602 A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions of Mezzo also feature 2 line-level outputs, further extending routing options.
MyPowersoft services are available for this product.
FEATURES
- Multiple mounting options
- Auto-Setup
- Power-sharing
- Full remote control via 3rd party controls
General | |
|---|---|
| Output Power (Single Channel Mode) | 200 W @ 2 Ω, 300 W @ 4 Ω, 300 W @ 8 Ω |
| Maximum Power-Sharing Capacity per Channel | 400 W @ 4 Ω, 600 W @ 8 Ω |
Max Output Voltage / Current | |
| Maximum Unclipped Output Voltage | 142 Vpeak |
| Maximum Output Current | 15.6 Apeak |
AC Main Power | |
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100–240 V ±10%, 50–60 Hz |
| Operating Voltage | 90 V – 264 V |
Power Consumption / Current Draw | |
| Idle | 115 V: 11 W – 0.22 A 230 V: 12 W – 0.17 A |
| 1/8 of Max Output Power @ 4 Ω | 115 V: 125 W – 1.12 A 230 V: 22 W – 0.62 A |
Thermal | |
| Thermal Dissipation (Idle) | 115 V: 37 BTU/h 230 V: 41 BTU/h |
| Thermal Dissipation (1/8 of Max Output Power @ 4 Ω) | 115 V: 109 BTU/h 230 V: 118 BTU/h |
