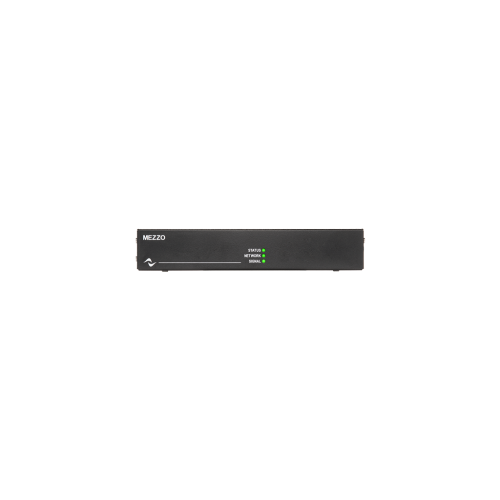

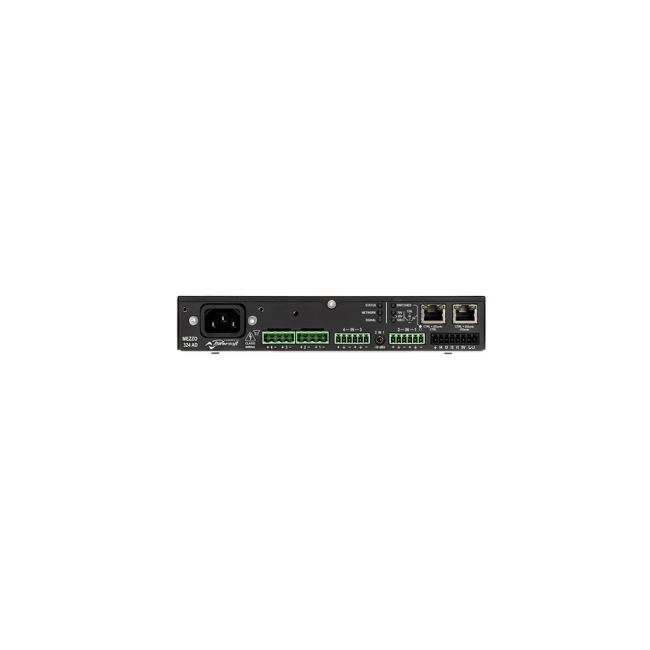

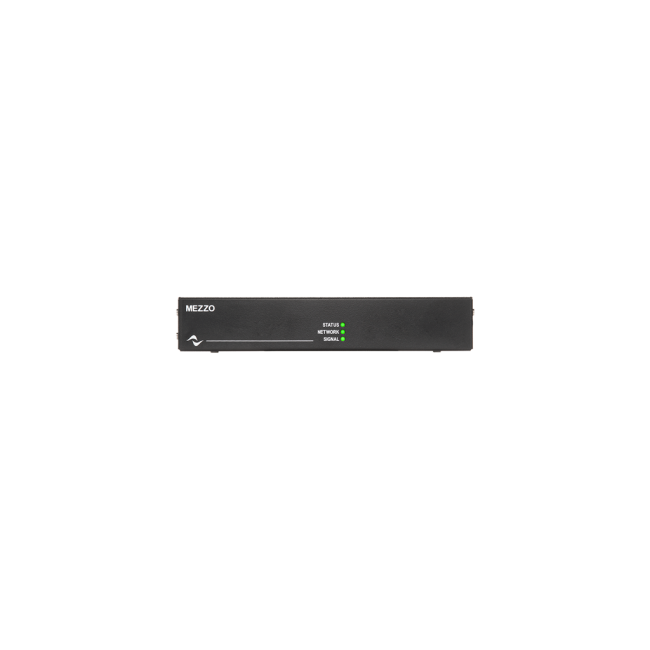

Powersoft MEZZO 324 AD 320W/4-channel Compact Amplifier with DSP and Dante
- Mezzo 324 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size.
- Brand:
- Product Code:PF000616
Mezzo 324 AD heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “AD” versions of Mezzo offer all the remote control and monitoring functions of the “A” versions, further extending networking capabilities with Dante and AES67. The small form factor allows it to be mounted anywhere thanks to the included mounting kit, the 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes.
MyPowersoft services are available for this product.
Features
Multiple mounting options
Auto-Setup
Power-sharing
Full remote control via 3rd party controls
| General | |
|---|---|
| Output Power per Channel | 80 W @ 2 Ω, 80 W @ 4 Ω, 80 W @ 8 Ω |
| Maximum Power-Sharing Capacity per Channel | 320 W @ 4 Ω, 320 W @ 8 Ω |
| Max Output Voltage / Current | |
| Maximum Unclipped Output Voltage | 142 Vpeak |
| Maximum Output Current | 15.6 Apeak |
| AC Main Power | |
| Power Supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal Power Requirement | 100-240 V ±10%, 50-60 Hz |
| Operating Voltage | 90 V – 264 V |
| Power Consumption / Current Draw | |
| Idle | 115 V: 16 W – 0.27 A, 230 V: 77 W – 0.72 A |
| 1/8 of Max Output Power @ 4 Ω | 115 V: 77 W – 0.72 A, 230 V: 80 W – 0.45 A |
| Thermal Dissipation | |
| Idle | 115 V: 54 BTU/h, 230 V: 59 BTU/h |
| 1/8 of Max Output Power @ 4 Ω | 115 V: 93 BTU/h, 230 V: 108 BTU/h |
