Optocore Festival Box - Grand

  • 12 SFP transport platform for multiple signal formats. Designed and produced to offer maximum FLEXIBILITY in signal transport in live and install environment.
  • Brand:
  • Product Code:FESTIVALBOXGRAND
Contact for Price
  • 12 SFP I/O modules
  • Multimode fiber transport
  • PLUG-AND-PLAY
  • Supports console redundancy
  • Fiber AUX passive ports
  • Dual power supply with automatic switchover

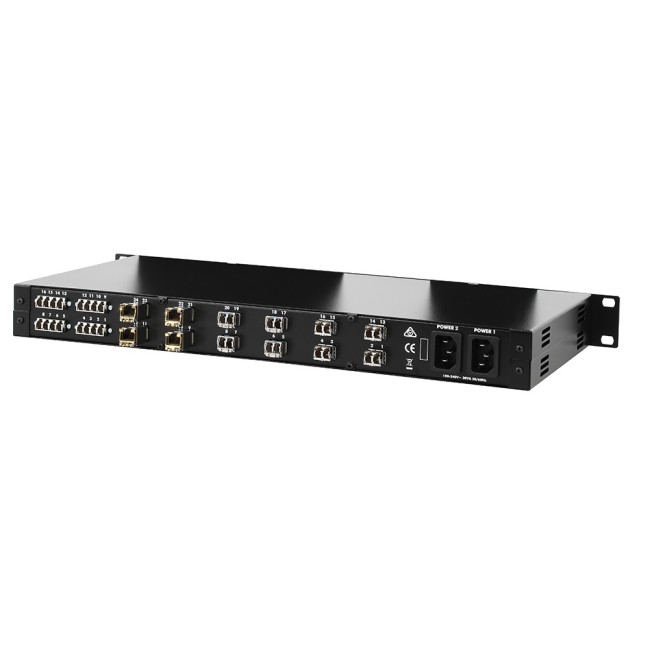

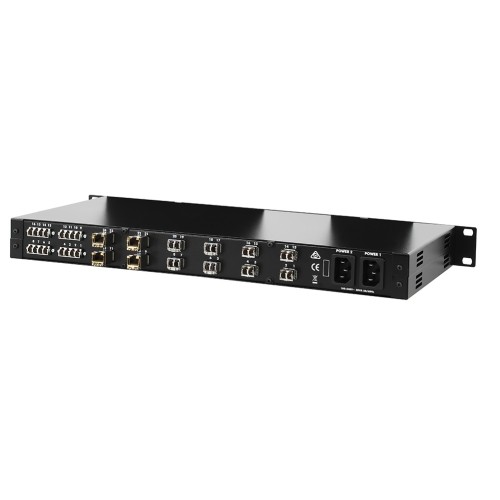

The FESTIVAL BOX - Grand is a point to point system converter device, which can be used together with any format available on the market that can be connected through SFP modules. The unit provides twelve I/O SFP modules. Each SFP port can be equipped with any flavor interface e.g. Multimode, Singlemode, MADI, Ethernet RJ45 etc. compliant to MSA standard, Festival box will transport it in a transparent way.

The FESTIVAL BOX - Grand supports console redundancy.

The FESTIVAL BOX is the perfect main hub unit for a wide range of professional audio devices with MADI inputs and outputs such as digital consoles, DAW, playback devices and professional broadcast units, IP protocols, Optocore or any fiber based audio system. The huge amount of protocols by one FESTIVAL BOX makes it the ideal and the most cost effective interface for digital console systems as well as a perfect central device offering mostly uncountable flexibility.

FESTIVAL BOX features a built-in redundant power supply with an automatic switchover.

FESTIVAL BOX is a 1RU device, capable of housing up to 12 SFP modules that are multiplexed and/or de-multiplexed using a built in Coarse Wave Division Multiplexing (CWDM) in to a pair of duplex multimode fiber ports.

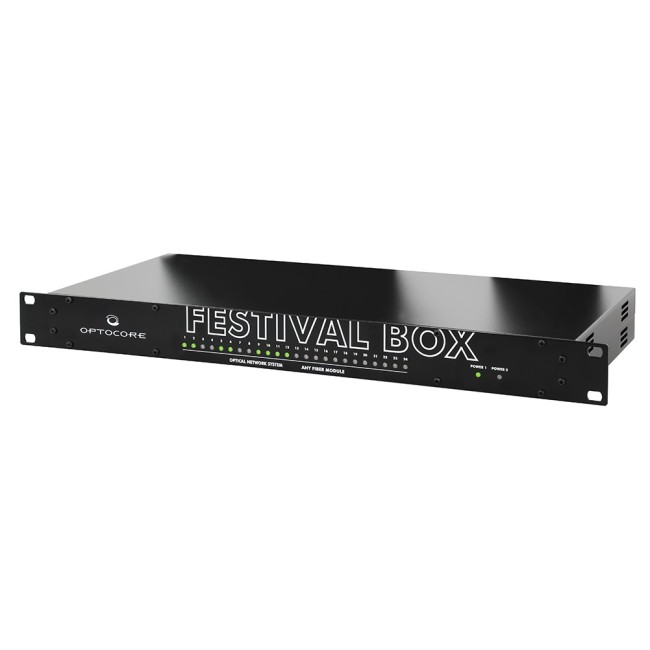

The front panel provides 24 LEDs indicating signal presence on each port as well as LEDs for status of the power supplies.

FESTIVAL BOX requires no user configuration or operation.

SFP PortsMSA Compliant
No. of ports   12
Data rate   up to 2Gbps
Optical ConnectionComplies with 21 CFR 1040.10 and 1040.11
Power supply2 (optional) independent power supplies with function check and automatic switch-over
Type Switch-mode, universal input
Mains voltage 100...240VAC, 50/60Hz, 25VA-typ, 32VA-peak
Dimensions 1 RU / 19”
W x H x D 483 x 44 x 200mm 19.0 x 1.73 x 7.87 inch
Weight 2.83 kg 6.24 lbs
