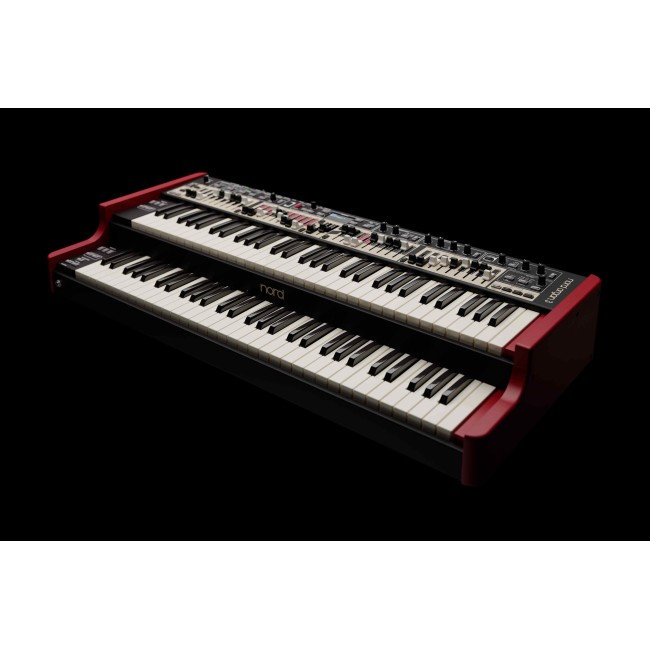

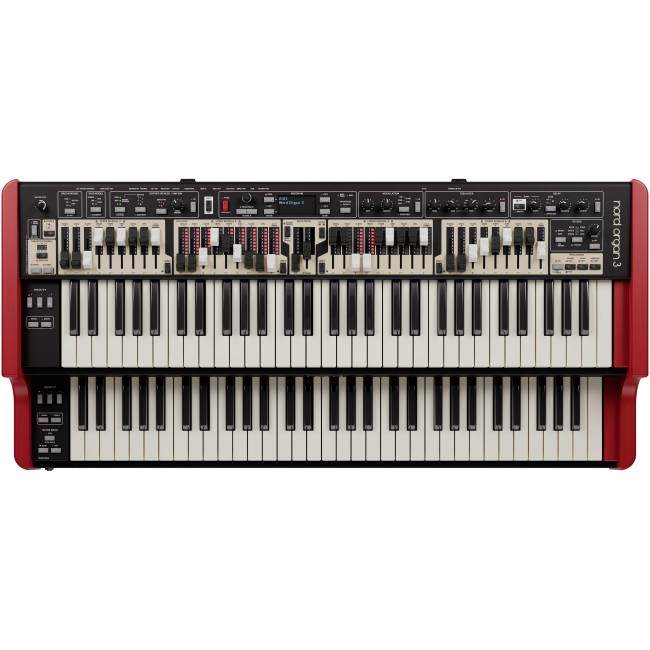

The acclaimed Nord Organ is back - reborn and reimagined as the all-new Nord Organ 3. The latest generation of our Organ series featuring massive improvements to sound, design and performance. With a greatly enhanced organ engine, added modulation effects and a new exceptional-sounding rotary speaker emulation, the Nord Organ 3 offers an unsurpassed level of detail and realism.
FEATURES
General

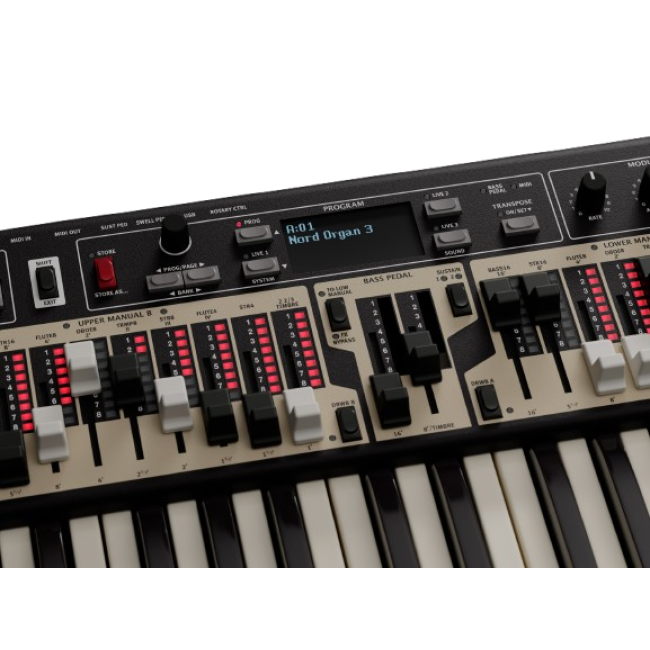

New panel design with OLED display
Triple sensor keybeds
LED indicators for preset drawbar settings
Per program Transpose function
Bass to lower manual option
Aux output with routing options for Bass/Pedal drawbars and more
11-pin Leslie connector
High level output
B3 Organ
Enhanced B3 organ model
New and improved Chorus/Vibrato
Transistor and Pipe Organs
Improved Farfisa and Vox organ models
Pipe Organ emulation
Soft B3
Bass Models
Authentic B3, Vox and Farfisa Bass
Synth Bass options based on classic pedal synthesizers
Rotary and Amp modeling
Brand new Rotary Speaker emulation
Multiple options for microphone placement
Fixed Stop Angle feature
3 Drive Type options
New British amp and speaker emulation

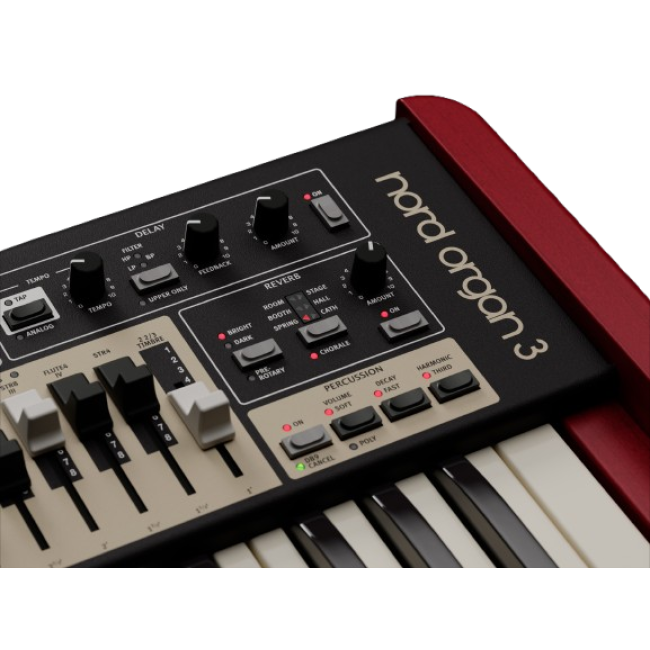

Effects
Brand new Spring reverb
Expanded Reverb section with Pre-Rotary option
Delay with new Analog mode and Feedback filters
New Modulation effects including Phaser, Tremolo, Ring Mod, Flanger and Chorus.
Equalizer with sweepable middle band
| General | |
| Master Level Control | OLED display |
| Transpose | Transpose button |
| Drawbars | 2 Drawbar sets per manual |
| LED Indicators | 1 LED indicator set per manual |
| Pedal Drawbars | Available |
| Aux Output | For optional Bass/Pedal routing |
| Program Locations | 400 |
| Live Programs | 3 |
| Program/Preset Buttons | 1 Program and 2 Preset buttons per manual |
| Drawbar Selectors | Drawbar A and B selector buttons per manual |
| Organ Section | |
| Models | B3, Soft B3, Vox, Farfisa and Pipe models with full polyphony |
| Organ Bass Models | B3, Vox, Farfisa and Pipe |
| Synth Bass Models | B3 synth, Trek and Taurus |
| Percussion Controls | Poly and DB9 Cancel options |
| Vibrato/Chorus | With B3 Deep mode |
| Rotary Speaker / Amp Section | |
| Rotary Speaker | Brand new Rotary Speaker emulation |
| Microphone Options | Multiple placement options |
| Drive Types | 3 Drive Types with Drive amount control |
| Amp Models | JC, Brit and Twin amp and speaker emulations |
| Effects | |
| Modulation | Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls |
| Equalizer | 3-band Equalizer with sweepable middle band |
| Delay | Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only mode |
| Reverb | Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control |
| Keyboard | |
| Keyboard Type | 2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard |

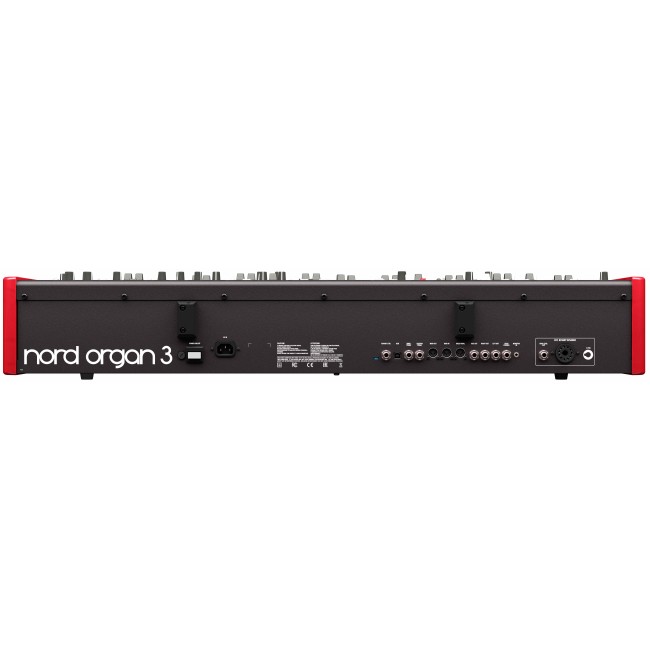

| Connections | |
| Headphone Output | Stereo Headphone Output - ¼", 6,35 mm stereo jack |
| Line Outputs | 2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced |
| Leslie Connector | 11-pin Leslie standard connector |
| High Level Out | ¼", 6,35 mm jack |
| Aux Out | ¼", 6,35 mm jack |
| Monitor Input | 1/8", 3,5 mm stereo jack |
| Sustain Pedal Input | ¼", 6,35 mm jack |
| Rotor Control Input | ¼", 6,35 mm jack, Half-Moon Switch or momentary pedal |
| Swell Pedal Input | ¼", 6,35 mm TRS stereo jack |
| MIDI In | 5 pin DIN connector |
| MIDI Out | 5 pin DIN connector |
| Bass Pedal MIDI In | 5 pin DIN connector |
| USB | Type B connector |
| Power | IEC C14 power connector |
| Dimensions | |
| Size | 985mm (38.8”) x 165mm (6.5”) x 446mm (17.6”) |
| Weight | |
| Weight | 17kg (37.5lbs) |
| Included Accessories | |
| Accessories | User Manual, Power cord |
