Product Code:01P12U

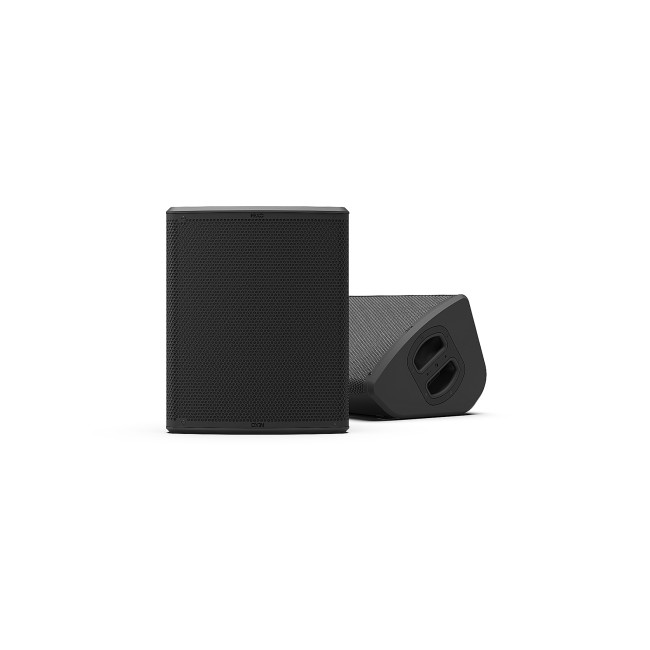

Nexo P12-U 10 Inch Passive Touring Speaker

  • The P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration.
  • Brand:
*Out of Stock
  • AED 11,993.84

  • -
  • +
*Rate inclusive of VAT. Delivery time: 2 - 4 days

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P12 employs a purpose-designed 12″ LF Neodymium driver and 3″ diaphragm HF driver in a coaxial configuration.  The compact cabinet measures just 534mm x 432mm x 314mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

KEY FEATURES

· Compact, low-profile, curvilinear enclosure

· 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration

· Variable HF directivity

· Switchable Active/Passive modes

· 140dB peak SPL (Active Mode)

· Threaded inserts on the back and on both sides for connection of mounting accessories

· Stand fitting on both sides

· 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides

· Touring, installation and TIS versions

Frequency Response (+6 dB)60 Hz - 20 kHz
Sensitivity 1W@1m107 dB
Peak SPL Level (1m)138dB Peak (Passive mode) / 140dB Peak (Active mode)
Recommended Amplifiers800 to 1250 Watts / 8Ω
HF Dispersion (according to horns)60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°
Crossover Frequency60 Hz, 85 Hz, 120 Hz
Nominal ImpedanceActive mode (8Ω LF, 8Ω HF), Passive mode: 8Ω
Recommended PowerActive: (800 to 1270 W LF + 400 to 630 W HF) / Passive: 800 to 1270 W
ComponentsLF: 1x12" - 8Ω; HF : 1x3" - 8Ω - Neodymium driver
Number of ways (Touring/TIS versions)2 ways passive (2+/2- P12) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Number of ways (Install version)2 ways passives
Connectors (Touring/TIS versions)4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version)1 x Cable gland with 2 cores cable
Rigging points1 x universal accessory fit on each side + 1 x on the bottom
MaterialCustom made bent plywood of baltic birch and poplar
FinishBlack or White structural paint
Front Finish (Touring version)Steel front grille + back mesh
Front Finish (Install/TIS versions)Acoustic fabric fitted front gril
Weight : Net20 kg (44 lbs)
Height x Width x Depth534mm x 432mm x 314 mm (21.0” x 17.0” x 12.3”)
Operating Temperature Range0°C - 40°C (32°F - 104°F)
Storage Temperature Range-20°C - 60°C (-4°F - 140°F)
System Operation
Recommended Powering Solution NXAMP4X2MK2: Up to 2 x P12 per channel
Optional powering solutionDTDcontroller + DTDAMP4x0.7 : 1 x P12 per channel
NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P12 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 4 x P12 per channel
