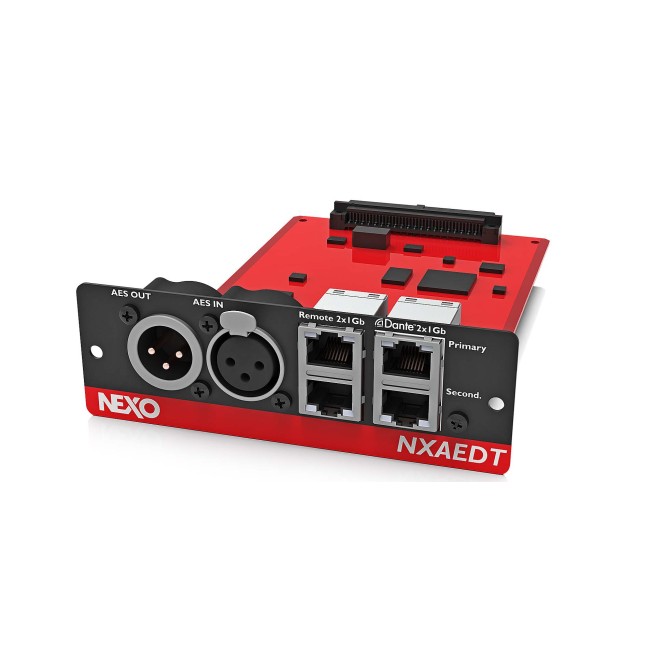

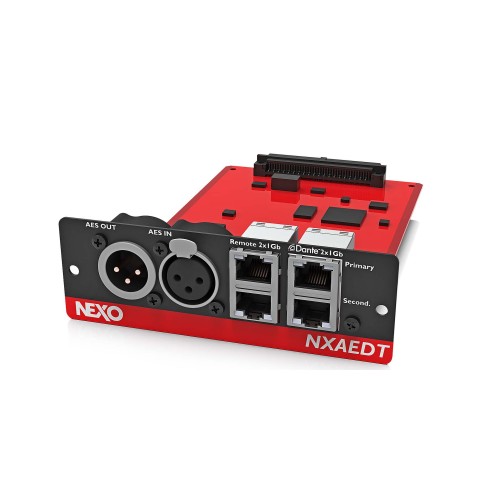

Inputs extension card for NXAMPmk2
Not
compatible with first-generation NXAMPmk1
KEY FEATURES
· Adds both AES/EBU and DanteTM inputs to NXAMPmk2 Powered Controllers
· 4 channels of DanteTM inputs with Switched/Redundant mode and 44.1
kHz to 96 kHz digital audio support
· 2 channels of AES/EBU inputs with buffered outputs and 44.1 kHz to
96 kHz digital audio support
· Highly flexible 4 ports gigabit switch with 4 different
configuration modes
· Remote control ports configurable as separate network or from the DanteTM network
| DIGITAL AUDIO 1 INPUT FORMAT | |
| Digital Audio type | DanteTM networks |
| Media type | Standard TCP/IP over 1minimum 100 Mb / recommended 1 Gb ethernet network |
| Number of channels | 4 channels from up to 4 different DanteTM devices |
| Resolution | 24 bits |
| Sample Rate | 44.1, 48, 88.2 or 96 kHz |
| Latency | 0.25 ms to 5.0 ms (typical 1 ms) |
| DIGITAL AUDIO 2 INPUT FORMAT | |
| Digital Audio type | AES/EBU |
| Media type | 110 Ohms 3 wires twisted pair with XLR connector |
| Number of channels | 2 |
| Resolution | 24 bits |
| Sample Rate | 44.1, 48, 88.2 or 96 kHz |
| Latency | <0.07 ms |
| REMOTE CONTROL FORMAT | |
| Network format | Standard TCP/IP |
| Device addressing | Automatic, based on IP address with Zeroconf |
| FRONT PANEL FEATURES | |
| Digital audio 1 input/link connectors | 4x shielded 1 Gb RJ45 connectors |
| Digital audio 2 input/link connectors | 1x XLR-F and 1x XLR-M buffered output with fail safe relay |
| LEDs on network ports | Link/Activity (Green) and Gigabit (Orange) |
| GENERAL SPECIFICATIONS | |
| Height x Width x Depth (Net) | 40mm x 120mm x 170mm (1.6” x 4.7” x 6.7”) |
| Height x Width x Depth (Gross) | 56mm x 166mm x 225mm (2.2” x 6..5“ x 8.9”) |
| Weight (Net) | 160 g |
| Weight (Gross) | 300 g |
| Operating temperature range | 0° C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20° C - 60° C (-4° F - 140° F) |
| SYSTEM OPERATION | |
| Compatible Host | NXAMPmk2 Powered TD Controllers |
