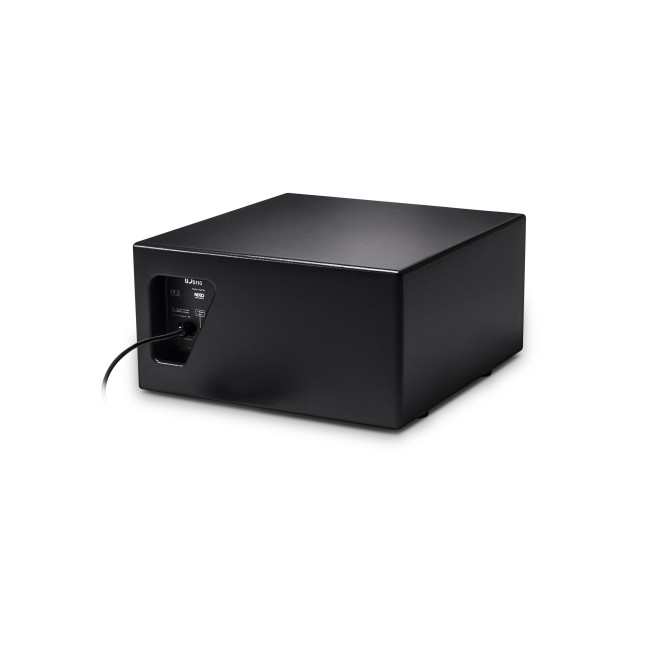

Compact
and powerful, the 1×10″ sub measures just 285mm high x 525mm wide x 550mm deep,
offering punchy sub bass performance in the smallest form factor. The install
version has no handles and hardware, and features captive cable connectivity.
| Frequency Range | 43 Hz - 130Hz (+/- 3dB) |
| Sensitivity (1W / 1m) | 97 dB SPL Nominal |
| Peak SPL Level (1m) | 125dB Peak |
| Crossover Frequencies | 85Hz / 120Hz |
| Nominal Impedance | 4Ω |
| Recommended Amplification | 400W to 650W |
| Components | 1x10" Long excursion |
| Height x Width x Depth | 285 x 525 x 550mm (11.2" x 20.7" x 21.7") |
| Weight | 21kg (47lbs) |
| Material | Finnish birch plywood |
| Finish | Black structured paint |
| Rigging | 4x M6 inserts, M20 flange |
