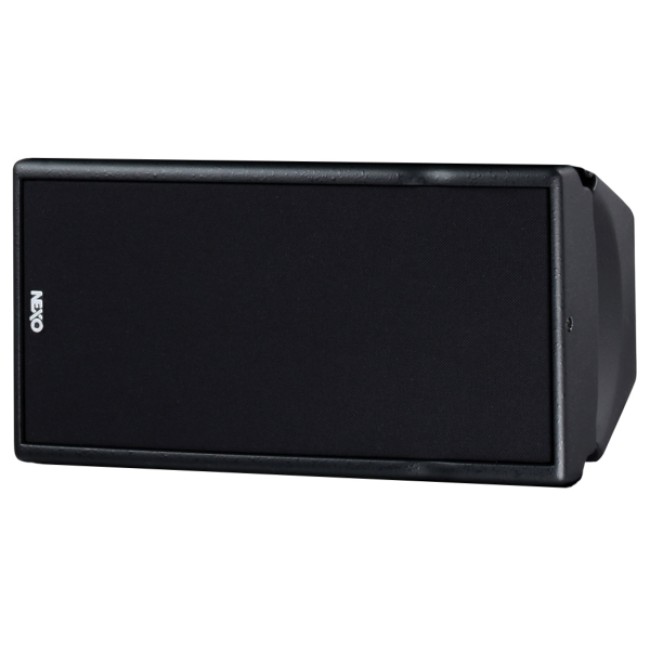

Nexo GEO M620 6.5-Inch Full Range Passive Speaker
- GEO M620 is a full-range unit for stand-alone, curved array or line array application.
- Product Code:01GEOM620
The GEO M620 is a full-range unit for stand-alone, curved array or line array application. Extremely compact in size (191 x 373 x 260 mm), the M620 module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5” LF driver and a 1” throat driver on a BEA/FEA optimised HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage,0° to 20° splay when arrayed. Using NEXO’s HRW patented waveguide for optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.
Features
| Components | LF: 1 x 6.5” 8Ω long excursion driver |
| HF: 1 x 1” throat driver on a BEA/FEA optimised HR Wavesource | |
| Height x Width x Depth | 191mm x 373mm x 260mm |
| Weight: Net | 9.7kg |
| Connectors | 2 x NL4 Speakon 4 poles |
| Construction | Lightweight Polyurethane composite |
| Handles | Side Handles |
| Front Finish | Acoustic Fabric fitted front grille |
| Frequency Response | 80Hz – 19kHz ±3dB |
| Usable Range @-6dB | 75Hz – 20kHz |
| Sensitivity 1W @ 1m | 95dB SPL Nominal |
| Nominal Peak SPL @ 1m | 127dB |
| HF Dispersion | 80˚ or 120˚ Horizontal (CCD) |
| Crossover Frequencies | LF-HF: 2kHz Passive |
| Nominal Impedance | 8Ω |
| Recommended Amplifiers | 450W per box (3 boxes max in parallel on one channel amplifier) |
