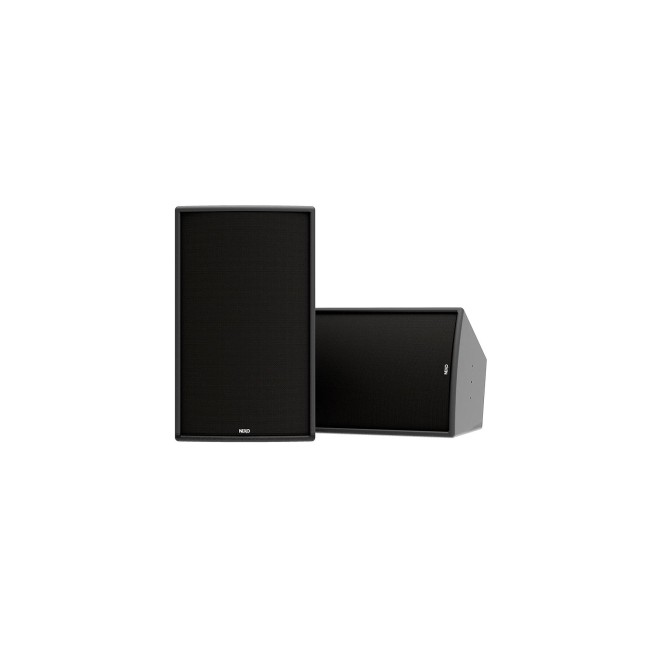

Nexo EPS10 10 Inch Speaker - Black
- The ePS10 combines a high excursion 10-inch LF driver with a 1.4- inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood.
- Brand:
- Product Code:EPS10
Measuring
531mm high x 316mm wide x 285mm deep and weighing 14.8Kg, the ePS10 combines a
high excursion 10-inch LF driver with a 1.4- inch voice coil HF driver in a
trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch
plywood. Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz,
the ePS10 features a rotatable asymmetric horn, convenient rigging points on
the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch
screw terminal blocks with an IP cover.
KEY FEATURES
· High power (130 dB peak)
point source loudspeaker for fixed installation
· Lightweight (14.8.kg /
32.6lbs) design
· Robust 15 mm Birch plywood
enclosure
· NEXO’s Asymmetrical
Dispersion Constant Directivity horn design (”PS” Horn), rotatable
· IP55 protection level
· Comprehensive range of
accessories for deploying in a wide variety of fixed installation applications
· Black finish with custom RAL colours available
| Frequency Response @-6 dB | 70 Hz to 20 kHz |
| Sensitivity 1W@1m | 101 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° Asymmetrical |
| Crossover Frequency | 70 Hz, 120 Hz |
| Nominal Impedance | 8 Ω |
| Recommended Power | 500 to 800 Watts / 8 Ohms |
| Number of ways | 2 ways passive |
| LF Component | 10" 8 Ohms long excursion neodymium driver |
| HF Component | 1.4" diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn |
| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 1.5 mm² to 3.3 mm² (AWG 12 to 15) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 11 mm |
| Rigging points | 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 531mm x 316mm x 285mm (20.9" x 12.4" x 11.2") |
| Weight: Net | 14.8 kg (32.6 lbs) |
| Operating temperature range | 0°C - 40 °C (32° F - 104° F) |
| Storage temperature range | -20 °C - 60 °C (-4 ° F - 140° F) |
| IP Rating | IP55 |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: 1 x ePS10 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS10 per channel |
| NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS10 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS10 per channel |
