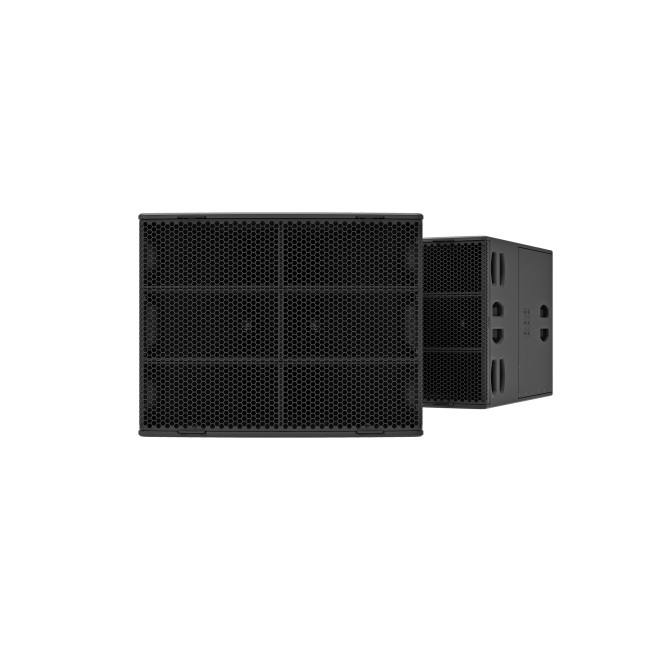

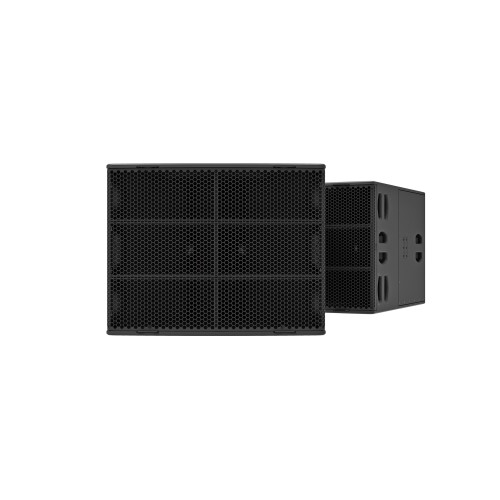

Nexo B218 Alpha+ Series Bass module
- The B218 Bass module uses two high-force 18″ drivers coupled in a common cavity loaded with a symmetric bass horn, computer optimised to guarantee ultra-low distortion, even at very high levels.
- Brand:
- Product Code:01B218
The B218 Bass module uses two high-force 18″ drivers coupled in a common cavity loaded with a symmetric bass horn, computer optimised to guarantee ultra-low distortion, even at very high levels.
Using a 15 mm custom made bent plywood shell, with Poplar veneer for the inside layers and Birch for the outside, the B218 weighs in at 77kg/170lbs and achieves a peak SPL of 146dB. The low-frequency horn ensures maximum radiating surface and high efficiency.
Four large comfortable handles on each side plus one at the back of the unit ensure easy manipulation of the B218 in any situation, particularly when used with its dedicated wheel-board and cover.
Key Features
- Extremely Powerful (146 dB peak) bass module of the Alpha+ system
- Compact footprint using custom made 15 mm bent plywood of Birch and Poplar
- Rounded shape to prevent damage in the corners and match Alpha+ system design
- Low-frequency horn ensure maximum radiating surface and high efficiency
SPECIFICATIONS
With NEXO Processing
Frequency Response @-6 dB - 75 Hz to 160 Hz
Peak SPL@1m - 146 dB Peak
Operating Voltage - 65 Vrms (180 Vpeak)
Crossover Frequency - 75 Hz
Nominal Impedance - 4 Ohms
Components - 2 x Neodymium 18” 8 Ohms
Connectors - 2 x NL4, 4 poles connectors
Rigging points - 2 x universal accessory fit (on each side) + 1 x M20 thread for Pole Stand on top
Material - Custom made bent plywood of baltic birch and poplar
Finish - Black or White structural paint
Front Finish - Magnelis® Steel front grille
Height x Width x Depth - 594mm x 755mm x 905 mm (23.4” x 29.7” x 35.6”)
Weight: Net - 77 kg (170 lbs)
Operating temperature range - 0°C - 40 °C (32° F - 104° F)
Storage temperature range - -20 °C - 60 °C (-4 ° F - 140° F)
System Operation
Powering solution - NXAMP4x4mk2 Powered TDcontroller: Up to 2 x B218 per channel
Optional powering solution - NXAMP4x1mk2 Powered TDcontroller (Bridged): Up to 2 x B218 per bridged channels
