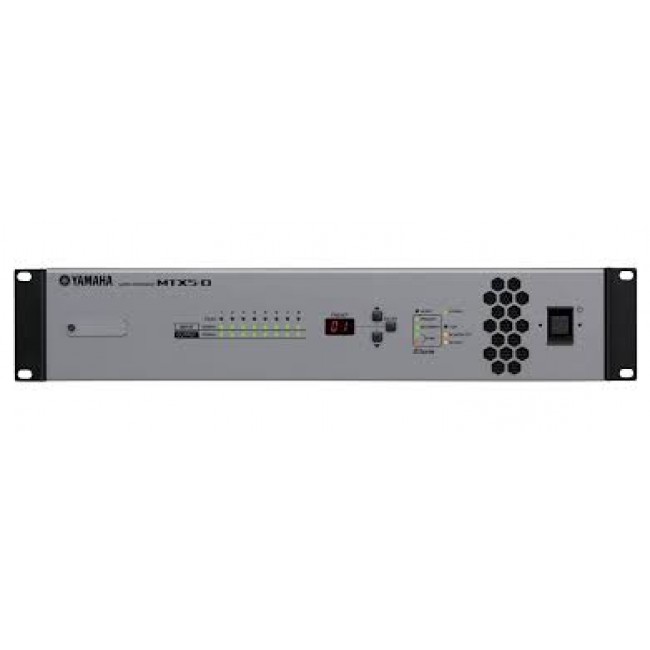

34 x 16 Matrix Mixer / Signal Processor
- 8ch mic/line input and 8ch analog output
- 16ch YDIF digital I/O
- 16ch Dante digital I/O
- 1x MY Card slot
- SD Card Slot for playback
| MTX5-D | ||
|---|---|---|
| Mixing capability | Mixing channels | Mixing Channel : 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix |
| Input channel functions | Mono CH : 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (available in ch 1-8) | |
| Output channel functions | Room Delay, Room EQ, Speaker Processor, X-Over (1way,2way), Delay, 6-band PEQ, Limiter | |
| I/O | Phantom power | +48V |
| Internal processing | Priority Ducking, Ambient Noise Compensator | |
| Sampling frequency rate | Internal | 48kHz/ 44.1kHz |
| Signal delay | Less than 3.0ms (AD-DA @48kHz) | |
| Total harmonic distortion | Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB) | |
| Frequency response | 20Hz to 20kHz, +0.5dB, -1.5dB | |
| Dynamic range | 107dB (Gain:-6dB) | |
| Hum & noise level | Equivalent input noise | -60dBu (Gain：+66dB), -83dBu (Gain：-6dB) |
| Crosstalk | -100dB | |
| Heat dissipation | 55.9kcal/h max | |
| Power requirements | AC100V-240V 50Hz/60Hz | |
| Power consumption | 65W | |
| Dimensions | W | 480mm (18.9") |
| H | 88mm (3.4") | |
| D | 351mm (13.9") | |
| Net weight | 6.3kg (13.9lbs) | |
| Others | Memory bank : PRESET 50 | |
